Search › Model › CM22V

CM22V

Suzuki ALTO-A-STAR-CELERIO · 1991 · 3,064 parts · 141 categories

3,064 items

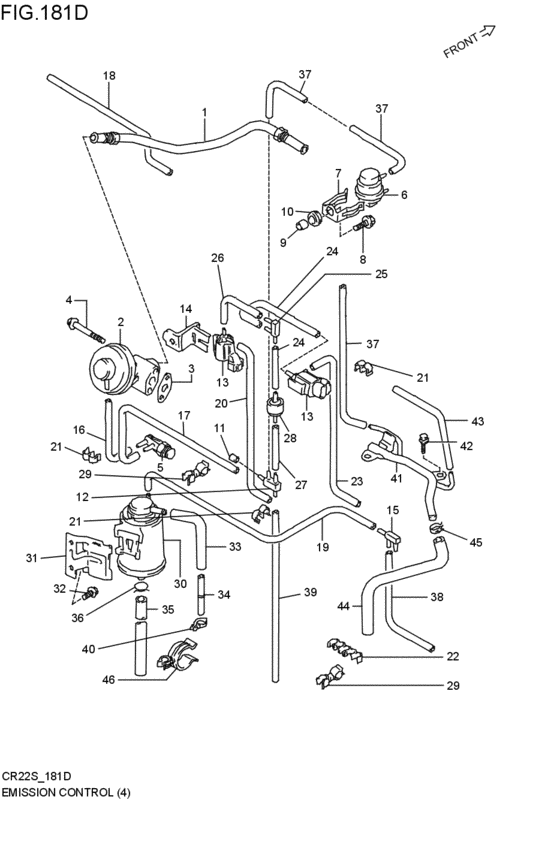

emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01) 51

#	OEM	Part name
1	18530-72B00-000	PIPE,EGR
2	18520-60F01-000	VALVE,EGR
3	18529-85200-000	GASKET,EGR VALVE
4	01550-06503-000	Bolt
4	01550-0650B-000	Bolt
4	01550-0650A-000	Bolt - Bolt (6x50)
5	18122-80C00-000	バルブ,BVS
5	18122-80C01-000	VALVE,BVS
6	18570-84000-000	SWITCH,VACUUM
7	18569-63D00-000	CLAMP,VACUUM SWITCH
8	09116-06004-000	ボルト,6X16
8	09116-06024-000	BOLT(6X16)
9	09180-06140-000	Spacer, guide
9	09180-06309-000	SPACER(6.5X10X5) - Spacer, guide
10	09308-10001-000	New Genuine Part
10	09308-10004-000	GROMMET
11	09250-04003-000	PLUG(OD:8) - Plug (od:8)
11	07130-0510B-000	Bolt - Bolt, sensor
12	09367-04003-000	JOINT,4 WAY
13	95160-70B00-000	VSV,IDLE UP
14	18571-60D00-000	BRACKET,SOLENOID VALVE
15	18565-60D00-000	3WAY
16	09358-35754-600	ホース,3.5X7.5X600
16	09355-35754-601	HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve)
16	09355-35006-601	Hose(3.5X7.5X601)
19	18564-63D00-000	HOSE,VACUUM
21	09408-00033-000	CLAMP
22	09408-00116-000	CLIP
25	09367-04009-000	JOINT - Joint, 3 way
28	95569-78040-000	VALVE,CHECK - Valve, check
29	09408-00067-000	CLIP
30	18560-72B20-000	CANISTER
31	18570-72B21-000	Bracket,canister
32	01550-06103-000	Bolt, front
32	01550-0610B-000	Bolt
32	01550-0610A-000	Bolt
33	09359-54111-600	HOSE(5.4X11.4X600) - Hose, canister & carb
34	89155-70B00-000	Joint,evapo hose
35	09355-70125-600	HOSE(7X12X600) - Hose, fuel (pump to separator)
35	44421-12FR0-000	HOSE
36	09401-12301-000	CLIP
40	09408-00153-000	Сlamp
40	09403-12409-000	CLAMP
41	18340-62D00-000	パイプ,キャニスタ
42	01550-06123-000	Bolt
42	01550-0612B-000	Bolt - Bolt, clamp
42	01550-0612A-000	Bolt
44	18563-60D00-000	HOSE,CANISTER VENT
45	09401-11407-000	CLIP
45	09401-11415-000	CLIP
46	09408-00063-000	CLAMP

OEM	Part name	Category
01550-06103-000	Bolt, front	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
01550-0610A-000	Bolt	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
01550-0610B-000	Bolt	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
01550-06123-000	Bolt	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
01550-0612A-000	Bolt	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
01550-0612B-000	Bolt - Bolt, clamp	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
01550-06503-000	Bolt	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
01550-0650A-000	Bolt - Bolt (6x50)	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
01550-0650B-000	Bolt	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
07130-0510B-000	Bolt - Bolt, sensor	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09116-06004-000	ボルト,6X16	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09116-06024-000	BOLT(6X16)	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09180-06140-000	Spacer, guide	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09180-06309-000	SPACER(6.5X10X5) - Spacer, guide	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09250-04003-000	PLUG(OD:8) - Plug (od:8)	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09308-10001-000	New Genuine Part	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09308-10004-000	GROMMET	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09355-35006-601	Hose(3.5X7.5X601)	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09355-35754-601	HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve)	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09355-70125-600	HOSE(7X12X600) - Hose, fuel (pump to separator)	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09358-35754-600	ホース,3.5X7.5X600	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09359-54111-600	HOSE(5.4X11.4X600) - Hose, canister & carb	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09367-04003-000	JOINT,4 WAY	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09367-04009-000	JOINT - Joint, 3 way	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09401-11407-000	CLIP	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09401-11415-000	CLIP	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09401-12301-000	CLIP	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09403-12409-000	CLAMP	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09408-00033-000	CLAMP	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09408-00063-000	CLAMP	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09408-00067-000	CLIP	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09408-00116-000	CLIP	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
09408-00153-000	Сlamp	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
18122-80C00-000	バルブ,BVS	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
18122-80C01-000	VALVE,BVS	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
18340-62D00-000	パイプ,キャニスタ	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
18520-60F01-000	VALVE,EGR	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
18529-85200-000	GASKET,EGR VALVE	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
18530-72B00-000	PIPE,EGR	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
18560-72B20-000	CANISTER	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
18563-60D00-000	HOSE,CANISTER VENT	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
18564-63D00-000	HOSE,VACUUM	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
18565-60D00-000	3WAY	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
18569-63D00-000	CLAMP,VACUUM SWITCH	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
18570-72B21-000	Bracket,canister	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
18570-84000-000	SWITCH,VACUUM	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
18571-60D00-000	BRACKET,SOLENOID VALVE	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
44421-12FR0-000	HOSE	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
89155-70B00-000	Joint,evapo hose	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
95160-70B00-000	VSV,IDLE UP	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
95569-78040-000	VALVE,CHECK - Valve, check	emission control (V:2WD:3AT:(GF,GE,SK),V:4WD:(GE,GF); 1991-08-01~1994-11-01)
