CM20V

Toyota LITE-TOWNACE · 1982 · 3,865 parts · 160 categories

3,865 items

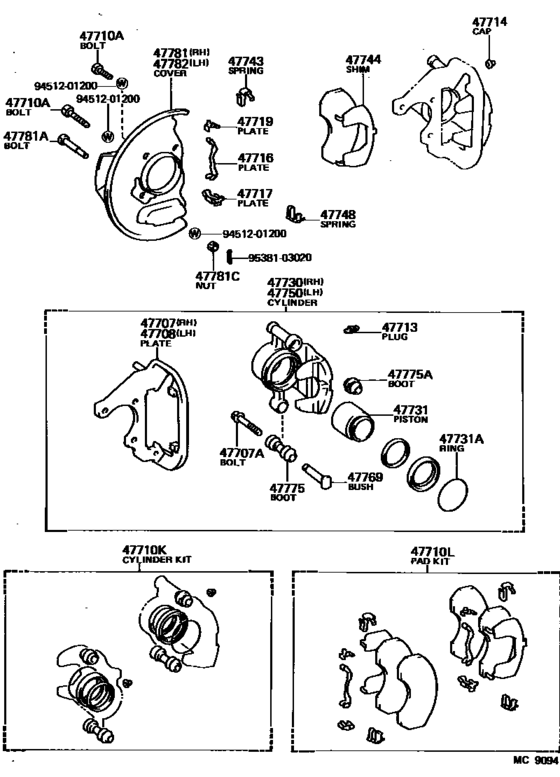

Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- )) 36

#	OEM	Part name
47707	47707-28010	Plate Sub-Assy, Disc Brake Torque, Front Rh
47707	47707-27040	Plate Sub-Assy, Disc Brake Torque, Front Rh
47707	90119-08384	Bolt, Hexagon(For Front Disc Brake Torque Plate)
47708	47708-28010	Plate Sub-Assy, Disc Brake Torque, Front Lh
47708	47708-27040	Plate Sub-Assy, Disc Brake Torque, Front Lh
47710	90101-12010	Bolt, Hexagon(For Front Disc Brake Caliper)
47710	90101-12030	Bolt, Hexagon(For Front Disc Brake Caliper)
47710	90101-12077	Bolt, Hexagon(For Front Disc Brake Caliper)
47710	04479-14070	Cylinder Kit, Disc Brake, Front
47710	04491-28020	Pad Kit, Disc Brake, Front
47710	04465-28290	Pad Kit, Disc Brake, Front
47713	47547-20010	Plug, Bleeder(For Release Cylinder)
47714	31478-30010	Bleeder Plug Cap
47716	47716-28010	Plate, Pad Support, No.1(For Front Disc Brake)
47717	47717-14050	Plate, Pad Support, No.2(For Front Disc Brake)
47717	47718-14090	Plate, Pad Support, No.2(For Front Disc Brake)
47719	47736-14030	Plate, Front Disc Brake Pad Guide
47730	47730-28011	Cylinder Assy, Front Disc Brake, Rh
47730	47730-28012	Cylinder Assy, Front Disc Brake, Rh
47731	47731-14090	Piston, Front Disc Brake
47731	90522-69002	Ring, Set(For Front Disc Brake Piston)
47743	47743-14040	Spring, Anti-Rattle, No.2(For Front Disc Brake)
47744	47744-28010	Shim, Anti-Squeal, No.1(For Front Disc Brake)
47744	47744-28020	Shim, Anti-Squeal, No.1(For Front Disc Brake)
47748	47748-14050	Spring, Anti-Rattle, No.2(For Rear Disc Brake)
47750	47750-28011	Cylinder Assy, Disc Brake, Lh
47750	47750-28012	Cylinder Assy, Disc Brake, Lh
47769	47769-28010	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47775	47775-14010	Boot, Bush Dust(For Front Disc Brake)
47775	47776-14010	Boot, Pin
47781	47781-28030	Cover, Disc Brake Dust, Front Rh
47781	90102-12001	Bolt(For Backing Plate To Steering Knuckle Arm Setting)
47781	94145-71200	Nut(For Backing Plate To Steering Knuckle Arm Setting)
47782	47782-28030	Cover, Disc Brake Dust, Front Lh
9451201200	94512-01200	Washer
9538103020	95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)

OEM	Part name	Category
04465-28290	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
04479-14070	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
04491-28020	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
31478-30010	Bleeder Plug Cap	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47547-20010	Plug, Bleeder(For Release Cylinder)	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47707-27040	Plate Sub-Assy, Disc Brake Torque, Front Rh	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47707-28010	Plate Sub-Assy, Disc Brake Torque, Front Rh	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47708-27040	Plate Sub-Assy, Disc Brake Torque, Front Lh	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47708-28010	Plate Sub-Assy, Disc Brake Torque, Front Lh	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47716-28010	Plate, Pad Support, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47717-14050	Plate, Pad Support, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47718-14090	Plate, Pad Support, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47730-28011	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47730-28012	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47731-14090	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47736-14030	Plate, Front Disc Brake Pad Guide	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47743-14040	Spring, Anti-Rattle, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47744-28010	Shim, Anti-Squeal, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47744-28020	Shim, Anti-Squeal, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47748-14050	Spring, Anti-Rattle, No.2(For Rear Disc Brake)	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47750-28011	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47750-28012	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47769-28010	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47775-14010	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47776-14010	Boot, Pin	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47781-28030	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
47782-28030	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
90101-12010	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
90101-12030	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
90101-12077	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
90102-12001	Bolt(For Backing Plate To Steering Knuckle Arm Setting)	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
90119-08384	Bolt, Hexagon(For Front Disc Brake Torque Plate)	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
90522-69002	Ring, Set(For Front Disc Brake Piston)	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
94145-71200	Nut(For Backing Plate To Steering Knuckle Arm Setting)	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
94512-01200	Washer	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)	Front Disc Brake Caliper & Dust Cover ([10.1982 - ] (8210- ))
