Search › Model › CLR30

CLR30

Toyota PREVIA-TARAGO · 2001 · 5,130 parts · 244 categories

5,130 items

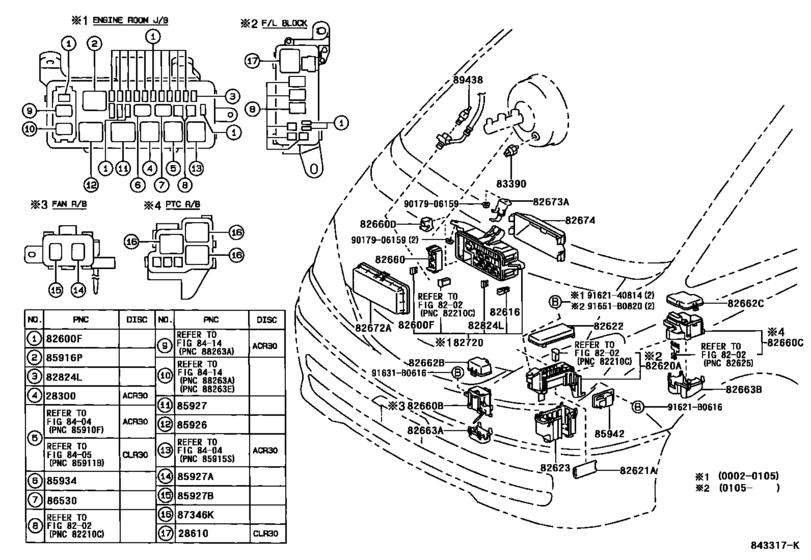

Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- )) 42

#	OEM	Part name
28610	28610-27010	Relay Assy, Glow Plug
82600	90982-09007	Fusible Link
82600	90982-09008	Fusible Link
82600	90982-09009	Fusible Link
82600	90982-09010	Fusible Link
82600	90982-09011	Fusible Link
82600	90982-09012	Fusible Link
82600	90982-09013	Fusible Link
82616	82616-20010	Puller, Fuse
82620	82620-28230	Block Assy, Fusible Link
82621	82621-28080	Cover, Fusible Link
82622	82622-28030	Cover, Fusible Link, Upper
82623	82623-28010	Cover, Fusible Link, Lower
82660	82660-28200	Block Assy, Relay
82660	82660-28210	Block Assy, Relay
82662	82662-28010	Cover, Relay Block, Upper, No.2
82662	82662-28020	Cover, Relay Block, Upper, No.1
82663	82663-28010	Cover, Relay Block, Lower, No.2
82663	82663-28020	Cover, Relay Block, Lower, No.3
82672	82672-28040	Cover, Junction Block
82672	82672-28090	Cover, Junction Block
82673	82673-28010	Bracket, Junction Block
82673	82673-28040	Bracket, Junction Block
82674	82674-28010	Cover, Junction Block Lower
82720	82720-28040	Block Assy, Engine Room Junction
82720	82720-28060	Block Assy, Engine Room Junction
82824	82824-20140	Connector, Wiring Harness
83390	83390-30100	Switch Assy, Vacuum Warning
85916	90987-02016	Relay Assy, Starter
85916	90987-02025	Relay
85927	90987-02012	Relay, Ignition, No.1
85927	90987-04004	Relay, Starter Cut
85927	90987-02027	Relay
85934	90987-02022	Relay, Starter Cut
85934	90987-02028	Relay, Water Pump
91621	91621-B0616	Bolt
91631	91631-B0616	BOLT WWASHER
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
9017906159	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9017906159	90080-17210	Nut, Rear Wiper Link Pivot, No.1
9162140814	91621-40814	Bolt

OEM	Part name	Category
28610-27010	Relay Assy, Glow Plug	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
82616-20010	Puller, Fuse	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
82620-28230	Block Assy, Fusible Link	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
82621-28080	Cover, Fusible Link	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
82622-28030	Cover, Fusible Link, Upper	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
82623-28010	Cover, Fusible Link, Lower	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
82660-28200	Block Assy, Relay	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
82660-28210	Block Assy, Relay	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
82662-28010	Cover, Relay Block, Upper, No.2	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
82662-28020	Cover, Relay Block, Upper, No.1	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
82663-28010	Cover, Relay Block, Lower, No.2	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
82663-28020	Cover, Relay Block, Lower, No.3	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
82672-28040	Cover, Junction Block	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
82672-28090	Cover, Junction Block	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
82673-28010	Bracket, Junction Block	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
82673-28040	Bracket, Junction Block	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
82674-28010	Cover, Junction Block Lower	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
82720-28040	Block Assy, Engine Room Junction	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
82720-28060	Block Assy, Engine Room Junction	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
82824-20140	Connector, Wiring Harness	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
83390-30100	Switch Assy, Vacuum Warning	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
90080-11347	New Genuine Part	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
90080-17210	Nut, Rear Wiper Link Pivot, No.1	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
90982-09007	Fusible Link	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
90982-09008	Fusible Link	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
90982-09009	Fusible Link	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
90982-09010	Fusible Link	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
90982-09011	Fusible Link	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
90982-09012	Fusible Link	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
90982-09013	Fusible Link	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
90987-02012	Relay, Ignition, No.1	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
90987-02016	Relay Assy, Starter	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
90987-02022	Relay, Starter Cut	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
90987-02025	Relay	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
90987-02027	Relay	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
90987-02028	Relay, Water Pump	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
90987-04004	Relay, Starter Cut	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
91621-40814	Bolt	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
91621-B0616	Bolt	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
91631-B0616	BOLT WWASHER	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))
91651-B0820	Bolt, Radiator Side Support Plate	Switch & Relay & Computer ([02.2000 - ] ENGINE ROOM (0002- ))

Source: Public OEM parts-catalog data
Variants: 1 / 12
Category: 244
Collected: 2026-08-04
