CLR30

Toyota PREVIA-TARAGO · 2001 · 5,130 parts · 244 categories

← Back to categories

5,130 items

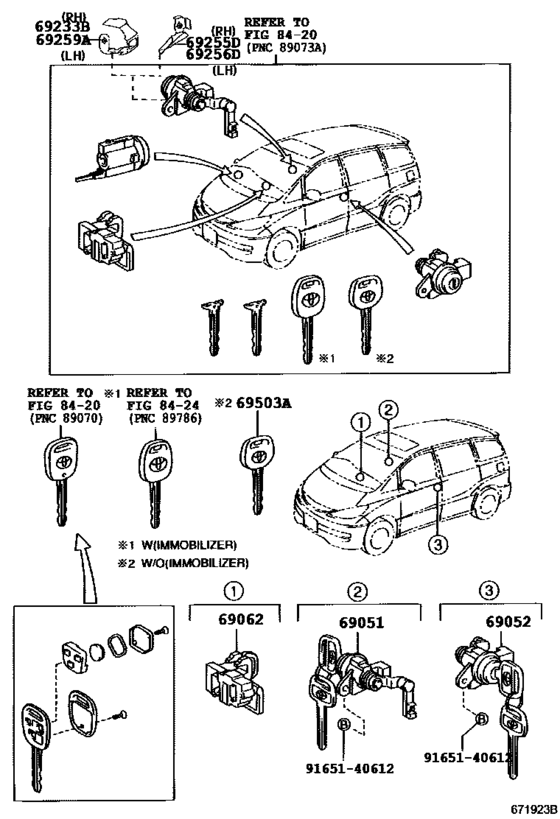

Lock Cylinder Set ([02.2000 - 04.2003] (0002-0304)) 13

#	OEM	Part name
69051	69051-28240	Cylinder & Key Set, Door Lock, Rh
69051	69051-28270	Cylinder & Key Set, Door Lock, Rh
69052	69052-28230	Cylinder & Key Set, Door Lock, Lh
69052	69052-28260	Cylinder & Key Set, Door Lock, Lh
69062	69056-28060	Cylinder & Key Set, Glove Compartment Lock
69062	69056-28070	Cylinder & Key Set, Glove Compartment Lock
69233	69233-28010	Retainer, Door Outside Handle, Rh
69255	69255-28020	Protector, Door Outside Handle
69256	69256-28010	Protector, Door Outside Handle, Rh
69259	69259-28010	Retainer, Door Outside Handle, Lh
69503	90999-00199	Key, Blank
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part

OEM	Part name	Category
69051-28240	Cylinder & Key Set, Door Lock, Rh	Lock Cylinder Set ([02.2000 - 04.2003] (0002-0304))
69051-28270	Cylinder & Key Set, Door Lock, Rh	Lock Cylinder Set ([02.2000 - 04.2003] (0002-0304))
69052-28230	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([02.2000 - 04.2003] (0002-0304))
69052-28260	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([02.2000 - 04.2003] (0002-0304))
69056-28060	Cylinder & Key Set, Glove Compartment Lock	Lock Cylinder Set ([02.2000 - 04.2003] (0002-0304))
69056-28070	Cylinder & Key Set, Glove Compartment Lock	Lock Cylinder Set ([02.2000 - 04.2003] (0002-0304))
69233-28010	Retainer, Door Outside Handle, Rh	Lock Cylinder Set ([02.2000 - 04.2003] (0002-0304))
69255-28020	Protector, Door Outside Handle	Lock Cylinder Set ([02.2000 - 04.2003] (0002-0304))
69256-28010	Protector, Door Outside Handle, Rh	Lock Cylinder Set ([02.2000 - 04.2003] (0002-0304))
69259-28010	Retainer, Door Outside Handle, Lh	Lock Cylinder Set ([02.2000 - 04.2003] (0002-0304))
90080-11225	New Genuine Part	Lock Cylinder Set ([02.2000 - 04.2003] (0002-0304))
90999-00199	Key, Blank	Lock Cylinder Set ([02.2000 - 04.2003] (0002-0304))
91651-40612	BOLT	Lock Cylinder Set ([02.2000 - 04.2003] (0002-0304))
