Search › Model › CK11
CK11

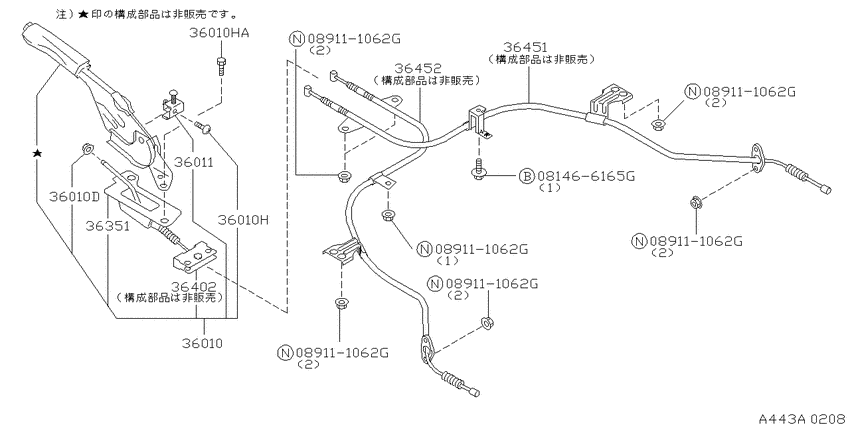

Parking brake control (1997-05-01 ~ ; CG13DE) 8
| # | OEM | Part name |
|---|---|---|
| 36010 | 36010-72B00 | Device Assy-Parking Brake Control |
| 36010 | 01225-00511 | NUT |
| 36010 | 01436-01861 | SCREW |
| 36011 | 36011-41B00 | Switch Assy-Parking Brake Lamp |
| 36351 | 36013-50J00 | Cover-Dust, Parking Brake |
| 36402 | 36402-50J10 | Cable Assy-Parking Brake, Front |
| 36451 | 36530-41B00 | Cable Assy-Brake, Rear Rh |
| 36452 | 36531-41B00 | Cable Assy-Brake, Rear Lh |
| OEM | Part name | Category |
|---|---|---|
| 01225-00511 | NUT | Parking brake control (1997-05-01 ~ ; CG13DE) |
| 01436-01861 | SCREW | Parking brake control (1997-05-01 ~ ; CG13DE) |
| 36010-72B00 | Device Assy-Parking Brake Control | Parking brake control (1997-05-01 ~ ; CG13DE) |
| 36011-41B00 | Switch Assy-Parking Brake Lamp | Parking brake control (1997-05-01 ~ ; CG13DE) |
| 36013-50J00 | Cover-Dust, Parking Brake | Parking brake control (1997-05-01 ~ ; CG13DE) |
| 36402-50J10 | Cable Assy-Parking Brake, Front | Parking brake control (1997-05-01 ~ ; CG13DE) |
| 36530-41B00 | Cable Assy-Brake, Rear Rh | Parking brake control (1997-05-01 ~ ; CG13DE) |
| 36531-41B00 | Cable Assy-Brake, Rear Lh | Parking brake control (1997-05-01 ~ ; CG13DE) |
