CK11

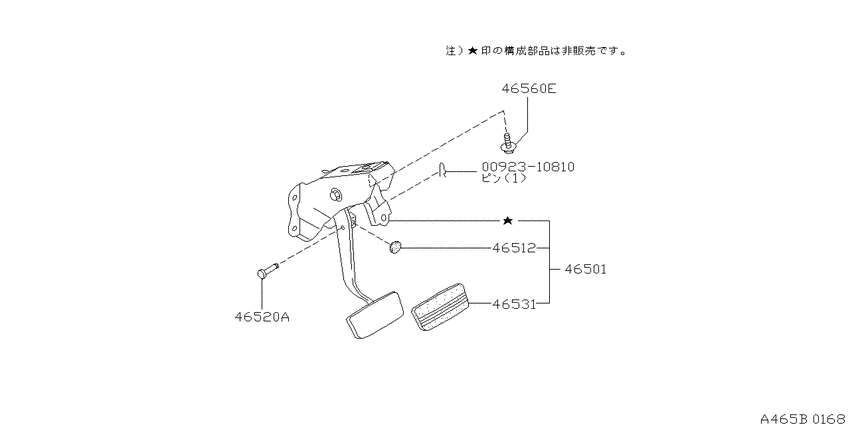

Brake & clutch pedal (1997-05-01 ~ ; CG13DE.AT.CVT) 5
| # | OEM | Part name |
|---|---|---|
| 46501 | 46501-72B11 | Pedal Assy-Brake W/bracket |
| 46512 | 46584-5P010 | Stopper-Rubber |
| 46520 | 46123-03W10 | Pin-Clevis |
| 46560 | 01121-00512 | BOLT |
| 92310810 | 00923-10810 | PIN-SNAP |
| OEM | Part name | Category |
|---|---|---|
| 00923-10810 | PIN-SNAP | Brake & clutch pedal (1997-05-01 ~ ; CG13DE.AT.CVT) |
| 01121-00512 | BOLT | Brake & clutch pedal (1997-05-01 ~ ; CG13DE.AT.CVT) |
| 46123-03W10 | Pin-Clevis | Brake & clutch pedal (1997-05-01 ~ ; CG13DE.AT.CVT) |
| 46501-72B11 | Pedal Assy-Brake W/bracket | Brake & clutch pedal (1997-05-01 ~ ; CG13DE.AT.CVT) |
| 46584-5P010 | Stopper-Rubber | Brake & clutch pedal (1997-05-01 ~ ; CG13DE.AT.CVT) |
