Search › Model › CE97

CE97

Toyota COROLLA · 1987 · 4,433 parts · 183 categories

4,433 items

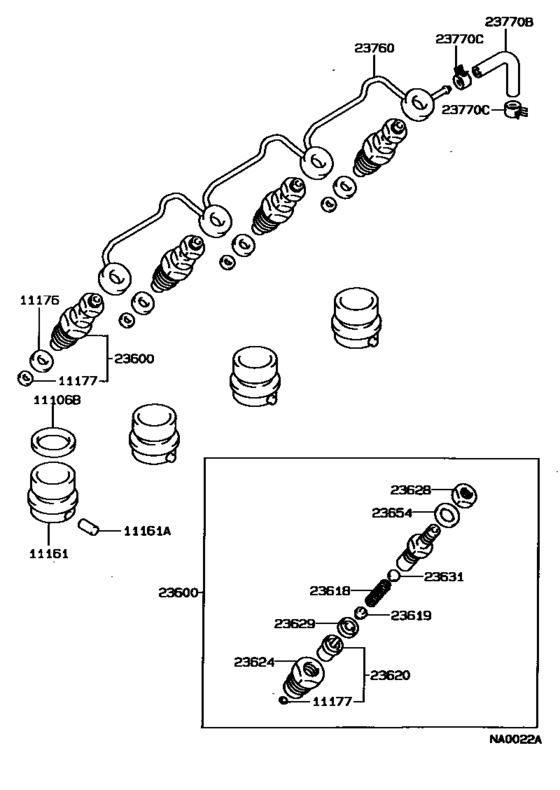

Injection Nozzle ([05.1987 - ] (8705- )1C,2C) 65

#	OEM	Part name
11106	11165-64010	Shim(For Combustion Chamber)
11106	11165-64011	Shim(For Combustion Chamber)
11106	11166-64010	Shim(For Combustion Chamber)
11106	11166-64011	Shim(For Combustion Chamber)
11161	11161-64090	Chamber, Combustion
11161	90250-02046	Pin, Straight(For Combustion Chamber)
11176	11176-64010	Seat, Injection Nozzle
11177	11177-64010	Gasket, Injection Nozzle Seat
23600	23600-69055	Holder & Nozzle Set, Nozzle
23618	23618-64020	Spring, Nozzle Holder Pressure
23619	23619-64010	Pin, Nozzle Holder Pressure
23620	23620-69045	Nozzle Assy
23624	23624-64040	Nut, Nozzle Retaining
23624	23624-64041	Nut, Nozzle Retaining
23628	23628-64010	Nut(For Ring Packing Setting)
23629	23629-64010	Piece, Distance(For Nozzle)
23631	23631-64010	Washer(For Nozzle Holder Pressure Spring)
23631	23631-64011	Washer(For Nozzle Holder Pressure Spring)
23631	23631-64012	Washer(For Nozzle Holder Pressure Spring)
23631	23631-64013	Washer(For Nozzle Holder Pressure Spring)
23631	23631-64014	Washer(For Nozzle Holder Pressure Spring)
23631	23631-64015	Washer(For Nozzle Holder Pressure Spring)
23631	23631-64016	Washer(For Nozzle Holder Pressure Spring)
23631	23631-64017	Washer(For Nozzle Holder Pressure Spring)
23631	23631-64018	Washer(For Nozzle Holder Pressure Spring)
23631	23631-64019	Washer(For Nozzle Holder Pressure Spring)
23631	23632-64010	Washer(For Nozzle Holder Pressure Spring)
23631	23632-64011	Washer(For Nozzle Holder Pressure Spring)
23631	23632-64012	Washer(For Nozzle Holder Pressure Spring)
23631	23632-64013	Washer(For Nozzle Holder Pressure Spring)
23631	23632-64014	Washer(For Nozzle Holder Pressure Spring)
23631	23632-64015	Washer(For Nozzle Holder Pressure Spring)
23631	23632-64016	Washer(For Nozzle Holder Pressure Spring)
23631	23632-64017	Washer(For Nozzle Holder Pressure Spring)
23631	23632-64018	Washer(For Nozzle Holder Pressure Spring)
23631	23632-64019	Washer(For Nozzle Holder Pressure Spring)
23631	23633-64010	Washer(For Nozzle Holder Pressure Spring)
23631	23633-64011	Washer(For Nozzle Holder Pressure Spring)
23631	23633-64012	Washer(For Nozzle Holder Pressure Spring)
23631	23633-64013	Washer(For Nozzle Holder Pressure Spring)
23631	23633-64014	Washer(For Nozzle Holder Pressure Spring)
23631	23633-64015	Washer(For Nozzle Holder Pressure Spring)
23631	23633-64016	Washer(For Nozzle Holder Pressure Spring)
23631	23633-64017	Washer(For Nozzle Holder Pressure Spring)
23631	23633-64018	Washer(For Nozzle Holder Pressure Spring)
23631	23633-64019	Washer(For Nozzle Holder Pressure Spring)
23631	23634-64010	Washer(For Nozzle Holder Pressure Spring)
23631	23634-64011	Washer(For Nozzle Holder Pressure Spring)
23631	23634-64012	Washer(For Nozzle Holder Pressure Spring)
23631	23634-64013	Washer(For Nozzle Holder Pressure Spring)
23631	23634-64014	Washer(For Nozzle Holder Pressure Spring)
23631	23634-64015	Washer(For Nozzle Holder Pressure Spring)
23631	23634-64016	Washer(For Nozzle Holder Pressure Spring)
23631	23634-64017	Washer(For Nozzle Holder Pressure Spring)
23631	23634-64018	Washer(For Nozzle Holder Pressure Spring)
23631	23634-64019	Washer(For Nozzle Holder Pressure Spring)
23631	23635-64010	Washer(For Nozzle Holder Pressure Spring)
23631	23635-64011	Washer(For Nozzle Holder Pressure Spring)
23631	23635-64012	Washer(For Nozzle Holder Pressure Spring)
23654	23654-64010	Washer(For Ring Packing)
23760	23761-64030	Pipe Assy, Nozzle Leakage
23770	23274-64010	Hose, Fuel(For Injection Pump To Fuel Pipe)
23770	90467-11076	Clamp Or Clip(For Air Hose, No.5)
23770	96132-30400	Clip Or Clamp(For Ventilation Hose)
23770	96132-51000	Clip Or Clamp(For Ventilation Hose)

OEM	Part name	Category
11161-64090	Chamber, Combustion	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
11165-64010	Shim(For Combustion Chamber)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
11165-64011	Shim(For Combustion Chamber)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
11166-64010	Shim(For Combustion Chamber)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
11166-64011	Shim(For Combustion Chamber)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
11176-64010	Seat, Injection Nozzle	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
11177-64010	Gasket, Injection Nozzle Seat	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23274-64010	Hose, Fuel(For Injection Pump To Fuel Pipe)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23600-69055	Holder & Nozzle Set, Nozzle	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23618-64020	Spring, Nozzle Holder Pressure	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23619-64010	Pin, Nozzle Holder Pressure	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23620-69045	Nozzle Assy	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23624-64040	Nut, Nozzle Retaining	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23624-64041	Nut, Nozzle Retaining	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23628-64010	Nut(For Ring Packing Setting)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23629-64010	Piece, Distance(For Nozzle)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23631-64010	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23631-64011	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23631-64012	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23631-64013	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23631-64014	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23631-64015	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23631-64016	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23631-64017	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23631-64018	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23631-64019	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23632-64010	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23632-64011	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23632-64012	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23632-64013	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23632-64014	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23632-64015	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23632-64016	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23632-64017	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23632-64018	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23632-64019	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23633-64010	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23633-64011	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23633-64012	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23633-64013	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23633-64014	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23633-64015	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23633-64016	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23633-64017	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23633-64018	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23633-64019	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23634-64010	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23634-64011	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23634-64012	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23634-64013	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23634-64014	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23634-64015	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23634-64016	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23634-64017	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23634-64018	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23634-64019	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23635-64010	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23635-64011	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23635-64012	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23654-64010	Washer(For Ring Packing)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
23761-64030	Pipe Assy, Nozzle Leakage	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
90250-02046	Pin, Straight(For Combustion Chamber)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
90467-11076	Clamp Or Clip(For Air Hose, No.5)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
96132-30400	Clip Or Clamp(For Ventilation Hose)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)
96132-51000	Clip Or Clamp(For Ventilation Hose)	Injection Nozzle ([05.1987 - ] (8705- )1C,2C)

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 183
Collected: 2026-08-02
