CE97

Toyota COROLLA · 1987 · 4,433 parts · 183 categories
CE97 ×

← Back to categories

4,433 items

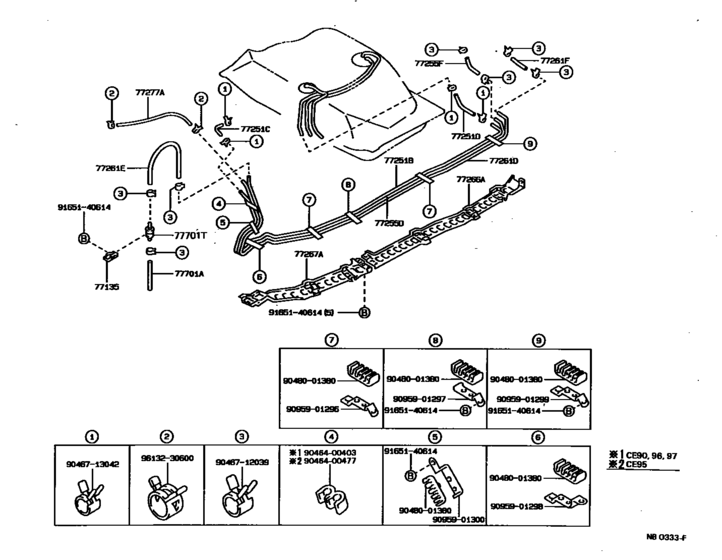

Fuel Tank & Tube ([05.1987 - ] (8705- )CE90,96,97) 28
#OEMPart name
77135 77135-32010 Bracket, Check Valve
77251 77251-12370 Tube, Fuel Main
77251 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77251 90445-14133 Hose, Fuel, No.2(For Fuel Main Tube)
77255 77255-12340 Tube, Fuel Return
77255 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77255 95337-06020 Hose, Differential Pressure Control
77261 77261-12250 Tube, Fuel Tank To Canister
77261 77259-12140 Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)
77266 77266-12030 Protector, Fuel Tube, No.1
77267 77267-12060 Protector, Fuel Tube, No.2
77277 23271-64111 Hose, Fuel, No.1(For Return Tube, No.1)
77701 77249-12050 Hose, Fuel, No.1 (For Breather Valve)
77701 90917-10069 Valve, Check (For Main Fuel Tank)
77701 90917-10082 Hose, Fuel, No.1 (For Breather Valve)
9046400403 90464-00403 Clamp, Vacuum Tube
9046400477 90464-00477 Clamp, Fuel Tube W/grommet, No.3
9046712039 90467-12039 Clip, No.1(For Idle-Up Hose)
9046712039 96132-51100 Clip (For Hose)
9046713042 90467-13042 Clip, No.2(For Idle-Up Hose)
9048001380 90480-01380 New Genuine Part
9095901296 90959-01296 New Genuine Part
9095901297 90959-01297 New Genuine Part
9095901298 90959-01298 New Genuine Part
9095901299 90959-01299 New Genuine Part
9095901300 90959-01300 New Genuine Part
9165140614 91651-40614 Bolt
9613230600 96132-30600 Clip(For Actuator Hose)
