CE97

Toyota COROLLA · 1987 · 4,433 parts · 183 categories
CE97 ×

← Back to categories

4,433 items

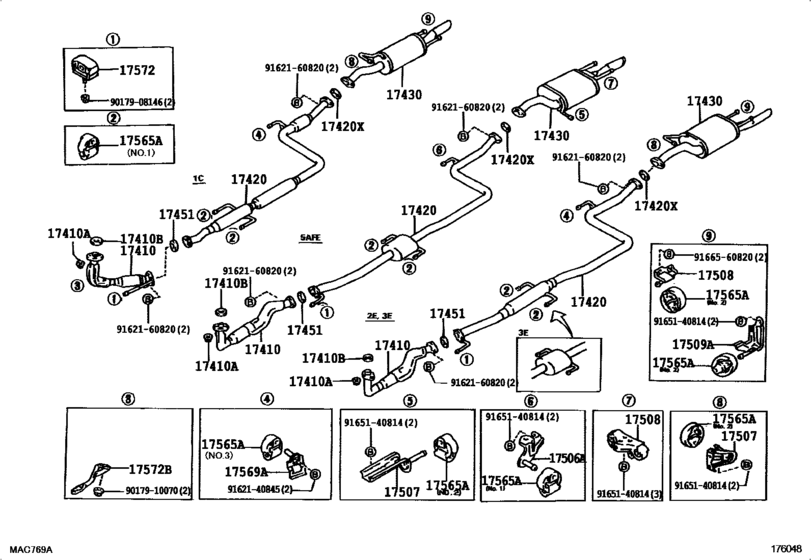

Exhaust Pipe ([08.1989 - ] (8908- )5AFE,1C,2E,3E..AE91,CE96,97,EE96,97,9 8..V,WG) 25
#OEMPart name
17410 17410-64270 Pipe Assy, Exhaust, Front
17410 90179-10070 Nut, Exhaust Pipe Set Stud Bolt
17410 90080-17187 Nut, Exhaust Pipe Set Stud Bolt
17410 90917-06039 Gasket, Exhaust Pipe
17420 17420-64101 Pipe Assy, Exhaust, Center
17430 17430-64570 Pipe Assy, Exhaust, Tail
17507 17507-11030 Bracket Sub-Assy, Exhaust Pipe No.2 Support
17508 17508-11020 Support Sub-Assy, Exhaust Pipe, No.3
17509 17509-11020 Bracket Sub-Assy, Exhaust Pipe No.4 Support
17565 17565-15070 Support, Exhaust Pipe, No.3
17565 17565-15110 Support, Exhaust Pipe, No.4
17565 17565-63030 Bracket, Catalytic Converter Support
17569 17569-11010 Plate, Exhaust Pipe Support
17572 17572-15050 Bracket, Exhaust Pipe No.1 Support
17572 17572-64120 Bracket, Exhaust Pipe Support, No.2
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9162140845 91621-40845 Bolt(for Rocker Support Set)
9162140845 91651-B0845 Bolt, Flange (For Idler)
9162160820 91621-60820 New Genuine Part
9162160820 91651-B0822 BOLT WWASHER
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9166560820 91665-60820 New Genuine Part
9166560820 91661-60816 Bolt
