CE96

Toyota COROLLA · 1987 · 5,167 parts · 207 categories
CE96 ×

← Back to categories

5,167 items

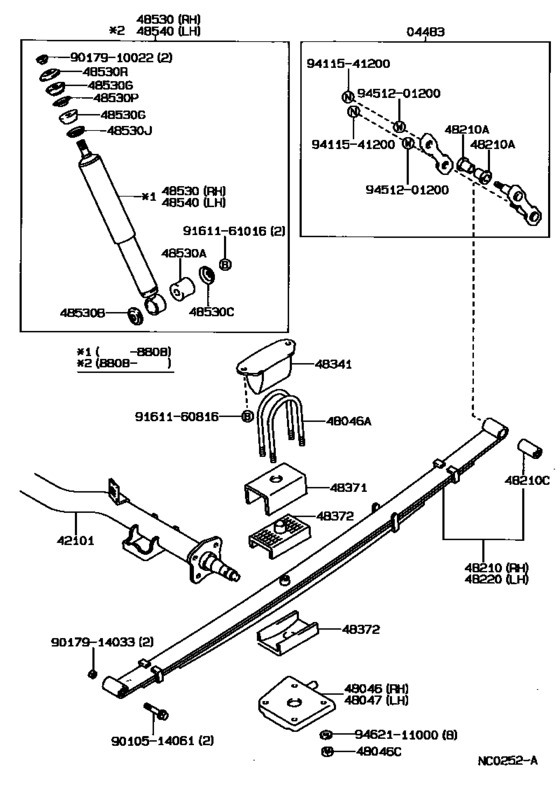

Rear Spring & Shock Absorber ([08.1987 - ] (8708- )CE96,97,EE96,97,98) 39
#OEMPart name
4483 04483-20020 Shackle Kit, Rear Spring
42101 42101-13061 Tube Sub-Assy, Rear Axle
42101 42101-13060 Tube Sub-Assy, Rear Axle
42101 90368-22001 Bearing (For Rear Axle Shaft Outer)
42101 90368-35004 Bearing (For Rear Axle Shaft Inner)
48046 48046-13060 Seat Sub-Assy, Spring U Bolt, Rh
48046 90117-10010 Bolt, U(For Rear Spring)
48046 90170-10022 Nut(For Rear Spring U Bolt)
48047 48047-13060 Seat Sub-Assy, Spring U Bolt, Lh
48210 48210-13261 Spring Assy, Rear Rh
48210 90385-15003 Bush (For Control Shaft)
48210 90389-12001 Bush(For Rear Spring Leaf)
48210 90389-14034 Bush(For Rear Spring Leaf)
48210 48210-13260 Spring Assy, Rear Rh
48210 90385-15070 Bush(For Rear Spring Shackle Upper)
48341 48341-13090 Bumper, Rear Spring
48371 48371-13070 Retainer, Rear Spring Pad
48372 48372-12020 Pad, Rear Spring
48530 48531-80071 Absorber Assy, Shock, Rear Rh
48530 48531-80181 Absorber Assy, Shock, Rear Rh
48530 90385-16004 Cushion, Front Shock Absorber
48530 90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)
48530 90948-03012 Washer, Front Shock Absorber Cushion, No.1
48530 90540-10005 Bush(For Rear Shock Absorber)
48530 90948-01003 Rubber Cushion
48530 90948-02002 Retainer, Steering Damper Cushion
48530 90948-02007 Retainer, Steering Damper Cushion
48530 90948-02045 Washer, Rear Shock Absorber Cushion, No.1
9010514061 90105-14061 BOLT WASHER BASED
9017910022 90179-10022 Nut(For Rear Support To Rear Shock Absorber)
9017914033 90179-14033 NUT
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9161161016 91611-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161161016 91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9411541200 94115-41200 Nut
9411541200 94130-61200 Nut
9451201200 94512-01200 Washer
9462111000 94621-11000 Washer, Spring(For Steering Center Arm)
