Search › Model › CE96
CE96

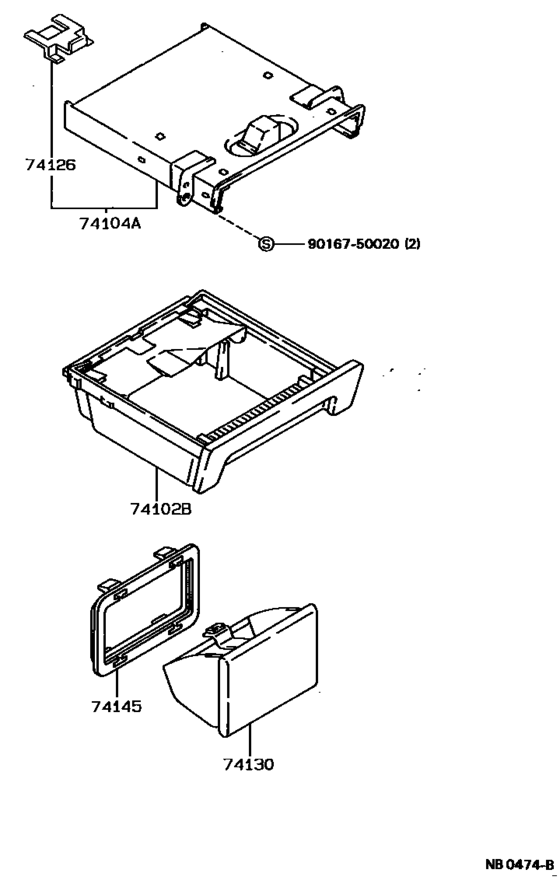

Ash Receptacle ([05.1987 - ] (8705- )) 13
| # | OEM | Part name |
|---|---|---|
| 74102 | 74102-12200-03 | Box Sub-Assy, Front Ash Receptacle |
| 74102 | 74102-12200-C0 | Box Sub-Assy, Front Ash Receptacle |
| 74102 | 74102-12200-04 | Box Sub-Assy, Front Ash Receptacle |
| 74102 | 74102-12200-05 | Box Sub-Assy, Front Ash Receptacle |
| 74104 | 74104-12170 | Retainer Sub-Assy, Front Ash Receptacle |
| 74104 | 74104-12180 | Retainer Sub-Assy, Front Ash Receptacle |
| 74126 | 74126-32010 | Support, Front Ash Receptacle Ret, No.3 |
| 74130 | 74109-32010-13 | Receptacle Assy, Rear Ash |
| 74130 | 74109-20080-22 | Receptacle Assy, Rear Ash (Black) |
| 74130 | 74109-32010-B2 | Receptacle Assy, Rear Ash |
| 74130 | 74109-32010-J0 | Receptacle Assy, Rear Ash |
| 74130 | 74109-32010-05 | Receptacle Assy, Rear Ash |
| 9016750020 | 90167-50020 | SCREW PAN TAPPING |
| OEM | Part name | Category |
|---|---|---|
| 74102-12200-03 | Box Sub-Assy, Front Ash Receptacle | Ash Receptacle ([05.1987 - ] (8705- )) |
| 74102-12200-04 | Box Sub-Assy, Front Ash Receptacle | Ash Receptacle ([05.1987 - ] (8705- )) |
| 74102-12200-05 | Box Sub-Assy, Front Ash Receptacle | Ash Receptacle ([05.1987 - ] (8705- )) |
| 74102-12200-C0 | Box Sub-Assy, Front Ash Receptacle | Ash Receptacle ([05.1987 - ] (8705- )) |
| 74104-12170 | Retainer Sub-Assy, Front Ash Receptacle | Ash Receptacle ([05.1987 - ] (8705- )) |
| 74104-12180 | Retainer Sub-Assy, Front Ash Receptacle | Ash Receptacle ([05.1987 - ] (8705- )) |
| 74109-20080-22 | Receptacle Assy, Rear Ash (Black) | Ash Receptacle ([05.1987 - ] (8705- )) |
| 74109-32010-05 | Receptacle Assy, Rear Ash | Ash Receptacle ([05.1987 - ] (8705- )) |
| 74109-32010-13 | Receptacle Assy, Rear Ash | Ash Receptacle ([05.1987 - ] (8705- )) |
| 74109-32010-B2 | Receptacle Assy, Rear Ash | Ash Receptacle ([05.1987 - ] (8705- )) |
| 74109-32010-J0 | Receptacle Assy, Rear Ash | Ash Receptacle ([05.1987 - ] (8705- )) |
| 74126-32010 | Support, Front Ash Receptacle Ret, No.3 | Ash Receptacle ([05.1987 - ] (8705- )) |
| 90167-50020 | SCREW PAN TAPPING | Ash Receptacle ([05.1987 - ] (8705- )) |
