CE71

Toyota COROLLA · 1982 · 3,686 parts · 157 categories

3,686 items

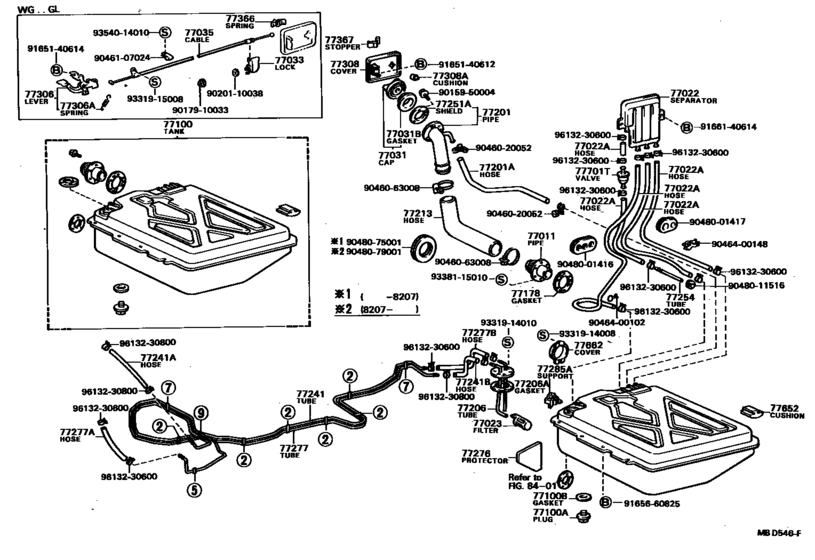

Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72) 71

#	OEM	Part name
77011	77011-13010	Pipe Sub-Assy, Fuel Tank Filler, Lower
77022	77271-13010	Separator Sub-Assy, Fuel Evaporative
77022	90910-05153	Hose, Fuel(For Fuel Evaporative Separator)
77022	95332-06010	Hose, Fuel Pipe, No.1
77022	95333-06010	Hose, Fuel
77022	95332-06060	Hose, Fuel
77022	95333-06060	Hose, Fuel
77023	77023-22040	Filter Sub-Assy, Fuel Suction Tube
77031	77310-35061	Cap Assy, Fuel Tank
77031	77316-12050	Gasket (For Fuel Tank Cap)
77100	77101-19036	Tank Assy, Fuel
77100	90341-20004	Plug(For Fuel Tank)
77100	90430-20007	Gasket(For Fuel Tank)
77178	77178-13020	Gasket, Fuel Tank Filler Pipe, Lower
77201	77201-13071	Pipe Sub-Assy, Fuel Tank Inlet
77201	77201-13090	Pipe Sub-Assy, Fuel Tank Inlet
77201	90445-18028	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77206	77203-13071	Tube Sub-Assy, Fuel Tank Suction
77206	77169-14020	Gasket, Fuel Tank Vent
77213	77213-13040	Hose, Fuel Tank Sub Inlet
77241	77251-13072	Tube, Fuel Main, No.1
77241	95332-08020	Hose, Fuel Pipe, No.1
77241	95337-08020	Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77241	90445-14087	Hose, Fuel, No.2 (For Main Tube, No.1)
77241	77251-13071	Tube, Fuel Main, No.1
77251	77291-22010	Shield, Fuel Tank, Inlet, No.1 - FUEL TANK, INLET, NO.2
77254	77263-13031	Tube, Fuel Emission, No.1
77276	77276-13020	Protector, Fuel Hose
77277	77255-13082	Tube, Fuel Return, No.1
77277	90447-12040	Hose, Fuel
77277	95332-06030	Hose(For Carburetor)
77277	95333-06030	Hose, Fuel
77277	77255-13081	Tube, Fuel Return, No.1
77285	77285-13030	Support, Fuel Return And Main Tube
77308	77350-13021	Cover Sub-Assy, Fuel Inlet Box
77308	90541-06001	Cushion(For Fuel Inlet Box Cover)
77367	77358-13011	Stopper, Fuel Filler Opening Lid
77652	77651-13020	Cushion, Fuel Tank, No.1
77662	77662-13010	Cover, Fuel Tank Gage
77701	90917-10020	Valve, Check (For Main Fuel Tank)
9015950004	90159-50004	New Genuine Part
9017910033	90179-10033	Nut (For Front Wiper Arm Setting)
9020110038	90201-10038	Washer
9046020052	90460-20052	New Genuine Part
9046020052	96112-10200	New Genuine Part
9046063008	90460-63008	Clamp, Hose
9046063008	96111-10630	Clamp, Hose
9046107024	90461-07024	New Genuine Part
9046400102	90464-00102	Clamp, No.3(For Luggage Door Lock Control Cable)
9046400148	90464-00148	New Genuine Part
9048001416	90480-01416	New Genuine Part
9048001417	90480-01417	New Genuine Part
9048011516	90480-11516	New Genuine Part
9048075001	90480-75001	New Genuine Part
9048079001	90480-79001	New Genuine Part
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part
9165140614	91651-40614	Bolt
9165660825	91656-60825	Bolt, Hexagon(For Steering Column Bracket)
9165660825	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
9166140614	91661-40614	New Genuine Part
9166140614	91661-A0614	New Genuine Part
9331914008	93319-14008	SCREW
9331914010	93319-14010	SCREW
9331915008	93319-15008	SCREW
9338115010	93381-15010	SCREW
9354014010	93540-14010	Clip, Headlining Retainer
9613230600	96132-30600	Clip(For Actuator Hose)
9613230600	96132-51100	Clip (For Hose)
9613230800	96132-30800	Clip, No.3(For Idle-Up Hose)
9613230800	96132-51300	Clip(For Ventilation Hose No.2)

OEM	Part name	Category
77011-13010	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77023-22040	Filter Sub-Assy, Fuel Suction Tube	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77101-19036	Tank Assy, Fuel	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77169-14020	Gasket, Fuel Tank Vent	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77178-13020	Gasket, Fuel Tank Filler Pipe, Lower	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77201-13071	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77201-13090	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77203-13071	Tube Sub-Assy, Fuel Tank Suction	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77213-13040	Hose, Fuel Tank Sub Inlet	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77251-13071	Tube, Fuel Main, No.1	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77251-13072	Tube, Fuel Main, No.1	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77255-13081	Tube, Fuel Return, No.1	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77255-13082	Tube, Fuel Return, No.1	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77263-13031	Tube, Fuel Emission, No.1	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77271-13010	Separator Sub-Assy, Fuel Evaporative	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77276-13020	Protector, Fuel Hose	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77285-13030	Support, Fuel Return And Main Tube	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77291-22010	Shield, Fuel Tank, Inlet, No.1 - FUEL TANK, INLET, NO.2	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77310-35061	Cap Assy, Fuel Tank	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77316-12050	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77350-13021	Cover Sub-Assy, Fuel Inlet Box	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77358-13011	Stopper, Fuel Filler Opening Lid	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77651-13020	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
77662-13010	Cover, Fuel Tank Gage	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90080-11225	New Genuine Part	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90159-50004	New Genuine Part	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90179-10033	Nut (For Front Wiper Arm Setting)	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90201-10038	Washer	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90341-20004	Plug(For Fuel Tank)	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90430-20007	Gasket(For Fuel Tank)	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90445-14087	Hose, Fuel, No.2 (For Main Tube, No.1)	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90445-18028	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90447-12040	Hose, Fuel	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90460-20052	New Genuine Part	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90460-63008	Clamp, Hose	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90461-07024	New Genuine Part	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90464-00102	Clamp, No.3(For Luggage Door Lock Control Cable)	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90464-00148	New Genuine Part	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90480-01416	New Genuine Part	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90480-01417	New Genuine Part	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90480-11516	New Genuine Part	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90480-75001	New Genuine Part	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90480-79001	New Genuine Part	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90541-06001	Cushion(For Fuel Inlet Box Cover)	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90910-05153	Hose, Fuel(For Fuel Evaporative Separator)	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
90917-10020	Valve, Check (For Main Fuel Tank)	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
91651-40612	BOLT	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
91651-40614	Bolt	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
91656-60825	Bolt, Hexagon(For Steering Column Bracket)	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
91661-40614	New Genuine Part	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
91661-A0614	New Genuine Part	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
93319-14008	SCREW	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
93319-14010	SCREW	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
93319-15008	SCREW	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
93381-15010	SCREW	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
93540-14010	Clip, Headlining Retainer	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
95332-06010	Hose, Fuel Pipe, No.1	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
95332-06030	Hose(For Carburetor)	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
95332-06060	Hose, Fuel	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
95332-08020	Hose, Fuel Pipe, No.1	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
95333-06010	Hose, Fuel	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
95333-06030	Hose, Fuel	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
95333-06060	Hose, Fuel	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
95337-08020	Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
96111-10630	Clamp, Hose	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
96112-10200	New Genuine Part	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
96132-30600	Clip(For Actuator Hose)	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
96132-30800	Clip, No.3(For Idle-Up Hose)	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)
96132-51300	Clip(For Ventilation Hose No.2)	Fuel Tank & Tube ([02.1982 - ] (8202- )CE71,72)

Source: Public OEM parts-catalog data
Variants: 2 / 7
Category: 157
Collected: 2026-08-02
