Search › Model › CE71
CE71

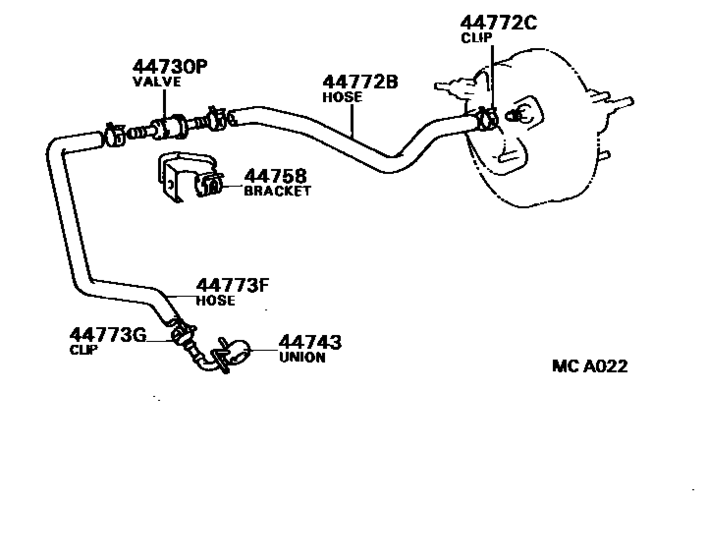

Brake Booster & Vacuum Tube ([08.1983 - ] (8308- )CE7#) 8
| # | OEM | Part name |
|---|---|---|
| 44730 | 44730-22110 | Valve Assy, Vacuum Check(For Brake) |
| 44743 | 90405-09047 | Union(For Vacuum Pump) |
| 44743 | 90405-09048 | Union(For Vacuum Pump) |
| 44758 | 44758-12250 | Bracket, Vacuum Check Valve |
| 44772 | 44772-12260 | Hose, Check Valve To Brake Booster |
| 44772 | 90467-16002 | Clip(Vaccum Transmitting Hose No.1) |
| 44772 | 96133-41500 | Clamp Or Clip(For Air Hose, No.5) |
| 44773 | 44773-12330 | Hose, Union To Check Valve |
| OEM | Part name | Category |
|---|---|---|
| 44730-22110 | Valve Assy, Vacuum Check(For Brake) | Brake Booster & Vacuum Tube ([08.1983 - ] (8308- )CE7#) |
| 44758-12250 | Bracket, Vacuum Check Valve | Brake Booster & Vacuum Tube ([08.1983 - ] (8308- )CE7#) |
| 44772-12260 | Hose, Check Valve To Brake Booster | Brake Booster & Vacuum Tube ([08.1983 - ] (8308- )CE7#) |
| 44773-12330 | Hose, Union To Check Valve | Brake Booster & Vacuum Tube ([08.1983 - ] (8308- )CE7#) |
| 90405-09047 | Union(For Vacuum Pump) | Brake Booster & Vacuum Tube ([08.1983 - ] (8308- )CE7#) |
| 90405-09048 | Union(For Vacuum Pump) | Brake Booster & Vacuum Tube ([08.1983 - ] (8308- )CE7#) |
| 90467-16002 | Clip(Vaccum Transmitting Hose No.1) | Brake Booster & Vacuum Tube ([08.1983 - ] (8308- )CE7#) |
| 96133-41500 | Clamp Or Clip(For Air Hose, No.5) | Brake Booster & Vacuum Tube ([08.1983 - ] (8308- )CE7#) |
