Search › Model › CE71

CE71

Toyota COROLLA · 1982 · 3,686 parts · 157 categories

3,686 items

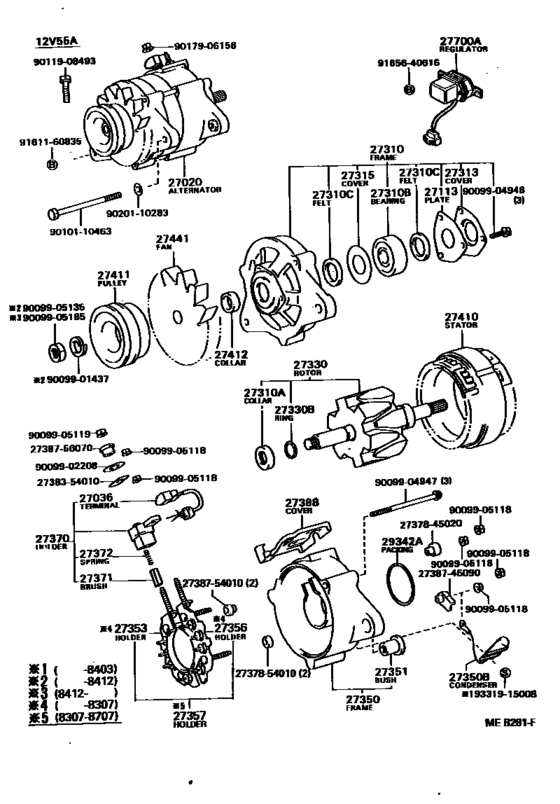

Alternator ([02.1982 - ] (8202- )1C) 52

#	OEM	Part name
27020	27020-64010	Alternator Assy
27036	27036-54010	Terminal Sub-Assy, Lead Wire, Alternator
27113	27312-57060	Plate, Bearing Retainer, Alternator
27310	27310-64030	Frame Assy, Drive End, Alternator
27310	27333-57060	Ring, Space(For Alternator Rotor)
27310	90099-10137	Bearing(For Alternator Drive End Frame)
27310	90099-02209	Felt(For Alternator Drive End Frame)
27313	27313-57060	Cover, Alternator Felt, Inner No.2
27315	27315-57060	Cover, Alternator Felt, Inner No.1
27330	27330-64010	Rotor Assy, Alternator
27330	90099-07103	Ring, Snap(For Alternator Rotor)
27350	27350-64030	Frame Assy, Rectifier End
27350	90099-52066	Condenser, Alternator
27350	90099-52035	Condenser, Alternator - RECTIFIER END
27351	27351-64010	Bush(For Alternator Rectifier End Frame)
27357	27357-64060	Holder, Alternator, W/rectifier
27370	27370-54010	Holder Assy, Alternator Brush
27370	27370-54250	Holder Assy, Alternator Brush
27371	27371-56070	Brush, Alternator
27371	27371-54412	Brush, Alternator
27372	27372-56070	Spring, Alternator Brush
27388	27388-64011	Cover, Frame Brush
27388	27388-54341	Cover, Alternator Brush
27410	27410-43040	Stator Assy, Alternator
27411	27411-64010	Pulley, Alternator
27412	27412-57060	Collar Or Nut(For Alternator Drive End Frame)
27441	27441-56090	Fan, Alternator
27700	27700-15030	Regulator Assy, Generator
27700	27700-15040	Regulator Assy, Generator
29342	90099-14055	Packing, Vacuum Pump
2737845020	27378-45020	Insulator, Alternator, No.1
2737854010	27378-54010	Insulator, Alternator, No.2
2738354010	27383-54010	Washer, Alternater Terminal Insulator, No.1
2738745090	27387-45090	Insulator, Terminal
2738754010	27387-54010	Insulator, Terminal
2738756070	27387-56070	Insulator, Terminal
9009901437	90099-01437	New Genuine Part
9009902208	90099-02208	New Genuine Part
9009904947	90099-04947	New Genuine Part
9009904948	90099-04948	New Genuine Part
9009905118	90099-05118	New Genuine Part
9009905119	90099-05119	New Genuine Part
9009905135	90099-05135	New Genuine Part
9009905185	90099-05185	NUT
9010110463	90101-10463	Bolt, Hexagon(For Air Pump Bracket Setting)
9011908493	90119-08493	BOLT
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9020110283	90201-10283	Washer, Plate(For Steering Tilt Lever)
9161160835	91611-60835	Bolt(For Clutch Release Cylinder Setting)
9165640616	91656-40616	Bolt
9165640616	91651-60614	Bolt
9331915008	93319-15008	SCREW

OEM	Part name	Category
27020-64010	Alternator Assy	Alternator ([02.1982 - ] (8202- )1C)
27036-54010	Terminal Sub-Assy, Lead Wire, Alternator	Alternator ([02.1982 - ] (8202- )1C)
27310-64030	Frame Assy, Drive End, Alternator	Alternator ([02.1982 - ] (8202- )1C)
27312-57060	Plate, Bearing Retainer, Alternator	Alternator ([02.1982 - ] (8202- )1C)
27313-57060	Cover, Alternator Felt, Inner No.2	Alternator ([02.1982 - ] (8202- )1C)
27315-57060	Cover, Alternator Felt, Inner No.1	Alternator ([02.1982 - ] (8202- )1C)
27330-64010	Rotor Assy, Alternator	Alternator ([02.1982 - ] (8202- )1C)
27333-57060	Ring, Space(For Alternator Rotor)	Alternator ([02.1982 - ] (8202- )1C)
27350-64030	Frame Assy, Rectifier End	Alternator ([02.1982 - ] (8202- )1C)
27351-64010	Bush(For Alternator Rectifier End Frame)	Alternator ([02.1982 - ] (8202- )1C)
27357-64060	Holder, Alternator, W/rectifier	Alternator ([02.1982 - ] (8202- )1C)
27370-54010	Holder Assy, Alternator Brush	Alternator ([02.1982 - ] (8202- )1C)
27370-54250	Holder Assy, Alternator Brush	Alternator ([02.1982 - ] (8202- )1C)
27371-54412	Brush, Alternator	Alternator ([02.1982 - ] (8202- )1C)
27371-56070	Brush, Alternator	Alternator ([02.1982 - ] (8202- )1C)
27372-56070	Spring, Alternator Brush	Alternator ([02.1982 - ] (8202- )1C)
27378-45020	Insulator, Alternator, No.1	Alternator ([02.1982 - ] (8202- )1C)
27378-54010	Insulator, Alternator, No.2	Alternator ([02.1982 - ] (8202- )1C)
27383-54010	Washer, Alternater Terminal Insulator, No.1	Alternator ([02.1982 - ] (8202- )1C)
27387-45090	Insulator, Terminal	Alternator ([02.1982 - ] (8202- )1C)
27387-54010	Insulator, Terminal	Alternator ([02.1982 - ] (8202- )1C)
27387-56070	Insulator, Terminal	Alternator ([02.1982 - ] (8202- )1C)
27388-54341	Cover, Alternator Brush	Alternator ([02.1982 - ] (8202- )1C)
27388-64011	Cover, Frame Brush	Alternator ([02.1982 - ] (8202- )1C)
27410-43040	Stator Assy, Alternator	Alternator ([02.1982 - ] (8202- )1C)
27411-64010	Pulley, Alternator	Alternator ([02.1982 - ] (8202- )1C)
27412-57060	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([02.1982 - ] (8202- )1C)
27441-56090	Fan, Alternator	Alternator ([02.1982 - ] (8202- )1C)
27700-15030	Regulator Assy, Generator	Alternator ([02.1982 - ] (8202- )1C)
27700-15040	Regulator Assy, Generator	Alternator ([02.1982 - ] (8202- )1C)
90099-01437	New Genuine Part	Alternator ([02.1982 - ] (8202- )1C)
90099-02208	New Genuine Part	Alternator ([02.1982 - ] (8202- )1C)
90099-02209	Felt(For Alternator Drive End Frame)	Alternator ([02.1982 - ] (8202- )1C)
90099-04947	New Genuine Part	Alternator ([02.1982 - ] (8202- )1C)
90099-04948	New Genuine Part	Alternator ([02.1982 - ] (8202- )1C)
90099-05118	New Genuine Part	Alternator ([02.1982 - ] (8202- )1C)
90099-05119	New Genuine Part	Alternator ([02.1982 - ] (8202- )1C)
90099-05135	New Genuine Part	Alternator ([02.1982 - ] (8202- )1C)
90099-05185	NUT	Alternator ([02.1982 - ] (8202- )1C)
90099-07103	Ring, Snap(For Alternator Rotor)	Alternator ([02.1982 - ] (8202- )1C)
90099-10137	Bearing(For Alternator Drive End Frame)	Alternator ([02.1982 - ] (8202- )1C)
90099-14055	Packing, Vacuum Pump	Alternator ([02.1982 - ] (8202- )1C)
90099-52035	Condenser, Alternator - RECTIFIER END	Alternator ([02.1982 - ] (8202- )1C)
90099-52066	Condenser, Alternator	Alternator ([02.1982 - ] (8202- )1C)
90101-10463	Bolt, Hexagon(For Air Pump Bracket Setting)	Alternator ([02.1982 - ] (8202- )1C)
90119-08493	BOLT	Alternator ([02.1982 - ] (8202- )1C)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([02.1982 - ] (8202- )1C)
90201-10283	Washer, Plate(For Steering Tilt Lever)	Alternator ([02.1982 - ] (8202- )1C)
91611-60835	Bolt(For Clutch Release Cylinder Setting)	Alternator ([02.1982 - ] (8202- )1C)
91651-60614	Bolt	Alternator ([02.1982 - ] (8202- )1C)
91656-40616	Bolt	Alternator ([02.1982 - ] (8202- )1C)
93319-15008	SCREW	Alternator ([02.1982 - ] (8202- )1C)
