CE6

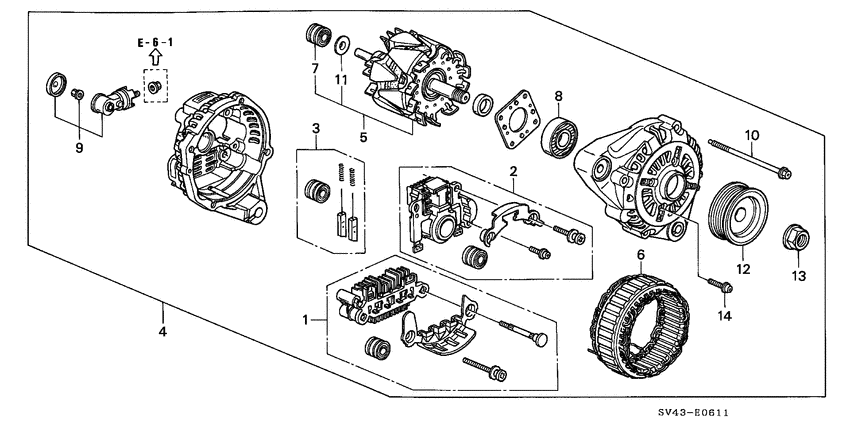

Alternator (MITSUBISHI) 13
| # | OEM | Part name |
|---|---|---|
| 1 | 04311-P0G-A02 | Rectifier set |
| 2 | 04314-P0G-A02 | Regulator set |
| 3 | 04315-P08-J02 | Brush set - MITSUBISHI |
| 4 | 31100-P0G-A03 | Alternator assy - AHGA21) (MITSUBISHI |
| 5 | 31101-P0G-A02 | Rotor assy. |
| 6 | 31102-P0G-A02 | Stator - ### |
| 7 | 31111-P08-J02 | Bearing - RR. GENERATOR |
| 8 | 31114-P01-014 | Bearing - FR. GENERATOR |
| 9 | 31123-P0G-A03 | Terminal set - ### |
| 10 | 31125-P08-J02 | Bolt - FLANGE |
| 12 | 31141-P0G-A02 | Pulley |
| 13 | 31142-P08-J02 | Nut |
| 14 | 31146-PE0-004 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 04311-P0G-A02 | Rectifier set | Alternator (MITSUBISHI) |
| 04314-P0G-A02 | Regulator set | Alternator (MITSUBISHI) |
| 04315-P08-J02 | Brush set - MITSUBISHI | Alternator (MITSUBISHI) |
| 31100-P0G-A03 | Alternator assy - AHGA21) (MITSUBISHI | Alternator (MITSUBISHI) |
| 31101-P0G-A02 | Rotor assy. | Alternator (MITSUBISHI) |
| 31102-P0G-A02 | Stator - ### | Alternator (MITSUBISHI) |
| 31111-P08-J02 | Bearing - RR. GENERATOR | Alternator (MITSUBISHI) |
| 31114-P01-014 | Bearing - FR. GENERATOR | Alternator (MITSUBISHI) |
| 31123-P0G-A03 | Terminal set - ### | Alternator (MITSUBISHI) |
| 31125-P08-J02 | Bolt - FLANGE | Alternator (MITSUBISHI) |
| 31141-P0G-A02 | Pulley | Alternator (MITSUBISHI) |
| 31142-P08-J02 | Nut | Alternator (MITSUBISHI) |
| 31146-PE0-004 | Screw | Alternator (MITSUBISHI) |
