Search › Model › CE140
CE140

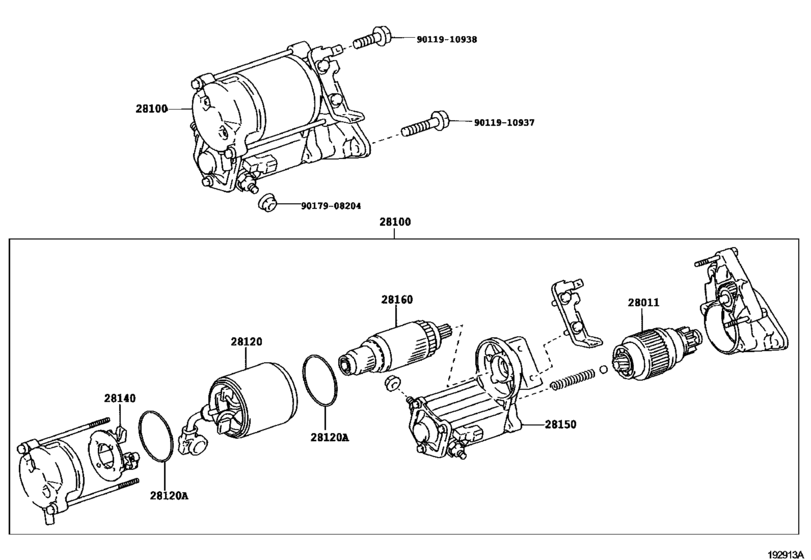

Starter ([08.2007 - ] 12V 1.4KW (0708- )2C) 12
| # | OEM | Part name |
|---|---|---|
| 28011 | 28011-64130 | Clutch Sub-Assy, Starter |
| 28100 | 28100-64340 | Starter Assy |
| 28100 | 28100-64341 | Starter Assy |
| 28120 | 28120-55050 | Yoke Assy, Starter |
| 28120 | 90099-14064 | Rubber(For Starter Yoke) |
| 28140 | 28140-64130 | Holder Assy, Starter Brush |
| 28150 | 28150-64341 | Switch Assy, Magnet Starter |
| 28160 | 28160-74070 | Armature Assy, Starter |
| 9011910937 | 90119-10937 | New Genuine Part |
| 9011910938 | 90119-10938 | New Genuine Part |
| 9017908204 | 90179-08204 | Nut |
| 9017908204 | 90080-18070 | NUT, WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 28011-64130 | Clutch Sub-Assy, Starter | Starter ([08.2007 - ] 12V 1.4KW (0708- )2C) |
| 28100-64340 | Starter Assy | Starter ([08.2007 - ] 12V 1.4KW (0708- )2C) |
| 28100-64341 | Starter Assy | Starter ([08.2007 - ] 12V 1.4KW (0708- )2C) |
| 28120-55050 | Yoke Assy, Starter | Starter ([08.2007 - ] 12V 1.4KW (0708- )2C) |
| 28140-64130 | Holder Assy, Starter Brush | Starter ([08.2007 - ] 12V 1.4KW (0708- )2C) |
| 28150-64341 | Switch Assy, Magnet Starter | Starter ([08.2007 - ] 12V 1.4KW (0708- )2C) |
| 28160-74070 | Armature Assy, Starter | Starter ([08.2007 - ] 12V 1.4KW (0708- )2C) |
| 90080-18070 | NUT, WWASHER | Starter ([08.2007 - ] 12V 1.4KW (0708- )2C) |
| 90099-14064 | Rubber(For Starter Yoke) | Starter ([08.2007 - ] 12V 1.4KW (0708- )2C) |
| 90119-10937 | New Genuine Part | Starter ([08.2007 - ] 12V 1.4KW (0708- )2C) |
| 90119-10938 | New Genuine Part | Starter ([08.2007 - ] 12V 1.4KW (0708- )2C) |
| 90179-08204 | Nut | Starter ([08.2007 - ] 12V 1.4KW (0708- )2C) |
