CE140

Toyota COROLLA · 2007 · 4,272 parts · 209 categories

4,272 items

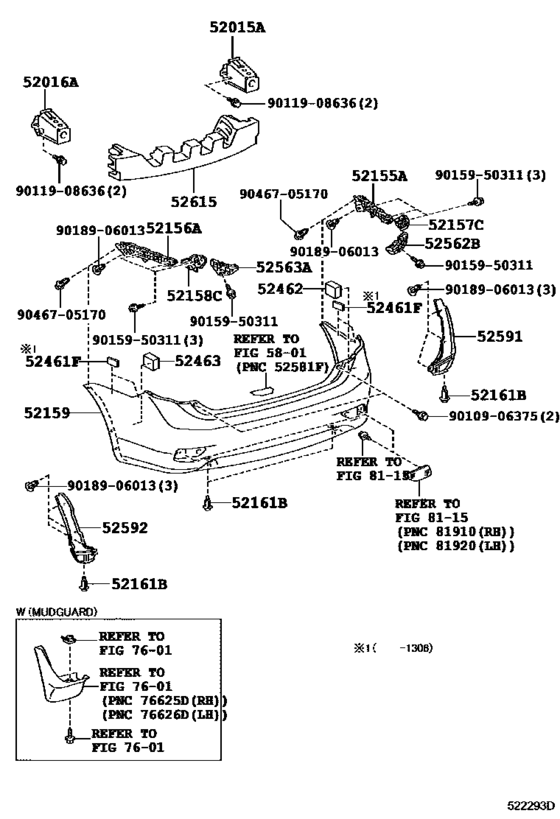

Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED) 26

#	OEM	Part name
52015	52015-12360	Arm Sub-Assy, Rear Bumper, Rh
52155	52155-12320	Support, Rear Bumper Side, Rh
52156	52156-12290	Support, Rear Bumper Side, Lh
52157	52157-12160	Support, Rear Bumper Side, No.2 Rh
52158	52158-12090	Support, Rear Bumper Side, No.2 Lh
52159	52159-12934	Cover, Rear Bumper
52159	52159-12941	Cover, Rear Bumper
52161	52161-16010	Clip
52161	52161-0K040	Clip
52161	52161-02020	Clip
52461	52461-12030	Pad, Rear Bumper
52462	52462-12100	Pad, Rear Bumper, Rh
52462	52462-12110	Pad, Rear Bumper, No.2
52562	52562-12120	Retainer, Rear Bumper, Upper Rh
52562	52562-12130	Retainer, Rear Bumper, Upper Rh
52563	52563-12040	Retainer, Rear Bumper, Upper Lh
52563	52563-12090	Retainer, Rear Bumper, Upper Lh
52591	52591-12230	Seal, Rear Bumper Side, Rh
52592	52592-12150	Seal, Rear Bumper Side, Lh
52615	52615-12160	Absorber, Rear Bumper Energy
9010906375	90109-06375	BOLT
9011908636	90119-08636	BOLT
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9018906013	90189-06013	CLIP
9046705170	90467-05170	Clip, Rear Bumper Side

OEM	Part name	Category
52015-12360	Arm Sub-Assy, Rear Bumper, Rh	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
52155-12320	Support, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
52156-12290	Support, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
52157-12160	Support, Rear Bumper Side, No.2 Rh	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
52158-12090	Support, Rear Bumper Side, No.2 Lh	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
52159-12934	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
52159-12941	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
52161-02020	Clip	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
52161-0K040	Clip	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
52161-16010	Clip	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
52461-12030	Pad, Rear Bumper	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
52462-12100	Pad, Rear Bumper, Rh	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
52462-12110	Pad, Rear Bumper, No.2	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
52562-12120	Retainer, Rear Bumper, Upper Rh	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
52562-12130	Retainer, Rear Bumper, Upper Rh	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
52563-12040	Retainer, Rear Bumper, Upper Lh	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
52563-12090	Retainer, Rear Bumper, Upper Lh	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
52591-12230	Seal, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
52592-12150	Seal, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
52615-12160	Absorber, Rear Bumper Energy	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
90109-06375	BOLT	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
90119-08636	BOLT	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
90159-50311	SCREW	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
90159-A0034	SCREW WWASHER	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
90189-06013	CLIP	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
90467-05170	Clip, Rear Bumper Side	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )SED)
