Search › Model › CE140

CE140

Toyota COROLLA · 2007 · 4,272 parts · 209 categories

4,272 items

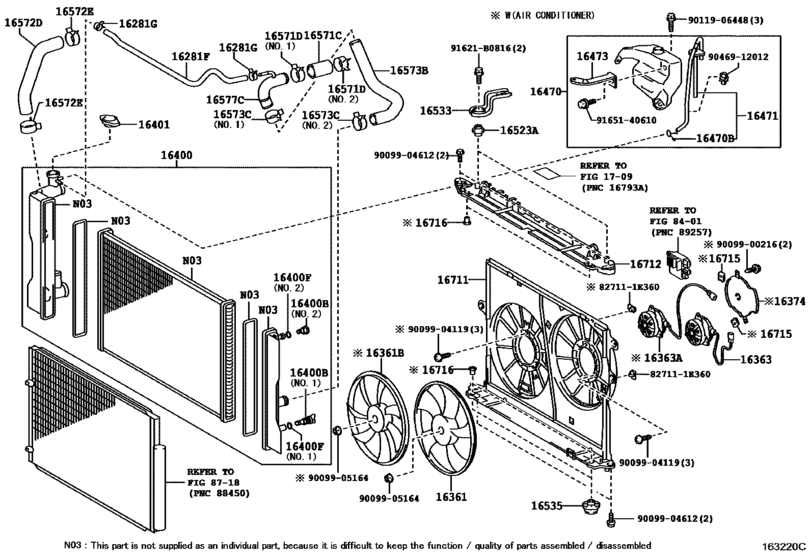

Radiator & Water Outlet ([08.2007 - ] (0708- )2C) 66

#	OEM	Part name
0	82711-1E360	Clamp, Wiring Harness
11182	11182-64021	Gasket, Cylinder Head Rear Plate
16261	16261-64060	Hose, Water By-Pass
16261	90404-53075	Union(For Water By-Pass Hose)
16264	16264-64090	Hose, Water By-Pass, No.2
16268	16268-64061	Pipe, Water By-Pass, No.1
16281	16281-64020	Hose, Water By-Pass, No.5
16281	16281-64021	Hose, Water By-Pass, No.5
16281	90467-15022	Clip Or Clamp(For Ventilation Hose)
16321	16321-64020	Inlet, Water
16325	16325-63011	Gasket, Water Inlet Housing, No.1
16331	16331-64150	Outlet, Water
16331	90916-03046	Thermostat
16361	16361-28320	Fan
16361	16361-28330	Fan, No.2
16363	16363-64220	Motor, Cooling Fan
16363	16363-64250	Motor, Cooling Fan, No.2
16374	16366-28120	Insulator, Cooling Fan Motor
16381	16381-64080	Bar, Alternator Belt Adjusting
16385	16385-64011	Slider, Fan Belt Adjusting
16400	16410-64640	Radiator Assy
16400	16417-21280	Cock Sub-Assy, Radiator Drain
16400	16417-28530	Plug, Radiator Drain Cock
16400	16418-20290	Packing(For Radiator Drain Cock)
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16401	16401-20353	Cap Sub-Assy, Radiator
16401	16401-36030	Cap Sub-Assy, Radiator
16401	16401-72090	Cap Sub-Assy, Radiator
16470	16470-64260	Tank Assy, Radiator Reserve
16470	16470-64261	Tank Assy, Radiator Reserve
16470	90466-11003	Clamp Or Clip(For Radiator Reserve Tank Hose)
16470	90466-A0001	Clip(For Fuel Vapor Feed Hose, No.1)
16471	16405-64130	Cap Sub-Assy, Reserve Tank
16473	16473-22090	Support(For Radiator Reserve Tank)
16523	16523-21050	Cushion, Radiator Support
16533	16533-22070	Support, Radiator, Upper
16535	16535-74230	Support, Radiator, Lower
16571	16571-64360	Hose, Radiator, No.1
16571	90466-35001	Clamp Or Clip, Hose(For Radiator Inlet)
16571	96136-44301	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-64360	Hose, Radiator, No.2
16573	16573-64110	Hose, Radiator, No.3
16577	16577-64050	Pipe, Radiator
16711	16711-64560	Shroud, Fan
16712	16712-64270	Shroud, Fan, No.2
16715	88688-18030	Bracket, Fan Shroud
16716	16716-28010	Cushion, Fan Shroud
91511	91511-J0625	Bolt(For Cylinder Head Cover)
91621	91621-B0816	BOLT WWASHER
9011908	90119-08B20	New Genuine Part
8271512310	82715-12310	Bracket,wiring Harness Clamp
9009900216	90099-00216	New Genuine Part
9009904119	90099-04119	BOLT WASHER HEAD
9009904612	90099-04612	Bolt
9009905164	90099-05164	Nut
9011906448	90119-06448	Screw(For Steering Column Tube)
9011908493	90119-08493	BOLT
9011908908	90119-08908	BOLT WWASHER
9033916001	90339-16001	Plug, Heater Water
9046721010	90467-21010	Clip(For Ventilation Hose No.2)
9046912012	90469-12012	Clamp Or Clip(For Fuel Hose)
9092901017	90929-01017	New Genuine Part
9162160840	91621-60840	Bolt(For Rocker Support Set)
9162160865	91621-60865	New Genuine Part
9165140610	91651-40610	RIVET
9613642501	96136-42501	Clip(For Ventilation Hose)

OEM	Part name	Category
11182-64021	Gasket, Cylinder Head Rear Plate	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16261-64060	Hose, Water By-Pass	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16264-64090	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16268-64061	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16281-64020	Hose, Water By-Pass, No.5	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16281-64021	Hose, Water By-Pass, No.5	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16321-64020	Inlet, Water	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16325-63011	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16331-64150	Outlet, Water	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16361-28320	Fan	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16361-28330	Fan, No.2	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16363-64220	Motor, Cooling Fan	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16363-64250	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16366-28120	Insulator, Cooling Fan Motor	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16381-64080	Bar, Alternator Belt Adjusting	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16385-64011	Slider, Fan Belt Adjusting	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16401-20353	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16401-36030	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16401-72090	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16405-64130	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16410-64640	Radiator Assy	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16417-21280	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16417-28530	Plug, Radiator Drain Cock	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16418-20290	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16470-64260	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16470-64261	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16473-22090	Support(For Radiator Reserve Tank)	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16523-21050	Cushion, Radiator Support	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16533-22070	Support, Radiator, Upper	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16535-74230	Support, Radiator, Lower	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16571-64360	Hose, Radiator, No.1	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16572-64360	Hose, Radiator, No.2	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16573-64110	Hose, Radiator, No.3	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16577-64050	Pipe, Radiator	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16711-64560	Shroud, Fan	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16712-64270	Shroud, Fan, No.2	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
16716-28010	Cushion, Fan Shroud	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
82711-1E360	Clamp, Wiring Harness	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
82715-12310	Bracket,wiring Harness Clamp	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
88688-18030	Bracket, Fan Shroud	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
90099-00216	New Genuine Part	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
90099-04612	Bolt	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
90099-05164	Nut	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
90119-06448	Screw(For Steering Column Tube)	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
90119-08493	BOLT	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
90119-08908	BOLT WWASHER	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
90119-08B20	New Genuine Part	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
90339-16001	Plug, Heater Water	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
90404-53075	Union(For Water By-Pass Hose)	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
90466-11003	Clamp Or Clip(For Radiator Reserve Tank Hose)	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
90466-35001	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
90466-A0001	Clip(For Fuel Vapor Feed Hose, No.1)	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
90467-21010	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
90469-12012	Clamp Or Clip(For Fuel Hose)	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
90916-03046	Thermostat	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
90929-01017	New Genuine Part	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
91511-J0625	Bolt(For Cylinder Head Cover)	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
91621-60840	Bolt(For Rocker Support Set)	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
91621-60865	New Genuine Part	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
91621-B0816	BOLT WWASHER	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
91651-40610	RIVET	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
96136-42501	Clip(For Ventilation Hose)	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
96136-44301	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([08.2007 - ] (0708- )2C)
