CE140

Toyota COROLLA · 2007 · 4,272 parts · 209 categories

← Back to categories

4,272 items

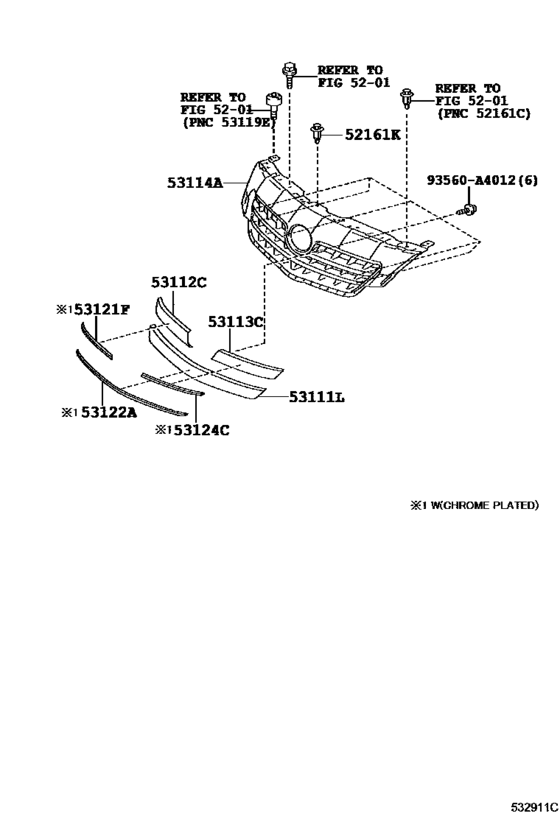

Radiator Grille ([04.2007 - 07.2010] (0704-1007)SED ; (1007- )CVFC) 18

#	OEM	Part name
52161	52161-16010	Clip
52161	52161-0K040	Clip
52161	52161-02020	Clip
53111	53111-12B40	Grille Sub-Assy, Radiator, Center
53111	53111-12B50	Grille Sub-Assy, Radiator, Center
53112	53112-12150	Grille, Radiator, Lower Rh
53112	53112-12160	Grille, Radiator, Lower Rh
53113	53113-12110	Grille, Radiator, Lower Lh
53113	53113-12120	Grille, Radiator, Lower Lh
53114	53114-12110	Grille, Radiator, Inner
53114	53114-12160	Grille, Radiator, Inner
53121	53121-12180	Moulding, Radiator Grille, Upper Rh
53121	53121-12200	Moulding, Radiator Grille, Upper Rh
53122	53122-12170	Moulding, Radiator Grille, Lower
53122	53122-12180	Moulding, Radiator Grille, Lower
53124	53124-12030	Moulding, Radiator Grille, Upper Lh
53124	53124-12050	Moulding, Radiator Grille, Upper Lh
93560	93560-A4012	SCREW TAPPING

OEM	Part name	Category
52161-02020	Clip	Radiator Grille ([04.2007 - 07.2010] (0704-1007)SED ; (1007- )CVFC)
52161-0K040	Clip	Radiator Grille ([04.2007 - 07.2010] (0704-1007)SED ; (1007- )CVFC)
52161-16010	Clip	Radiator Grille ([04.2007 - 07.2010] (0704-1007)SED ; (1007- )CVFC)
53111-12B40	Grille Sub-Assy, Radiator, Center	Radiator Grille ([04.2007 - 07.2010] (0704-1007)SED ; (1007- )CVFC)
53111-12B50	Grille Sub-Assy, Radiator, Center	Radiator Grille ([04.2007 - 07.2010] (0704-1007)SED ; (1007- )CVFC)
53112-12150	Grille, Radiator, Lower Rh	Radiator Grille ([04.2007 - 07.2010] (0704-1007)SED ; (1007- )CVFC)
53112-12160	Grille, Radiator, Lower Rh	Radiator Grille ([04.2007 - 07.2010] (0704-1007)SED ; (1007- )CVFC)
53113-12110	Grille, Radiator, Lower Lh	Radiator Grille ([04.2007 - 07.2010] (0704-1007)SED ; (1007- )CVFC)
53113-12120	Grille, Radiator, Lower Lh	Radiator Grille ([04.2007 - 07.2010] (0704-1007)SED ; (1007- )CVFC)
53114-12110	Grille, Radiator, Inner	Radiator Grille ([04.2007 - 07.2010] (0704-1007)SED ; (1007- )CVFC)
53114-12160	Grille, Radiator, Inner	Radiator Grille ([04.2007 - 07.2010] (0704-1007)SED ; (1007- )CVFC)
53121-12180	Moulding, Radiator Grille, Upper Rh	Radiator Grille ([04.2007 - 07.2010] (0704-1007)SED ; (1007- )CVFC)
53121-12200	Moulding, Radiator Grille, Upper Rh	Radiator Grille ([04.2007 - 07.2010] (0704-1007)SED ; (1007- )CVFC)
53122-12170	Moulding, Radiator Grille, Lower	Radiator Grille ([04.2007 - 07.2010] (0704-1007)SED ; (1007- )CVFC)
53122-12180	Moulding, Radiator Grille, Lower	Radiator Grille ([04.2007 - 07.2010] (0704-1007)SED ; (1007- )CVFC)
53124-12030	Moulding, Radiator Grille, Upper Lh	Radiator Grille ([04.2007 - 07.2010] (0704-1007)SED ; (1007- )CVFC)
53124-12050	Moulding, Radiator Grille, Upper Lh	Radiator Grille ([04.2007 - 07.2010] (0704-1007)SED ; (1007- )CVFC)
93560-A4012	SCREW TAPPING	Radiator Grille ([04.2007 - 07.2010] (0704-1007)SED ; (1007- )CVFC)
