Search › Model › CE140

CE140

Toyota COROLLA · 2007 · 4,272 parts · 209 categories

4,272 items

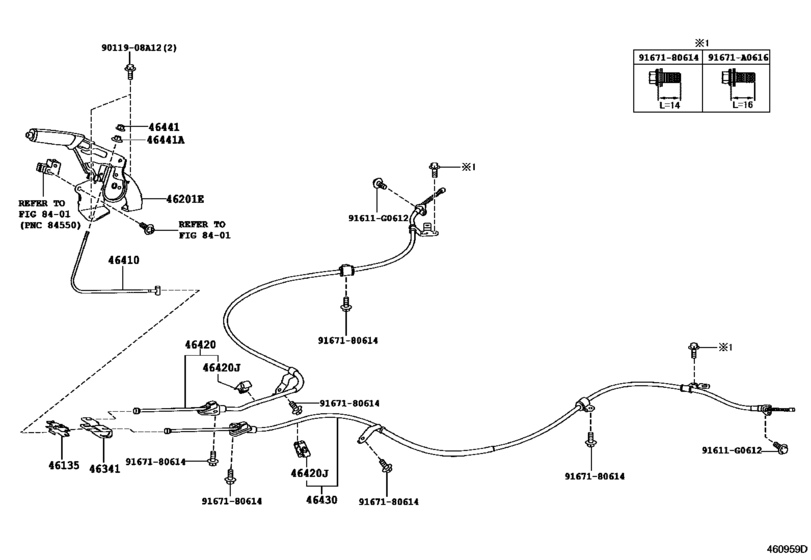

Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI) 29

#	OEM	Part name
46135	46135-12010	Stopper, Parking Brake Cable End
46201	46201-12370-B0	Lever Sub-Assy, Parking Brake
46201	46201-12370-C0	Lever Sub-Assy, Parking Brake
46201	46201-12370-E0	Lever Sub-Assy, Parking Brake
46201	46201-12430-B1	Lever Sub-Assy, Parking Brake
46201	46201-12430-C0	Lever Sub-Assy, Parking Brake
46201	46201-12430-E0	Lever Sub-Assy, Parking Brake
46201	46201-12440-B0	Lever Sub-Assy, Parking Brake
46201	46201-12440-C0	Lever Sub-Assy, Parking Brake
46201	46201-12440-E0	Lever Sub-Assy, Parking Brake
46201	46201-12450-B0	Lever Sub-Assy, Parking Brake
46201	46201-12450-C0	Lever Sub-Assy, Parking Brake
46201	46201-12450-E0	Lever Sub-Assy, Parking Brake
46341	46341-12040	Equalizer, Parking Brake
46410	46410-12300	Cable Assy, Parking Brake, No.1
46410	46410-12320	Cable Assy, Parking Brake, No.1
46420	46420-12670	Cable Assy, Parking Brake, No.2
46420	46420-12680	Cable Assy, Parking Brake, No.2
46420	46420-12681	Cable Assy, Parking Brake, No.2
46420	46402-12020	Clamp, No.3(For Parking Brake Cable)
46430	46430-12560	Cable Assy, Parking Brake, No.3
46430	46430-12570	Cable Assy, Parking Brake, No.3
46430	46430-12571	Cable Assy, Parking Brake, No.3
46441	90179-06299	Nut, Wire Adjusting, No.1
46441	46441-12010	Nut, Wire Adjusting, No.1
91611	91611-G0612	Bolt
91671	91671-A0616	BOLT FLANGE
9011908	90119-08A12	New Genuine Part
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
46135-12010	Stopper, Parking Brake Cable End	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46201-12370-B0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46201-12370-C0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46201-12370-E0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46201-12430-B1	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46201-12430-C0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46201-12430-E0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46201-12440-B0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46201-12440-C0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46201-12440-E0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46201-12450-B0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46201-12450-C0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46201-12450-E0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46341-12040	Equalizer, Parking Brake	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46402-12020	Clamp, No.3(For Parking Brake Cable)	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46410-12300	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46410-12320	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46420-12670	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46420-12680	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46420-12681	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46430-12560	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46430-12570	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46430-12571	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
46441-12010	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
90119-08A12	New Genuine Part	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
90179-06299	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
91611-G0612	Bolt	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
91671-A0616	BOLT FLANGE	Parking Brake & Cable ([08.2007 - ] DRUM BRAKE (0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; ( 0708- )CE140,ZZE141..LHD..XLI)
