Search › Model › CE140

CE140

Toyota COROLLA · 2007 · 4,272 parts · 209 categories

4,272 items

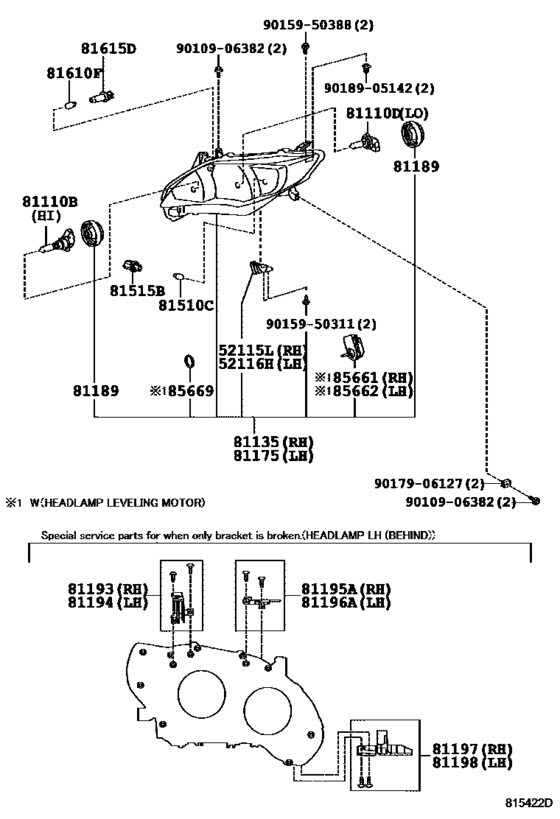

Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI) 46

#	OEM	Part name
52115	52115-12490	Support, Front Bumper Side, Rh
52116	52116-12450	Support, Front Bumper Side, Lh
81110	90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)
81110	90981-13047	Bulb (HB4)
81135	81130-12B40	Unit Assy, Headlamp, Rh
81135	81130-12B50	Unit Assy, Headlamp, Rh
81135	81130-12B60	Unit Assy, Headlamp, Rh
81135	81130-12B70	Unit Assy, Headlamp, Rh
81135	81130-12E60	Unit Assy, Headlamp, Rh
81135	81130-12E70	Unit Assy, Headlamp, Rh
81135	81130-12E80	Unit Assy, Headlamp, Rh
81135	81130-12E90	Unit Assy, Headlamp, Rh
81175	81170-12B40	Unit Assy, Headlamp, Lh
81175	81170-12B50	Unit Assy, Headlamp, Lh
81175	81170-12B60	Unit Assy, Headlamp, Lh
81175	81170-12B70	Unit Assy, Headlamp, Lh
81175	81170-12E60	Unit Assy, Headlamp, Lh
81175	81170-12E70	Unit Assy, Headlamp, Lh
81175	81170-12E80	Unit Assy, Headlamp, Lh
81175	81170-12E90	Unit Assy, Headlamp, Lh
81189	90075-65006	Cover, Headlamp Back, No.1
81193	81193-12050	Retainer, Headlamp Protector, Upper Rh - HEADLAMP PROTECTOR, UPR RH
81193	81193-12120	Retainer, Headlamp Protector, Upper Rh
81194	81194-12050	Retainer, Headlamp Protector, Upper Lh - HEADLAMP PROTECTOR, UPR LH
81194	81194-12110	Retainer, Headlamp Protector, Upper Lh
81195	81195-12060	Retainer, Headlamp Protector, Lower Rh - HEADLAMP PROTECTOR, LWR RH
81195	81195-12190	Retainer, Headlamp Protector, Lower Rh
81196	81196-12060	Retainer, Headlamp Protector, Lower Lh - HEADLAMP PROTECTOR, LWR LH
81196	81196-12190	Retainer, Headlamp Protector, Lower Lh
81197	81197-12060	Bracket, Headlamp, Lower Rh - HEADLAMP, LWR RH
81197	81197-12130	Bracket, Headlamp, Lower Rh
81198	81198-12060	Bracket, Headlamp, Lwr Lh
81198	81198-12140	Bracket, Headlamp, Lwr Lh
81510	90981-15021	Bulb (For Front Turn Signal Lamp)
81515	90075-60028	Socket, Headlamp, Bulb
81610	99132-12050	Bulb (12V 5W)
81610	90080-81053	Bulb(For Clearance Lamp)
81615	90075-60077	Clearance Lamp Socket
85661	85661-12010	Motor, Headlamp Leveling, Rh
85669	90075-99120	Packing, Headlamp Leveling Motor Base
9010906382	90109-06382	BOLT
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9015950388	90159-50388	SCREW, W/WASHER
9017906127	90179-06127	Bracket, Front Licence Plate Mounting
9018905142	90189-05142	GROMMET, SCREW

OEM	Part name	Category
52115-12490	Support, Front Bumper Side, Rh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
52116-12450	Support, Front Bumper Side, Lh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81130-12B40	Unit Assy, Headlamp, Rh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81130-12B50	Unit Assy, Headlamp, Rh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81130-12B60	Unit Assy, Headlamp, Rh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81130-12B70	Unit Assy, Headlamp, Rh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81130-12E60	Unit Assy, Headlamp, Rh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81130-12E70	Unit Assy, Headlamp, Rh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81130-12E80	Unit Assy, Headlamp, Rh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81130-12E90	Unit Assy, Headlamp, Rh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81170-12B40	Unit Assy, Headlamp, Lh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81170-12B50	Unit Assy, Headlamp, Lh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81170-12B60	Unit Assy, Headlamp, Lh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81170-12B70	Unit Assy, Headlamp, Lh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81170-12E60	Unit Assy, Headlamp, Lh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81170-12E70	Unit Assy, Headlamp, Lh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81170-12E80	Unit Assy, Headlamp, Lh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81170-12E90	Unit Assy, Headlamp, Lh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81193-12050	Retainer, Headlamp Protector, Upper Rh - HEADLAMP PROTECTOR, UPR RH	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81193-12120	Retainer, Headlamp Protector, Upper Rh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81194-12050	Retainer, Headlamp Protector, Upper Lh - HEADLAMP PROTECTOR, UPR LH	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81194-12110	Retainer, Headlamp Protector, Upper Lh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81195-12060	Retainer, Headlamp Protector, Lower Rh - HEADLAMP PROTECTOR, LWR RH	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81195-12190	Retainer, Headlamp Protector, Lower Rh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81196-12060	Retainer, Headlamp Protector, Lower Lh - HEADLAMP PROTECTOR, LWR LH	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81196-12190	Retainer, Headlamp Protector, Lower Lh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81197-12060	Bracket, Headlamp, Lower Rh - HEADLAMP, LWR RH	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81197-12130	Bracket, Headlamp, Lower Rh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81198-12060	Bracket, Headlamp, Lwr Lh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
81198-12140	Bracket, Headlamp, Lwr Lh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
85661-12010	Motor, Headlamp Leveling, Rh	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
90075-60028	Socket, Headlamp, Bulb	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
90075-60077	Clearance Lamp Socket	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
90075-65006	Cover, Headlamp Back, No.1	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
90075-99120	Packing, Headlamp Leveling Motor Base	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
90080-81053	Bulb(For Clearance Lamp)	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
90109-06382	BOLT	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
90159-50311	SCREW	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
90159-50388	SCREW, W/WASHER	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
90159-A0034	SCREW WWASHER	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
90179-06127	Bracket, Front Licence Plate Mounting	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
90189-05142	GROMMET, SCREW	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
90981-13047	Bulb (HB4)	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
90981-15021	Bulb (For Front Turn Signal Lamp)	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
99132-12050	Bulb (12V 5W)	Headlamp ([07.2010 - ] HALOGEN HEADLAMP (1007- )ZRE14#,ZZE142 ; (1007- )CE140,NZE1 41..LX,XLI)
