CE140

Toyota COROLLA · 2007 · 4,272 parts · 209 categories
CE140 ×

← Back to categories

4,272 items

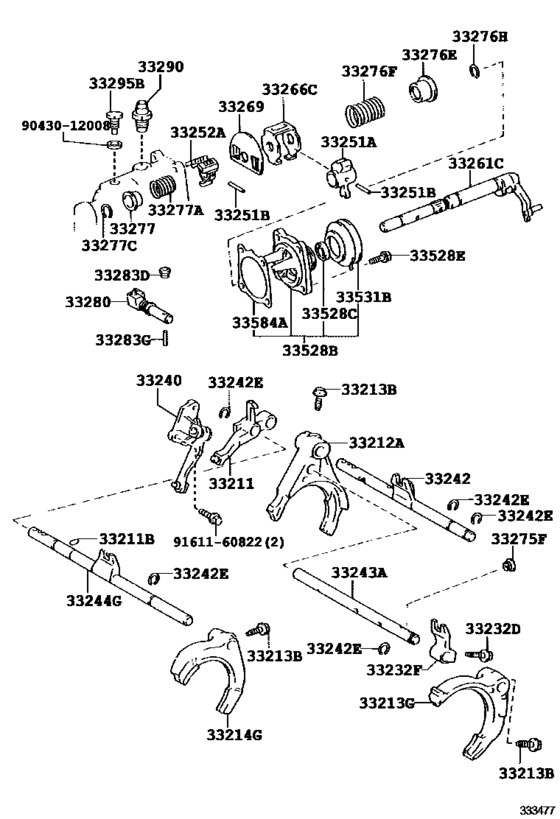

Gear Shift Fork & Lever Shaft (Mtm) ([08.2007 - ] E351 (0708- )CE140) 37
#OEMPart name
33211 33211-20020 Fork, Reverse Shift
33211 90361-08005 Roller(For Reverse Shift Fork)
33212 33212-12030 Fork, Gear Shift, No.1
33213 90105-07002 Bolt(For Shift Fork Set)
33213 33220-28020 Fork, Gear Shift, No.2
33214 33214-12020 Fork, Gear Shift, No.3
33232 33232-12030 Head, Gear Shift, No.1
33240 33240-28010 Bracket Assy, Reverse Shift Arm
33242 33242-21010 Shaft, Gear Shift Fork, No.1
33242 90520-13002 Ring, Shaft Snap (For Shift Fork Shaft)
33243 33243-28040 Shaft, Gear Shift Fork, No.2
33244 33244-42010 Shaft, Gear Shift Fork, No.3
33251 33251-42010 Lever, Shift, Inner No.1
33251 90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)
33252 33252-42010 Lever, Shift, Inner No.2
33261 33261-12150 Shaft, Shift & Select Lever
33261 33261-12151 Shaft, Shift & Select Lever
33266 33266-28011 Plate, Shift Inter Lock
33269 33269-12010 Cover, Shift Inter Lock Plate
33276 33276-20030 Seat, Select Spring, No.1
33276 90501-14196 Spring, Compression, No.1 (For Select Return)
33276 90520-15003 Ring, Shaft Snap (For Select Spring No.1 Seat)
33277 33277-17010 Seat, Select Spring, No.2
33277 90501-14175 Spring, Compression, No.2 (For Select Return)
33277 90520-12003 Ring(For Reverse Shift Head)
33280 33280-20041 Pin Assy, Reverse Restrict
33283 90341-10065 Plug, Straight, No.1
33283 90254-05003 Pin, Slotted Spring(For Shift Fork Set)
33290 33290-42010 Ball Assy, Lock, No.1
33295 33295-42010 Pin, Shift Gate
33528 33506-20320 Cover, Control Shaft
33528 90311-18013 Seal, Oil (For Control Shaft Cover)
33528 90119-10288 Bolt (For Control Shaft Cover)
33531 33531-12020 Boot, Dust (For Shift & Select Lever Shaft)
33584 33584-20020 Gasket, Control Shift Lever Retainer
9043012008 90430-12008 Gasket (For Shift Inter Lock Plate)
9161160822 91611-60822 Bolt
