Search › Model › CE140

CE140

Toyota COROLLA · 2007 · 4,272 parts · 209 categories
CE140 ×

← Back to categories

4,272 items

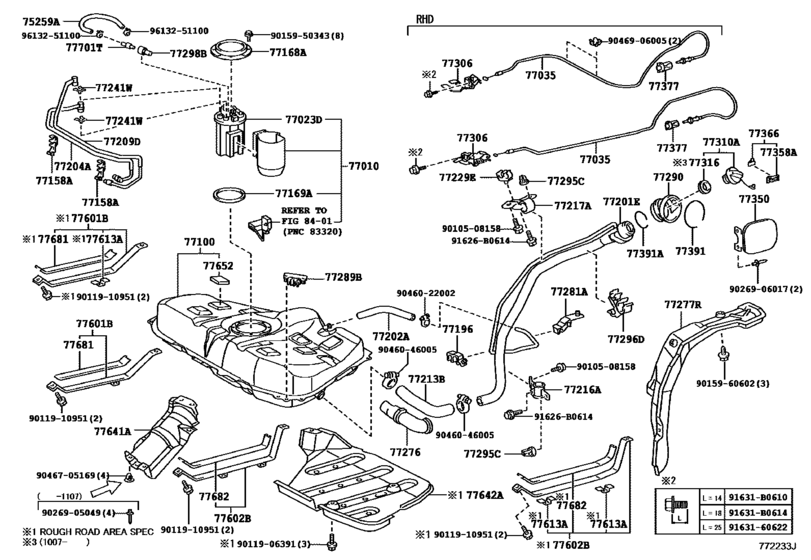

Fuel Tank & Tube ([08.2007 - ] FUEL TANK (0708- )CE140) 70
#OEMPart name
75259 95337-06020 Hose, Differential Pressure Control
77010 77010-12390 Tube Assy, Fuel Tank Vent
77023 77023-12070 Filter Sub-Assy, Fuel Suction Tube
77035 77035-12520 Cable Sub-Assy, Fuel Lid Lock Control
77035 77035-12540 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-12B40 Tank Assy, Fuel
77158 77158-20040 Support, Tank Suction Tube
77168 77168-52020 Plate, Fuel Tank Vent Tube Set
77169 77169-52010 Gasket, Fuel Suction Tube Set
77196 77196-12060 Clamp, Evaporation Vent Tube, No.1
77201 77201-12740 Pipe Sub-Assy, Fuel Tank Filler
77202 95313-13032 Hose, Fuel, No.1 (For Breather Tube)
77202 95313-13034 Hose, Fuel, No.1 (For Breather Tube)
77204 77204-12150 Tube, Fuel Tank Return
77209 77209-12240 Tube Sub-Assy, Fuel Tank Main
77213 77213-32090 Hose, Fuel Tank To Filler Pipe
77216 77216-32060 Support, Fuel Tank Filler Pipe, No.1
77217 77217-12110 Support, Fuel Tank Filler Pipe, No.2
77229 77229-12100 Clamp, Breather Tube
77241 77241-33011 Clip, Tube Joint
77241 77241-60320 Clip, Tube Joint
77276 77276-12050 Protector, Fuel Hose
77276 77276-12120 Protector, Fuel Hose
77276 77276-12130 Protector, Fuel Hose
77277 77277-12210 Protector, Fuel Tank Filler Pipe
77281 77281-12110 Clamp, Fuel Filler Pipe
77289 77289-52100 Clamp, Fuel Tube, No.3
77290 77291-12210 Shield Assy, Fuel Tank Filler Pipe
77295 77295-12070 Grommet, Fuel Tube
77296 77296-12070 Plate, Fuel Tube Support
77298 77298-42010 Clamp, Fuel Tube, No.4 - FUEL TUBE, NO.5
77306 64606-12050 Lever Sub-Assy, Luggage Door Lock Open
77306 64606-12060 Lever Sub-Assy, Luggage Door Lock Open
77310 77300-20020 Cap Assy, Fuel Tank
77310 77300-52030 Cap Assy, Fuel Tank
77316 77316-52040 Gasket, Fuel Tank Cap
77350 77350-12510 Lid Assy, Fuel Filler Opening
77358 77358-30060 Stopper, Fuel Filler Opening Lid
77366 77360-30080 Spring Assy, Fuel Filler Opening Lid
77377 77377-35010 Retainer, Fuel Filler Opening Lid Lock
77391 77391-12060 Ring, Fuel Inlet Box
77391 77391-12020 Ring, Fuel Inlet Box
77601 77601-12350 Band Sub-Assy, Fuel Tank, No.1 Rh
77601 77601-12400 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-12260 Band Sub-Assy, Fuel Tank, No.1 Lh
77602 77602-12310 Band Sub-Assy, Fuel Tank, No.1 Lh
77613 77613-16030 Bracket, Fuel Tank Band, No.1
77641 77641-12160 Protector, Fuel Tank, No.1
77642 77642-12041 Protector, Fuel Tank, No.2
77652 77651-20090 Cushion, Fuel Tank, No.1
77681 77616-68010 Seat, Fuel Tank Band, Rh
77682 77681-12070 Seat, Fuel Tank Band, Rh
77701 90917-10091 Valve, Check (For Main Fuel Tank)
91626 91626-B0614 BOLT, W/WASHER
91631 91631-B0610 BOLTWWASHER
91631 91631-B0614 BOLT WWASHER
9010508158 90105-08158 Plug(For Fuel Sub-Tank)
9011906391 90119-06391 Bolt, W/Washer
9011910951 90119-10951 BOLT WWASHER
9015950343 90159-50343 SCREW, W-WASHER
9015960602 90159-60602 SCREW
9026905049 90269-05049 RIVET
9026906017 90269-06017 RIVET
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046005 90460-46005 Clamp (For Fuel Filler Pipe)
9046705169 90467-05169 New Genuine Part
9046906005 90469-06005 Clamp(For Hood Lock Control Cable)
9163160622 91631-60622 Screw
9613251100 96132-51100 Clip (For Hose)
