CE140

Toyota COROLLA · 2007 · 4,272 parts · 209 categories

4,272 items

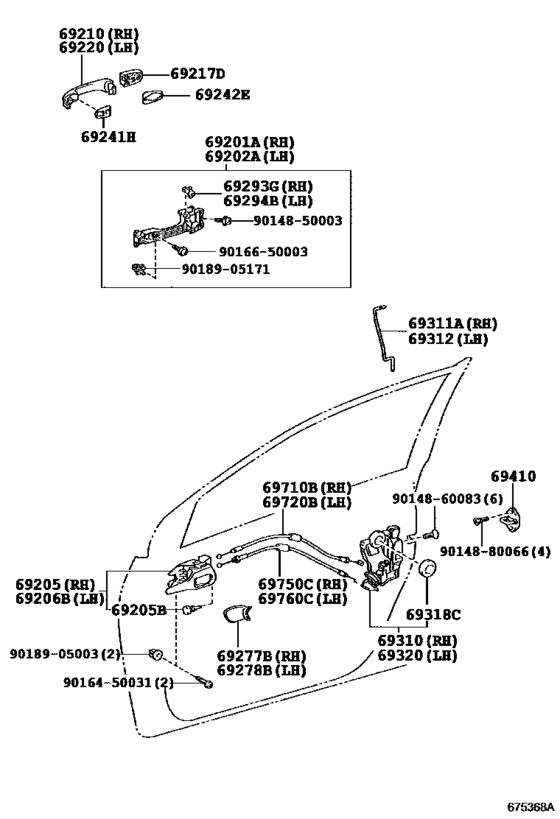

Front Door Lock & Handle ([08.2007 - ] (0708- )SED) 71

#	OEM	Part name
69201	69201-52040	Frame Sub-Assy, Front Door Outside Handle, Rh
69202	69202-52020	Frame Sub-Assy, Front Door Outside Handle, Lh
69205	69205-12220-B4	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-12230-B1	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-12230-E0	Handle Sub-Assy, Front Door Inside, Rh
69205	90541-04027	Cushion(For Front Door Inside Handle)
69206	69206-12220-B4	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-12230-B1	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-12230-E0	Handle Sub-Assy, Front Door Inside, Lh
69210	69211-12220-A0	Handle Assy, Front Door, Outside Rh
69210	69211-12220-C2	Handle Assy, Front Door, Outside Rh
69210	69211-12220-H5	Handle Assy, Front Door, Outside Rh
69210	69211-12220-L9	Handle Assy, Front Door, Outside Rh
69210	69211-12220-P5	Handle Assy, Front Door, Outside Rh
69210	69211-12220-P6	Handle Assy, Front Door, Outside Rh
69210	69211-12220-R2	Handle Assy, Front Door, Outside Rh
69210	69211-12220-V2	Handle Assy, Front Door, Outside Rh
69210	69211-12220-X4	Handle Assy, Front Door, Outside Rh
69210	69211-42010	Handle Assy, Front Door, Outside Rh
69217	69217-12040-A0	Cover, Front Door Outside Handle
69217	69217-12040-C2	Cover, Back Door Outside Handle
69217	69217-12040-D9	Cover, Back Door Outside Handle
69217	69217-12040-H4	Cover, Front Door Outside Handle
69217	69217-12040-J9	Cover, Front Door Outside Handle
69217	69217-12040-L5	Cover, Back Door Outside Handle
69217	69217-12040-P0	Cover, Back Door Outside Handle
69217	69217-12040-P1	Cover, Back Door Outside Handle
69217	69217-12040-B4	Cover, Front Door Outside Handle
69217	69217-12040-V1	Cover, Front Door Outside Handle
69217	69217-42010	Cover, Front Door Outside Handle
69217	69217-42020-A3	Cover, Front Door Outside Handle
69217	69217-42020-C2	Cover, Front Door Outside Handle
69217	69217-42020-H5	Cover, Front Door Outside Handle
69217	69217-42020-M1	Cover, Front Door Outside Handle, Rh
69217	69217-42020-P5	Cover, Front Door Outside Handle
69217	69217-42020-P6	Cover, Front Door Outside Handle
69217	69217-42020-R4	Cover, Front Door Outside Handle
69217	69217-42020-V4	Cover, Front Door Outside Handle
69217	69217-42020-X4	Cover, Front Door Outside Handle
69241	69241-42020	Pad, Front Door Outside Handle, Rh
69242	69242-42010	Pad, Front Door Outside Handle, Lh
69242	69242-52020	Pad, Front Door Outside Handle, Rear
69277	69277-12140-B1	Bezel, Front Door Inside Handle, Rh
69277	69277-12140-E0	Bezel, Front Door Inside Handle, Rh
69278	69278-12140-B1	Bezel, Front Door Inside Handle, Lh
69278	69278-12140-E0	Bezel, Front Door Inside Handle, Lh
69293	69293-12030	Snap, Front Door Outside Handle
69294	69293-12040	Snap, Front Door Outside Handle
69310	69030-12490	Lock Assy, Front Door W/motor, Rh - FRONT DOOR, RH
69310	69030-28171	Lock Assy, Front Door, Rh - FRONT DOOR W/MOTOR, RH
69310	69310-12670	Lock Assy, Front Door, Rh
69310	69030-42210	Lock Assy, Front Door W/motor, Rh
69310	69310-12680	Lock Assy, Front Door, Rh
69311	69311-12160	Rod, Front Door Lock Open, Rh
69312	69312-12160	Rod, Front Door Lock Open, Lh
69318	69318-51010	Seal, Front Door Lock Hole, Rh
69320	69040-42241	Lock Assy, Front Door W/motor, Lh - FRONT DOOR, LH
69320	69320-12660	Lock Assy, Front Door, Lh
69320	69040-12490	Lock Assy, Front Door W/motor, Lh
69320	69040-28200	Lock Assy, Front Door, Lh - FRONT DOOR W/MOTOR, LH
69320	69320-12670	Lock Assy, Front Door, Lh
69410	69410-33010	Plate Assy, Front Door Lock Striker
69710	69710-12120	Cable Assy, Front Door Lock Remote Control, Rh
69750	69750-12150	Cable Assy, Front Door Inside Locking, Rh
9014850003	90148-50003	Screw Hex Lobular
9014860083	90148-60083	SCREW HEXALOBULAR
9014880066	90148-80066	SCREW HEXALOBULAR
9016450031	90164-50031	SCREW BINDING
9016650003	90166-50003	New Genuine Part
9018905003	90189-05003	CLIP
9018905171	90189-05171	New Genuine Part

OEM	Part name	Category
69030-12490	Lock Assy, Front Door W/motor, Rh - FRONT DOOR, RH	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69030-28171	Lock Assy, Front Door, Rh - FRONT DOOR W/MOTOR, RH	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69030-42210	Lock Assy, Front Door W/motor, Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69040-12490	Lock Assy, Front Door W/motor, Lh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69040-28200	Lock Assy, Front Door, Lh - FRONT DOOR W/MOTOR, LH	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69040-42241	Lock Assy, Front Door W/motor, Lh - FRONT DOOR, LH	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69201-52040	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69202-52020	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69205-12220-B4	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69205-12230-B1	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69205-12230-E0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69206-12220-B4	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69206-12230-B1	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69206-12230-E0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69211-12220-A0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69211-12220-C2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69211-12220-H5	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69211-12220-L9	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69211-12220-P5	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69211-12220-P6	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69211-12220-R2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69211-12220-V2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69211-12220-X4	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69211-42010	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69217-12040-A0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69217-12040-B4	Cover, Front Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69217-12040-C2	Cover, Back Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69217-12040-D9	Cover, Back Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69217-12040-H4	Cover, Front Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69217-12040-J9	Cover, Front Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69217-12040-L5	Cover, Back Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69217-12040-P0	Cover, Back Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69217-12040-P1	Cover, Back Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69217-12040-V1	Cover, Front Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69217-42010	Cover, Front Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69217-42020-A3	Cover, Front Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69217-42020-C2	Cover, Front Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69217-42020-H5	Cover, Front Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69217-42020-M1	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69217-42020-P5	Cover, Front Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69217-42020-P6	Cover, Front Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69217-42020-R4	Cover, Front Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69217-42020-V4	Cover, Front Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69217-42020-X4	Cover, Front Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69241-42020	Pad, Front Door Outside Handle, Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69242-42010	Pad, Front Door Outside Handle, Lh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69242-52020	Pad, Front Door Outside Handle, Rear	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69277-12140-B1	Bezel, Front Door Inside Handle, Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69277-12140-E0	Bezel, Front Door Inside Handle, Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69278-12140-B1	Bezel, Front Door Inside Handle, Lh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69278-12140-E0	Bezel, Front Door Inside Handle, Lh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69293-12030	Snap, Front Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69293-12040	Snap, Front Door Outside Handle	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69310-12670	Lock Assy, Front Door, Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69310-12680	Lock Assy, Front Door, Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69311-12160	Rod, Front Door Lock Open, Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69312-12160	Rod, Front Door Lock Open, Lh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69318-51010	Seal, Front Door Lock Hole, Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69320-12660	Lock Assy, Front Door, Lh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69320-12670	Lock Assy, Front Door, Lh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69410-33010	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69710-12120	Cable Assy, Front Door Lock Remote Control, Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
69750-12150	Cable Assy, Front Door Inside Locking, Rh	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
90148-50003	Screw Hex Lobular	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
90148-60083	SCREW HEXALOBULAR	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
90148-80066	SCREW HEXALOBULAR	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
90164-50031	SCREW BINDING	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
90166-50003	New Genuine Part	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
90189-05003	CLIP	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
90189-05171	New Genuine Part	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
90541-04027	Cushion(For Front Door Inside Handle)	Front Door Lock & Handle ([08.2007 - ] (0708- )SED)
