CE140

Toyota COROLLA · 2007 · 4,272 parts · 209 categories

4,272 items

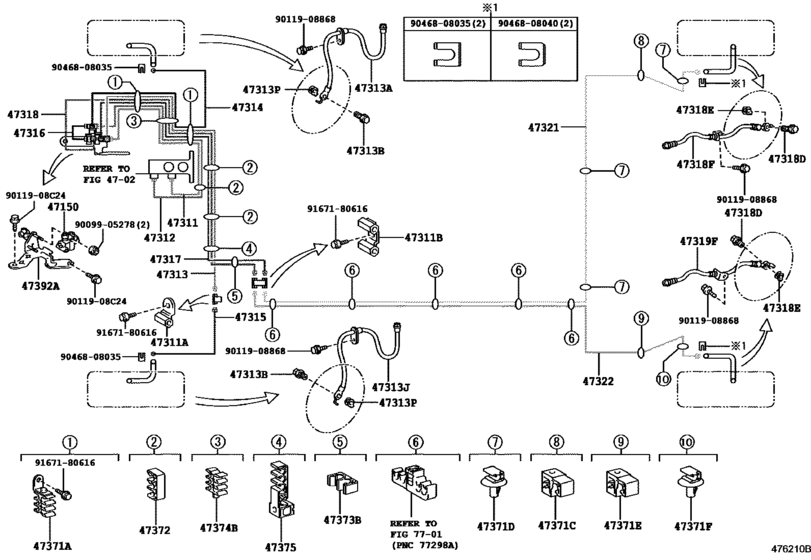

Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI) 42

#	OEM	Part name
47150	47150-12240	Valve Assy, Proportioning
47311	47311-12A70	Tube, Front Brake, No.1
47311	47311-12B00	Tube, Front Brake, No.1
47311	90412-10272	Way, No.1(For Front Brake Tube)
47311	90412-10260	Way, No.1(For Front Brake Tube)
47312	47312-12600	Tube, Front Brake, No.2
47312	47312-12630	Tube, Front Brake, No.2
47313	47313-12770	Tube, Front Brake, No.3
47313	47313-12800	Tube, Front Brake, No.3
47313	90947-02E76	Hose, Flexible, No.1(For Front)
47313	90947-02G77	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90947-02E78	Hose, Flexible, No.2(For Front)
47313	90947-02G78	Hose, Flexible, No.2(For Front)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-12650	Tube, Front Brake, No.4
47314	47314-12680	Tube, Front Brake, No.4
47315	47315-12610	Tube, Front Brake, No.5
47316	47316-12370	Tube, Front Brake, No.6
47317	47317-12410	Tube, Front Brake, No.7
47317	47317-12440	Tube, Front Brake, No.7
47318	47318-12550	Tube, Front Brake, No.8
47318	47318-12580	Tube, Front Brake, No.8
47318	90947-02E79	Hose, Flexible(For Rear Rh)
47319	90947-02E80	Hose, Flexible(For Rear Lh)
47321	47321-12350	Tube, Rear Brake, No.1
47322	47322-12510	Tube, Rear Brake, No.2
47371	47371-12240	Clamp, Brake Tube, No.1
47371	90949-01C82	Clamp(For Clutch Master Cylinder Tube)
47371	90949-01D17	Clamp(For Clutch Master Cylinder Tube)
47372	90464-00857	Clamp, Brake Tube, No.1
47373	90464-00904	Clamp, Height Control Tube No.9
47374	90949-01C51	Clamp, Brake Tube, No.1
47375	90949-01D27	Clamp, Brake Tube, No.3
47392	47391-12040	Way, Brake Tube, No.2
9011908	90119-08C24	New Genuine Part
9009905278	90099-05278	New Genuine Part
9011908868	90119-08868	BOLT WWASHER
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9046808040	90468-08040	CLIP
9167180616	91671-80616	BOLT FLANGE

OEM	Part name	Category
47150-12240	Valve Assy, Proportioning	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
47311-12A70	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
47311-12B00	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
47312-12600	Tube, Front Brake, No.2	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
47312-12630	Tube, Front Brake, No.2	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
47313-12770	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
47313-12800	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
47314-12650	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
47314-12680	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
47315-12610	Tube, Front Brake, No.5	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
47316-12370	Tube, Front Brake, No.6	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
47317-12410	Tube, Front Brake, No.7	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
47317-12440	Tube, Front Brake, No.7	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
47318-12550	Tube, Front Brake, No.8	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
47318-12580	Tube, Front Brake, No.8	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
47321-12350	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
47322-12510	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
47371-12240	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
47391-12040	Way, Brake Tube, No.2	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90099-05278	New Genuine Part	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90119-08C24	New Genuine Part	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90412-10260	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90412-10272	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90464-00857	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90464-00904	Clamp, Height Control Tube No.9	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90468-08035	CLIP	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90468-08040	CLIP	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90947-02E76	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90947-02E78	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90947-02E79	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90947-02E80	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90947-02G77	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90947-02G78	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90949-01C51	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90949-01C82	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90949-01D17	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
90949-01D27	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
91671-80616	BOLT FLANGE	Brake Tube & Clamp ([08.2007 - ] W/O(ABS) (0708- )CE140,NZE141,ZZE141..RHD..LX,XLI)
