Search › Model › CE140

CE140

Toyota COROLLA · 2007 · 4,272 parts · 209 categories

4,272 items

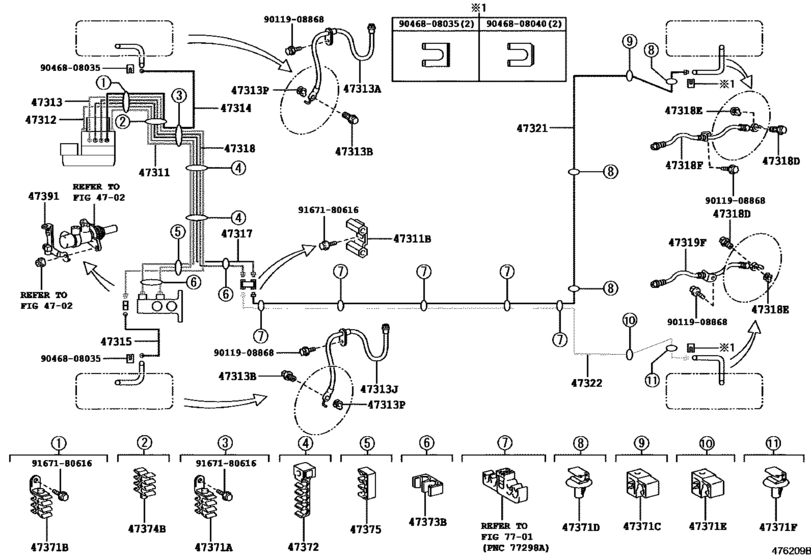

Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD) 45

#	OEM	Part name
47311	47311-12A80	Tube, Front Brake, No.1
47311	47311-12B10	Tube, Front Brake, No.1
47311	90412-10260	Way, No.1(For Front Brake Tube)
47312	47312-12610	Tube, Front Brake, No.2
47312	47312-12640	Tube, Front Brake, No.2
47313	47313-12780	Tube, Front Brake, No.3
47313	47313-12810	Tube, Front Brake, No.3
47313	90947-02E76	Hose, Flexible, No.1(For Front)
47313	90947-02G77	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90947-02E78	Hose, Flexible, No.2(For Front)
47313	90947-02G78	Hose, Flexible, No.2(For Front)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-12660	Tube, Front Brake, No.4
47314	47314-12690	Tube, Front Brake, No.4
47315	47315-12620	Tube, Front Brake, No.5
47317	47317-12420	Tube, Front Brake, No.7
47317	47317-12450	Tube, Front Brake, No.7
47317	47317-12500	Tube, Front Brake, No.7
47317	47317-12501	Tube, Front Brake, No.7
47317	47317-12510	Tube, Front Brake, No.7
47317	47317-12511	Tube, Front Brake, No.7
47318	47318-12560	Tube, Front Brake, No.8
47318	47318-12590	Tube, Front Brake, No.8
47318	47318-12640	Tube, Front Brake, No.8
47318	47318-12650	Tube, Front Brake, No.8
47318	90947-02E75	Hose, Flexible(For Rear Rh)
47318	90947-02E79	Hose, Flexible(For Rear Rh)
47319	90947-02E80	Hose, Flexible(For Rear Lh)
47321	47321-12350	Tube, Rear Brake, No.1
47322	47322-12510	Tube, Rear Brake, No.2
47371	90949-04050	Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.6
47371	47371-12240	Clamp, Brake Tube, No.1
47371	90949-01C82	Clamp(For Clutch Master Cylinder Tube)
47371	90949-01D17	Clamp(For Clutch Master Cylinder Tube)
47372	90949-01D28	Clamp, Brake Tube, No.4
47373	90464-00904	Clamp, Height Control Tube No.9
47374	90949-01C51	Clamp, Brake Tube, No.1
47375	90464-00857	Clamp, Brake Tube, No.1
47391	47391-12050	Way, Brake Tube
9011908868	90119-08868	BOLT WWASHER
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9046808040	90468-08040	CLIP
9167180616	91671-80616	BOLT FLANGE

OEM	Part name	Category
47311-12A80	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47311-12B10	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47312-12610	Tube, Front Brake, No.2	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47312-12640	Tube, Front Brake, No.2	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47313-12780	Tube, Front Brake, No.3	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47313-12810	Tube, Front Brake, No.3	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47314-12660	Tube, Front Brake, No.4	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47314-12690	Tube, Front Brake, No.4	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47315-12620	Tube, Front Brake, No.5	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47317-12420	Tube, Front Brake, No.7	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47317-12450	Tube, Front Brake, No.7	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47317-12500	Tube, Front Brake, No.7	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47317-12501	Tube, Front Brake, No.7	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47317-12510	Tube, Front Brake, No.7	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47317-12511	Tube, Front Brake, No.7	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47318-12560	Tube, Front Brake, No.8	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47318-12590	Tube, Front Brake, No.8	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47318-12640	Tube, Front Brake, No.8	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47318-12650	Tube, Front Brake, No.8	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47321-12350	Tube, Rear Brake, No.1	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47322-12510	Tube, Rear Brake, No.2	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47371-12240	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
47391-12050	Way, Brake Tube	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
90412-10260	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
90464-00857	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
90464-00904	Clamp, Height Control Tube No.9	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
90468-08035	CLIP	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
90468-08040	CLIP	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
90947-02E75	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
90947-02E76	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
90947-02E78	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
90947-02E79	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
90947-02E80	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
90947-02G77	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
90947-02G78	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
90949-01C51	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
90949-01C82	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
90949-01D17	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
90949-01D28	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
90949-04050	Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.6	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
91671-80616	BOLT FLANGE	Brake Tube & Clamp ([07.2010 - ] (0708- )ZZE142..LHD ; (1007- )CE140,ZRE14# ..LHD)
