CE121

Toyota COROLLA-AXIO-FIELDER · 2000 · 4,816 parts · 231 categories

4,816 items

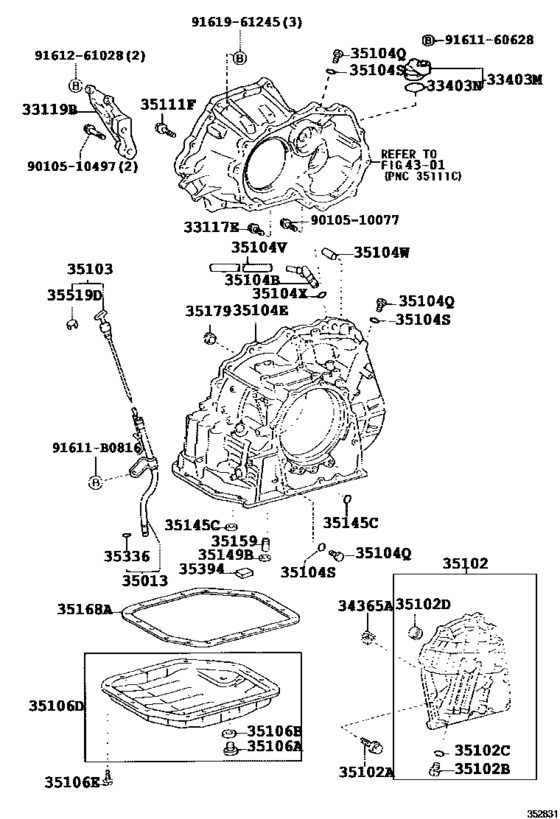

Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC) 42

#	OEM	Part name
33117	91641-H0820	Bolt
33119	33119-12120	Plate, Stiffener, Lh(Atm)
33403	33403-20230	Cover Sub-Assy, Speedometer Driven Hole
33403	96711-24018	Ring, O
34365	34365-52012	Retainer, Outer Race
35013	35013-12510	Tube Sub-Assy, Transmission Oil Filler
35102	35102-52020	Cover Sub-Assy, Transaxle Rear
35102	90105-08365	Bolt (For Transaxle Rear Cover Setting)
35102	90341-08001	Plug, Transaxle Case, No.1
35102	90301-06196	O Ring, Transaxle Case, No.1
35102	90364-14007	Bearing, Needle Roller(For Transaxle Rear Cover)
35103	35103-12400	Gage Sub-Assy, Transmission Oil Level
35104	90930-03164	Plug, Breather(For Transaxle)
35104	90930-03166	Plug, Breather, No.1 (Atm)
35104	35104-20130	Case Sub-Assy, Automatic Transaxle
35104	35104-20132	Case Sub-Assy, Automatic Transaxle
35104	35165-52030	Plate, Transmission Case, No.1
35104	90301-06008	Ring, O (For Transfer Oil Strainer)
35104	90301-10189	Ring, O(For Oil Cooler Tube Union)
35104	35121-32020	Hose (For Breather Plug)
35104	90250-10017	Pin, Straight(For Clutch Housing Set)
35104	90301-06005	Ring, O (For Breather Plug)
35106	90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)
35106	90430-18008	Gasket
35106	90430-T0021	Gasket(For Manual Transmission Filler Plug)
35106	35106-52020	Pan Sub-Assy, Automatic Transaxle Oil
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35111	90105-08071	Bolt (For Transaxle Rear Cover Setting)
35145	35145-21010	Gasket, Transaxle Case
35149	35149-21010	Gasket, Transaxle Case 2Nd Brake
35159	35159-21010	Gasket, Brake Drum
35168	35168-52020	Gasket, Automatic Transaxle Oil Pan
35179	35179-32010	Gasket, Overdrive Brake
35336	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
35519	35519-20030	Label, Automatic Transmission Information
91611	91611-B0816	Bolt
9010510077	90105-10077	Bolt(For Transaxle Case Protector)
9010510497	90105-10497	New Genuine Part
9161160628	91611-60628	Bolt, Hexagon
9161261028	91612-61028	Bolt(For Transaxle Case & Engine Setting)
9161961245	91619-61245	Bolt(For Transaxle & Engine Setting)

OEM	Part name	Category
33119-12120	Plate, Stiffener, Lh(Atm)	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
33403-20230	Cover Sub-Assy, Speedometer Driven Hole	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
34365-52012	Retainer, Outer Race	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
35013-12510	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
35102-52020	Cover Sub-Assy, Transaxle Rear	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
35103-12400	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
35104-20130	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
35104-20132	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
35106-52020	Pan Sub-Assy, Automatic Transaxle Oil	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
35121-32020	Hose (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
35145-21010	Gasket, Transaxle Case	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
35149-21010	Gasket, Transaxle Case 2Nd Brake	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
35159-21010	Gasket, Brake Drum	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
35165-52030	Plate, Transmission Case, No.1	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
35168-52020	Gasket, Automatic Transaxle Oil Pan	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
35179-32010	Gasket, Overdrive Brake	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
35519-20030	Label, Automatic Transmission Information	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
90105-08071	Bolt (For Transaxle Rear Cover Setting)	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
90105-08365	Bolt (For Transaxle Rear Cover Setting)	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
90105-10077	Bolt(For Transaxle Case Protector)	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
90105-10497	New Genuine Part	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
90250-10017	Pin, Straight(For Clutch Housing Set)	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
90301-06005	Ring, O (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
90301-06008	Ring, O (For Transfer Oil Strainer)	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
90364-14007	Bearing, Needle Roller(For Transaxle Rear Cover)	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
90430-18008	Gasket	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
90930-03164	Plug, Breather(For Transaxle)	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
90930-03166	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
91611-60628	Bolt, Hexagon	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
91611-B0816	Bolt	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
91612-61028	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
91619-61245	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
91641-H0820	Bolt	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
96711-24018	Ring, O	Transmission Case & Oil Pan (Atm) ([08.2000 - ] U341E (0008- )CE121..4FC)
