CE121

Toyota COROLLA-AXIO-FIELDER · 2000 · 4,816 parts · 231 categories

← Back to categories

4,816 items

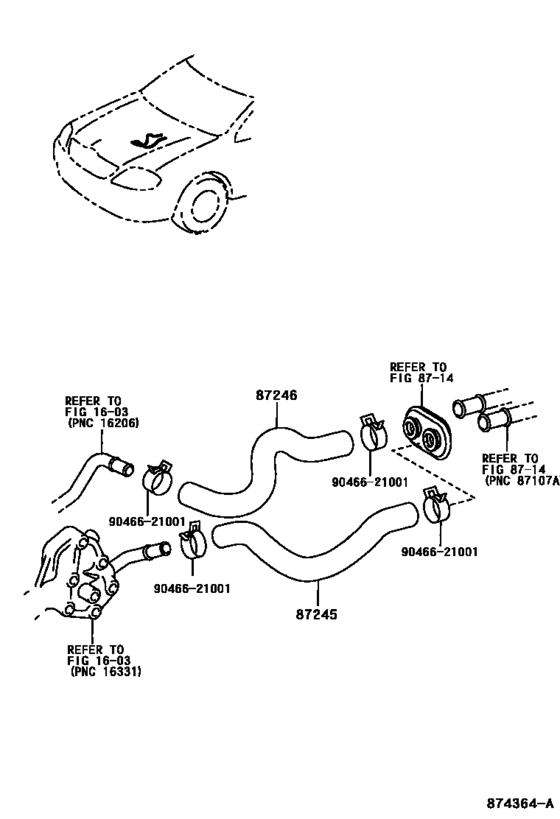

Heating & Air Conditioning - Water Piping ([08.2000 - 04.2004] (0008-0404)CE121) 5

#	OEM	Part name
87245	87245-1E110	Hose, Heater Water, Inlet
87245	87245-1E111	Hose, Heater Water, Inlet
87246	87245-1E120	Hose, Heater Water, Outlet
87246	87245-1E121	Hose, Heater Water, Outlet
9046621001	90466-21001	Clamp Or Clip, Hose(For Water By-Pass Hose)

OEM	Part name	Category
87245-1E110	Hose, Heater Water, Inlet	Heating & Air Conditioning - Water Piping ([08.2000 - 04.2004] (0008-0404)CE121)
87245-1E111	Hose, Heater Water, Inlet	Heating & Air Conditioning - Water Piping ([08.2000 - 04.2004] (0008-0404)CE121)
87245-1E120	Hose, Heater Water, Outlet	Heating & Air Conditioning - Water Piping ([08.2000 - 04.2004] (0008-0404)CE121)
87245-1E121	Hose, Heater Water, Outlet	Heating & Air Conditioning - Water Piping ([08.2000 - 04.2004] (0008-0404)CE121)
90466-21001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Heating & Air Conditioning - Water Piping ([08.2000 - 04.2004] (0008-0404)CE121)

Source: Public OEM parts-catalog data
Variants: 2 / 5
Category: 231
Collected: 2026-08-02
