CE121

Toyota COROLLA-AXIO-FIELDER · 2000 · 4,816 parts · 231 categories
CE121 ×

← Back to categories

4,816 items

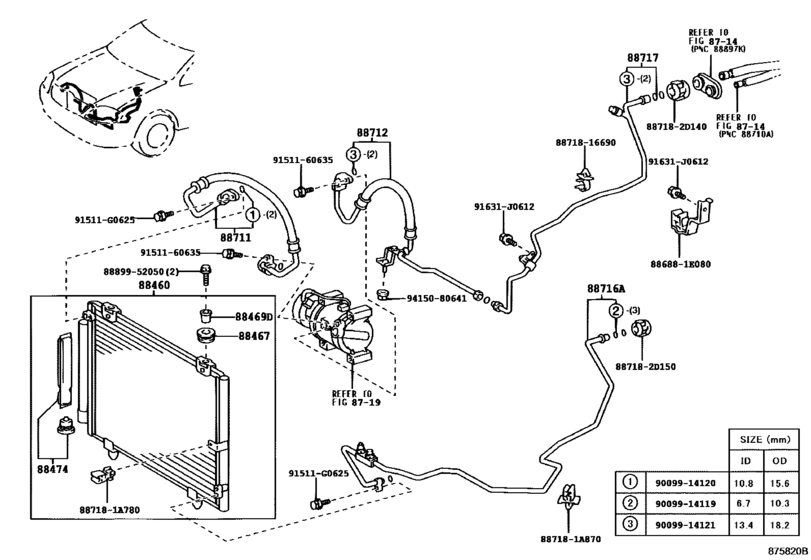

Heating & Air Conditioning - Cooler Piping ([08.2000 - 04.2004] (0008-0404)CE121) 31
#OEMPart name
88460 88450-12210 Condenser Assy, Cooler
88460 88450-12211 Condenser Assy, Cooler
88467 88467-12180 Cushion, Cooler Condenser, No.1
88469 88469-52010 Collar, Condenser Bracket, No.1
88474 88474-17010 Dryer, Cooler
88474 88474-47010 Dryer, Cooler
88711 88703-12550 Hose, Cooler Refrigerant Discharge, No.1
88711 88703-12640 Hose, Cooler Refrigerant Discharge, No.1
88712 88704-12830 Hose, Cooler Refrigerant Suction, No.1
88712 88704-12831 Hose, Cooler Refrigerant Suction, No.1
88716 88710-12510 Pipe, Cooler Refrigerant Liquid, A
88716 88710-12511 Pipe, Cooler Refrigerant Liquid, A
88717 88710-12520 Pipe, Cooler Refrigerant Suction, No.1
88717 88710-12521 Pipe, Cooler Refrigerant Suction, No.1
91511 91511-G0625 BOLT FLANGE
91631 91631-J0612 BRACKET
887181 88718-1A780 Pipe, Cooler Refrigerant Suction, No.2
887181 88718-1A870 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1
887182 88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1
8871816690 88718-16690 Pipe, Cooler Refrigerant Suction, No.2
8889952050 88899-52050 Cover, Evaporator
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9151160635 91511-60635 Bolt
9151160635 90080-10195 Bolt
9415080641 94150-80641 New Genuine Part
9415080641 94151-80641 NUT FLANGE
9223372036854775807 88688-1E080 Bracket, Cooler Diaphragm
