Search › Model › CE121
CE121

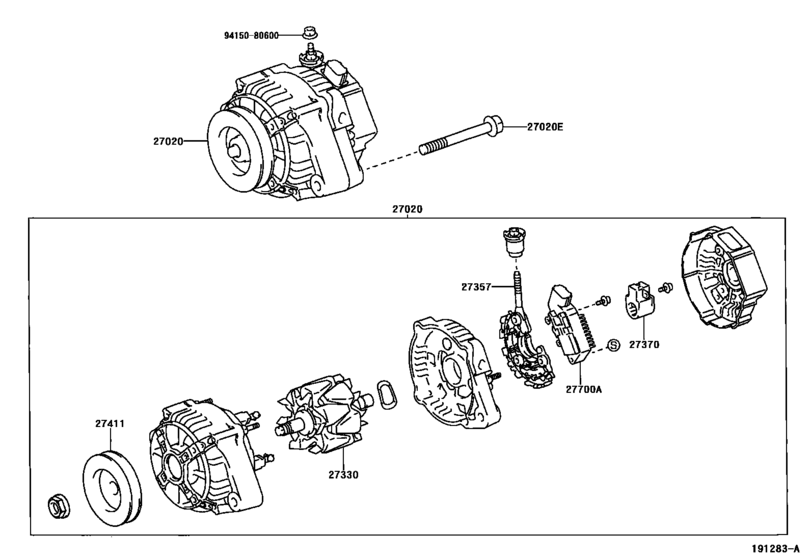

Alternator ([08.2000 - ] 12V 80A (0008- )3CE) 8
| # | OEM | Part name |
|---|---|---|
| 27020 | 27060-64430 | Alternator Assy |
| 27020 | 90901-05004 | Bolt(For Alternator) |
| 27330 | 27330-74550 | Rotor Assy, Alternator |
| 27357 | 27357-22050 | Holder, Alternator, W/rectifier |
| 27370 | 27370-75060 | Holder Assy, Alternator Brush |
| 27411 | 27411-64360 | Pulley, Alternator |
| 27700 | 27700-13130 | Regulator Assy, Generator |
| 9415080600 | 94150-80600 | NUT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 27060-64430 | Alternator Assy | Alternator ([08.2000 - ] 12V 80A (0008- )3CE) |
| 27330-74550 | Rotor Assy, Alternator | Alternator ([08.2000 - ] 12V 80A (0008- )3CE) |
| 27357-22050 | Holder, Alternator, W/rectifier | Alternator ([08.2000 - ] 12V 80A (0008- )3CE) |
| 27370-75060 | Holder Assy, Alternator Brush | Alternator ([08.2000 - ] 12V 80A (0008- )3CE) |
| 27411-64360 | Pulley, Alternator | Alternator ([08.2000 - ] 12V 80A (0008- )3CE) |
| 27700-13130 | Regulator Assy, Generator | Alternator ([08.2000 - ] 12V 80A (0008- )3CE) |
| 90901-05004 | Bolt(For Alternator) | Alternator ([08.2000 - ] 12V 80A (0008- )3CE) |
| 94150-80600 | NUT FLANGE | Alternator ([08.2000 - ] 12V 80A (0008- )3CE) |
