CE120

Toyota COROLLA-ALTIS · 2001 · 3,205 parts · 194 categories

← Back to categories

3,205 items

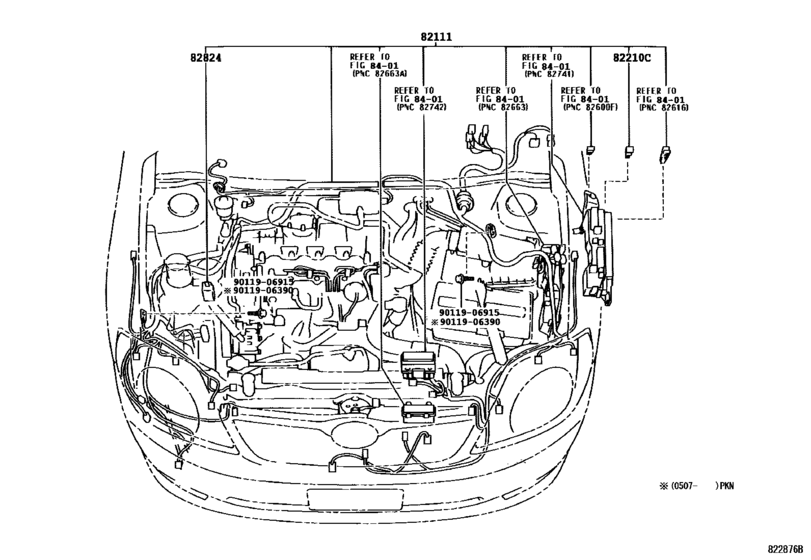

Wiring & Clamp ([10.2001 - ] ENGINE ROOM (0110- )CE120) 10

#	OEM	Part name
82111	82111-0Z180	Wire, Engine Room Main
82111	82116-02040	Wire, Engine Room Main
82111	82116-02041	Wire, Engine Room Main
82111	82116-02030	Wire, Engine Room Main
82210	90982-08246	Fusible Link
82210	90982-08283	Fusible Link
82210	90982-08284	Fusible Link
82824	82824-12300	Connector, Wiring Harness
9011906390	90119-06390	BOLT WWASHER
9011906915	90119-06915	BOLT W-WASHER

OEM	Part name	Category
82111-0Z180	Wire, Engine Room Main	Wiring & Clamp ([10.2001 - ] ENGINE ROOM (0110- )CE120)
82116-02030	Wire, Engine Room Main	Wiring & Clamp ([10.2001 - ] ENGINE ROOM (0110- )CE120)
82116-02040	Wire, Engine Room Main	Wiring & Clamp ([10.2001 - ] ENGINE ROOM (0110- )CE120)
82116-02041	Wire, Engine Room Main	Wiring & Clamp ([10.2001 - ] ENGINE ROOM (0110- )CE120)
82824-12300	Connector, Wiring Harness	Wiring & Clamp ([10.2001 - ] ENGINE ROOM (0110- )CE120)
90119-06390	BOLT WWASHER	Wiring & Clamp ([10.2001 - ] ENGINE ROOM (0110- )CE120)
90119-06915	BOLT W-WASHER	Wiring & Clamp ([10.2001 - ] ENGINE ROOM (0110- )CE120)
90982-08246	Fusible Link	Wiring & Clamp ([10.2001 - ] ENGINE ROOM (0110- )CE120)
90982-08283	Fusible Link	Wiring & Clamp ([10.2001 - ] ENGINE ROOM (0110- )CE120)
90982-08284	Fusible Link	Wiring & Clamp ([10.2001 - ] ENGINE ROOM (0110- )CE120)
