Search › Model › CE120
CE120

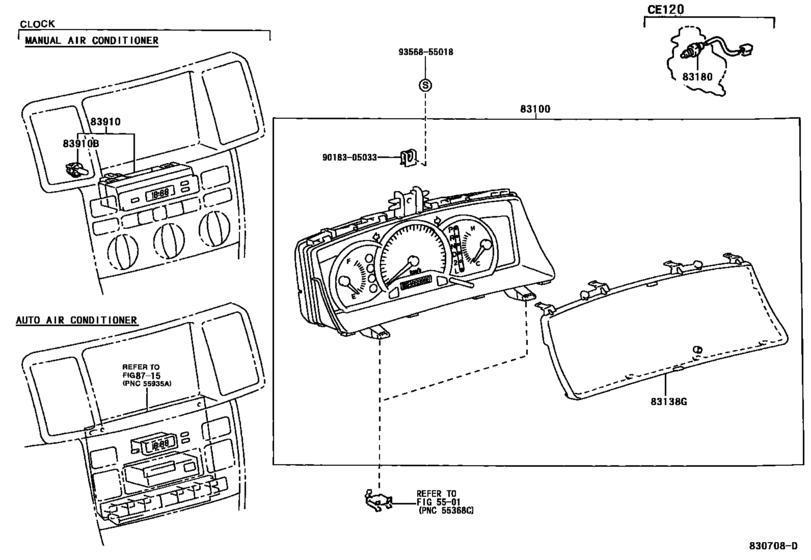

Meter ([08.2000 - ] (0008- )) 9
| # | OEM | Part name |
|---|---|---|
| 83100 | 83800-02850 | Meter Assy, Combination |
| 83100 | 83800-02860 | Meter Assy, Combination |
| 83138 | 83852-02550 | Glass, Combination Meter |
| 83138 | 83852-02590 | Glass, Combination Meter |
| 83180 | 83180-32020 | Detector Assy, Revolution |
| 83910 | 83910-12560 | Clock Assy |
| 83910 | 90010-07018 | Bulb, Clock Indicator |
| 9018305033 | 90183-05033 | NUT |
| 9356855018 | 93568-55018 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 83180-32020 | Detector Assy, Revolution | Meter ([08.2000 - ] (0008- )) |
| 83800-02850 | Meter Assy, Combination | Meter ([08.2000 - ] (0008- )) |
| 83800-02860 | Meter Assy, Combination | Meter ([08.2000 - ] (0008- )) |
| 83852-02550 | Glass, Combination Meter | Meter ([08.2000 - ] (0008- )) |
| 83852-02590 | Glass, Combination Meter | Meter ([08.2000 - ] (0008- )) |
| 83910-12560 | Clock Assy | Meter ([08.2000 - ] (0008- )) |
| 90010-07018 | Bulb, Clock Indicator | Meter ([08.2000 - ] (0008- )) |
| 90183-05033 | NUT | Meter ([08.2000 - ] (0008- )) |
| 93568-55018 | SCREW | Meter ([08.2000 - ] (0008- )) |
