CE120

Toyota COROLLA-ALTIS · 2001 · 3,205 parts · 194 categories
CE120 ×

← Back to categories

3,205 items

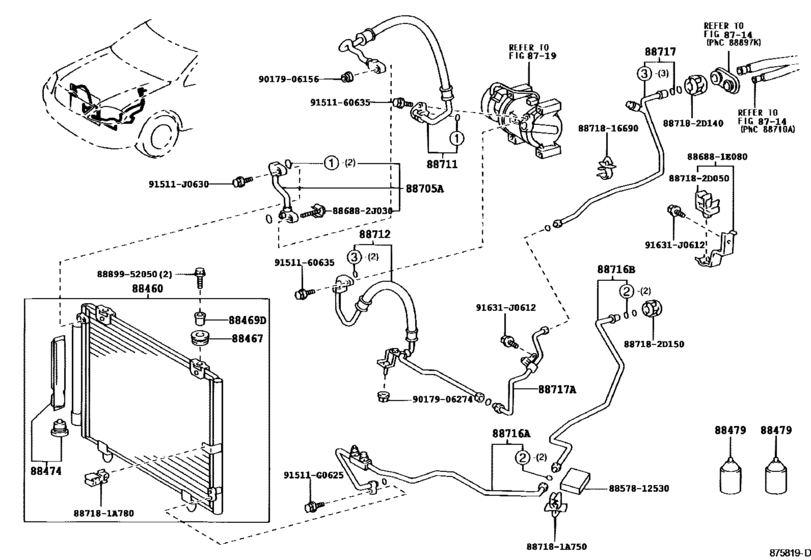

Heating & Air Conditioning - Cooler Piping ([09.2002 - ] DEALER OPTION (0209- )CE120..RHD) 31
#OEMPart name
88460 88450-12210 Condenser Assy, Cooler
88460 88450-12211 Condenser Assy, Cooler
88467 88467-12180 Cushion, Cooler Condenser, No.1
88469 88469-52010 Collar, Condenser Bracket, No.1
88474 88474-17010 Dryer, Cooler
88474 88474-47010 Dryer, Cooler
88711 88703-12550 Hose, Cooler Refrigerant Discharge, No.1
88712 88704-12830 Hose, Cooler Refrigerant Suction, No.1
88712 88704-12831 Hose, Cooler Refrigerant Suction, No.1
88716 88710-12510 Pipe, Cooler Refrigerant Liquid, A
88716 88710-12511 Pipe, Cooler Refrigerant Liquid, A
88717 88710-12520 Pipe, Cooler Refrigerant Suction, No.1
88717 88710-12521 Pipe, Cooler Refrigerant Suction, No.1
91511 91511-G0625 BOLT FLANGE
91511 91511-J0630 New Genuine Part
91511 90091-40642 New Genuine Part
91631 91631-J0612 BRACKET
886882 88688-2J030 Bracket, Cooler Diaphragm
887181 88718-1A750 Pipe, Cooler Refrigerant Suction, No.2
887181 88718-1A780 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2D050 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1
887182 88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1
8857812530 88578-12530 Paking, Cooler Air Duct
8871816690 88718-16690 Pipe, Cooler Refrigerant Suction, No.2
8889952050 88899-52050 Cover, Evaporator
9017906156 90179-06156 Nut (For Transmission Control Cable)
9017906274 90179-06274 Nut
9151160635 91511-60635 Bolt
9151160635 90080-10195 Bolt
9223372036854775807 88688-1E080 Bracket, Cooler Diaphragm
