Search › Model › CE120

CE120

Toyota COROLLA-ALTIS · 2001 · 3,205 parts · 194 categories

3,205 items

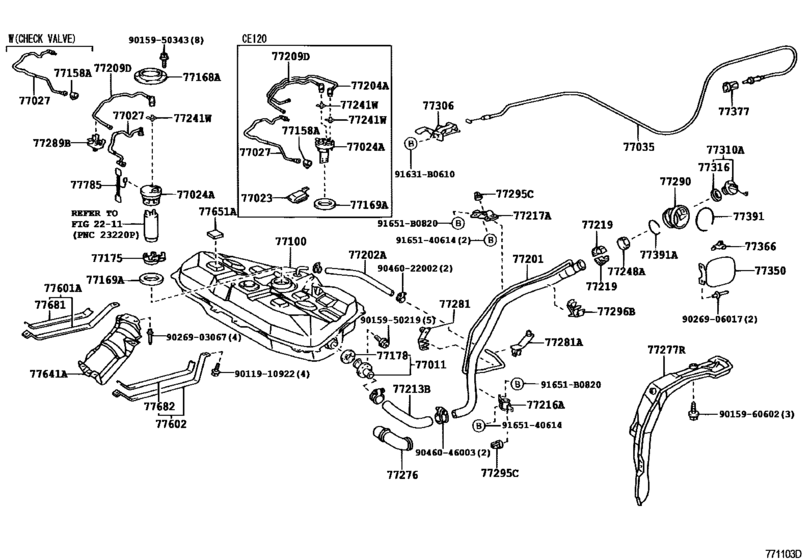

Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN) 62

#	OEM	Part name
77011	77011-02040	Pipe Sub-Assy, Fuel Tank Filler, Lower
77023	77023-32040	Filter Sub-Assy, Fuel Suction Tube
77024	77024-12020	Plate Sub-Assy, Fuel Suction
77027	77027-12030	Tube Sub-Assy, Fuel Evaporation, No.2
77035	77035-02050	Cable Sub-Assy, Fuel Lid Lock Control
77100	77001-02110	Tank Assy, Fuel
77100	77001-02280	Tank Assy, Fuel
77158	77158-12030	Support, Tank Suction Tube
77168	77168-52010	Plate, Fuel Tank Vent Tube Set
77169	77169-33020	Gasket, Fuel Pump Bracket
77178	77178-0A010	Gasket, Fuel Tank Filler Pipe, Lower
77201	77201-02100	Pipe Sub-Assy, Fuel Tank Inlet
77202	95313-13046	Hose, Fuel, No.1 (For Breather Tube)
77204	77204-12100	Tube, Fuel Tank Return
77209	77209-12160	Tube Sub-Assy, Fuel Tank Main
77213	77213-32070	Hose, Fuel Tank To Filler Pipe
77213	77213-32090	Hose, Fuel Tank To Filler Pipe
77216	77216-32060	Support, Fuel Tank Filler Pipe, No.1
77217	77217-32050	Support, Fuel Tank Filler Pipe, No.2
77219	77219-20070	Cover, Fuel Tank Filler Pipe
77241	77241-60320	Clip, Tube Joint
77248	77248-20030	Holder, Fuel Tank Filler Pipe Cover
77276	77276-12050	Protector, Fuel Hose
77276	77276-12120	Protector, Fuel Hose
77276	77276-12130	Protector, Fuel Hose
77277	77277-12170	Protector, Fuel Tank Filler Pipe
77281	77281-32040	Bracket, Fuel Main Tube, No.1
77281	77281-12070	Clamp, Fuel Filler Pipe
77289	77289-12030	Clamp, Fuel Tube, No.3
77290	77291-12150	Shield Assy, Fuel Tank Filler Pipe
77295	77295-12070	Grommet, Fuel Tube
77296	77296-12030	Support, Fuel Tube Protector, No.1
77306	64606-12060	Lever Sub-Assy, Luggage Door Lock Open
77310	77310-12150	Cap Assy, Fuel Tank
77316	77316-16010	Gasket (For Fuel Tank Cap)
77350	77350-12450	Lid Assy, Fuel Filler Opening
77366	77360-30080	Spring Assy, Fuel Filler Opening Lid
77377	77377-12050	Bracket, Fuel Lid Lock Control
77391	77391-02050	Ring, Fuel Inlet Box
77391	77391-02020	Ring, Fuel Inlet Box
77601	77601-12230	Band Sub-Assy, Fuel Tank, No.1
77602	77602-12180	Case Sub-Assy, Fuel Tank, Upper
77641	77641-12160	Protector, Fuel Tank, No.1
77651	77651-20090	Cushion, Fuel Tank, No.1
77681	77681-34030	Seat, Fuel Tank Band, Rh
77682	77681-32060	Seat, Fuel Tank Band, Rh
91631	91631-B0610	BOLTWWASHER
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
9011910922	90119-10922	BOLT WWASHER
9011910922	90080-11654	New Genuine Part
9015950219	90159-50219	BOLT
9015950219	90159-A0057	New Genuine Part
9015950343	90159-50343	SCREW, W-WASHER
9015960602	90159-60602	SCREW
9026903067	90269-03067	RIVET
9026906017	90269-06017	RIVET
9046022002	90460-22002	CLAMP
9046022002	90460-22001	CLAMP
9046046003	90460-46003	Clamp (For Fuel Filler Pipe)
9046046003	90460-46005	Clamp (For Fuel Filler Pipe)
9165140614	91651-40614	Bolt

OEM	Part name	Category
64606-12060	Lever Sub-Assy, Luggage Door Lock Open	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77001-02110	Tank Assy, Fuel	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77001-02280	Tank Assy, Fuel	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77011-02040	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77023-32040	Filter Sub-Assy, Fuel Suction Tube	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77024-12020	Plate Sub-Assy, Fuel Suction	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77027-12030	Tube Sub-Assy, Fuel Evaporation, No.2	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77035-02050	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77158-12030	Support, Tank Suction Tube	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77168-52010	Plate, Fuel Tank Vent Tube Set	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77169-33020	Gasket, Fuel Pump Bracket	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77178-0A010	Gasket, Fuel Tank Filler Pipe, Lower	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77201-02100	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77204-12100	Tube, Fuel Tank Return	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77209-12160	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77213-32070	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77213-32090	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77216-32060	Support, Fuel Tank Filler Pipe, No.1	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77217-32050	Support, Fuel Tank Filler Pipe, No.2	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77219-20070	Cover, Fuel Tank Filler Pipe	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77241-60320	Clip, Tube Joint	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77248-20030	Holder, Fuel Tank Filler Pipe Cover	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77276-12050	Protector, Fuel Hose	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77276-12120	Protector, Fuel Hose	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77276-12130	Protector, Fuel Hose	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77277-12170	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77281-12070	Clamp, Fuel Filler Pipe	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77281-32040	Bracket, Fuel Main Tube, No.1	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77289-12030	Clamp, Fuel Tube, No.3	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77291-12150	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77295-12070	Grommet, Fuel Tube	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77296-12030	Support, Fuel Tube Protector, No.1	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77310-12150	Cap Assy, Fuel Tank	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77316-16010	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77350-12450	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77360-30080	Spring Assy, Fuel Filler Opening Lid	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77377-12050	Bracket, Fuel Lid Lock Control	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77391-02020	Ring, Fuel Inlet Box	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77391-02050	Ring, Fuel Inlet Box	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77601-12230	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77602-12180	Case Sub-Assy, Fuel Tank, Upper	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77641-12160	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77651-20090	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77681-32060	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
77681-34030	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
90080-11347	New Genuine Part	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
90080-11654	New Genuine Part	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
90119-10922	BOLT WWASHER	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
90159-50219	BOLT	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
90159-50343	SCREW, W-WASHER	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
90159-60602	SCREW	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
90159-A0057	New Genuine Part	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
90269-03067	RIVET	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
90269-06017	RIVET	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
90460-22001	CLAMP	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
90460-22002	CLAMP	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
90460-46003	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
91631-B0610	BOLTWWASHER	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
91651-40614	Bolt	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
91651-B0820	Bolt, Radiator Side Support Plate	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)
95313-13046	Hose, Fuel, No.1 (For Breather Tube)	Fuel Tank & Tube ([02.2002 - ] FUEL TANK (0202- )PKN)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 194
Collected: 2026-08-02
