CE120

Toyota COROLLA-ALTIS · 2001 · 3,205 parts · 194 categories

3,205 items

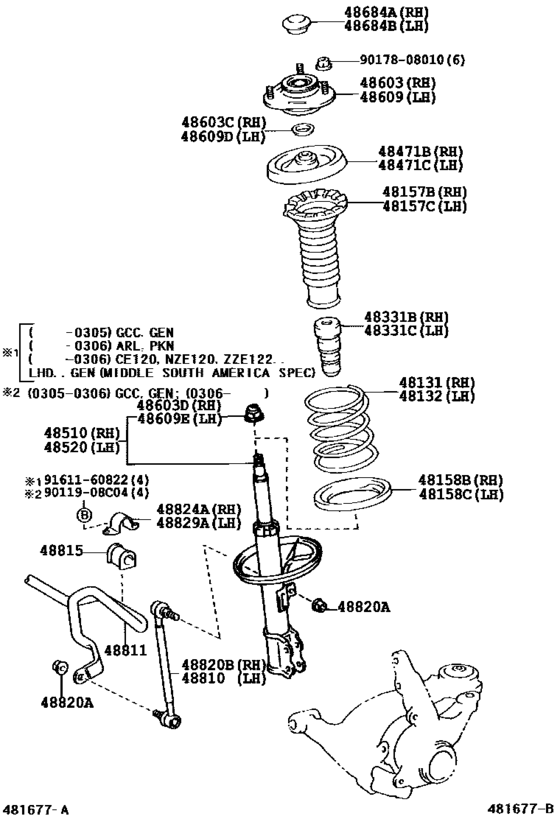

Front Spring & Shock Absorber ([08.2000 - ] (0008- )) 24

#	OEM	Part name
48131	48131-1N570	Spring, Front Coil, Rh
48157	48157-02020	Insulator, Front Coil Spring, Upper Rh
48158	48158-02030	Insulator, Front Coil Spring, Lower Rh
48331	48331-12210	Bumper, Front Spring, Rh
48471	48044-12100	Seat, Front Coil Spring, Upper
48510	48510-80019	Absorber Assy, Shock, Front Rh
48510	48510-80178	Absorber Assy, Shock, Front Rh
48510	48510-80154	Absorber Assy, Shock, Front Rh
48520	48520-19706	Absorber Assy, Shock, Front Lh
48520	48520-80025	Absorber Assy, Shock, Front Lh
48520	48520-80012	Absorber Assy, Shock, Front Lh
48603	48609-12440	Support Sub-Assy, Front Suspension, Rh
48603	90303-22002	Seal, Dust(For Front Suspension Support)
48603	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)
48684	48684-12070	Cover, Front Suspension Support Dust
48684	48684-52010	Cover, Front Suspension Support Dust
48810	48820-47010	Link Assy, Front Stabilizer
48811	48811-1A170	Bar, Stabilizer, Front
48815	48815-12340	Bush, Front Stabilizer Bar, No.1
48820	90179-12151	Nut(For Front Stabilizer Link)
48824	48824-26210	Bracket, Front Stabilizer, No.1
9011908	90119-08C04	BOLT WWASHER
9017808010	90178-08010	Nut(For Front Suspension Support)
9161160822	91611-60822	Bolt

OEM	Part name	Category
48044-12100	Seat, Front Coil Spring, Upper	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
48131-1N570	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
48157-02020	Insulator, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
48158-02030	Insulator, Front Coil Spring, Lower Rh	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
48331-12210	Bumper, Front Spring, Rh	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
48510-80019	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
48510-80154	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
48510-80178	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
48520-19706	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
48520-80012	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
48520-80025	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
48609-12440	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
48684-12070	Cover, Front Suspension Support Dust	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
48684-52010	Cover, Front Suspension Support Dust	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
48811-1A170	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
48815-12340	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
48820-47010	Link Assy, Front Stabilizer	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
48824-26210	Bracket, Front Stabilizer, No.1	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
90119-08C04	BOLT WWASHER	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
90178-08010	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
90179-12151	Nut(For Front Stabilizer Link)	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
90303-22002	Seal, Dust(For Front Suspension Support)	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
91611-60822	Bolt	Front Spring & Shock Absorber ([08.2000 - ] (0008- ))
