Search › Model › CE120

CE120

Toyota COROLLA-ALTIS · 2001 · 3,205 parts · 194 categories

3,205 items

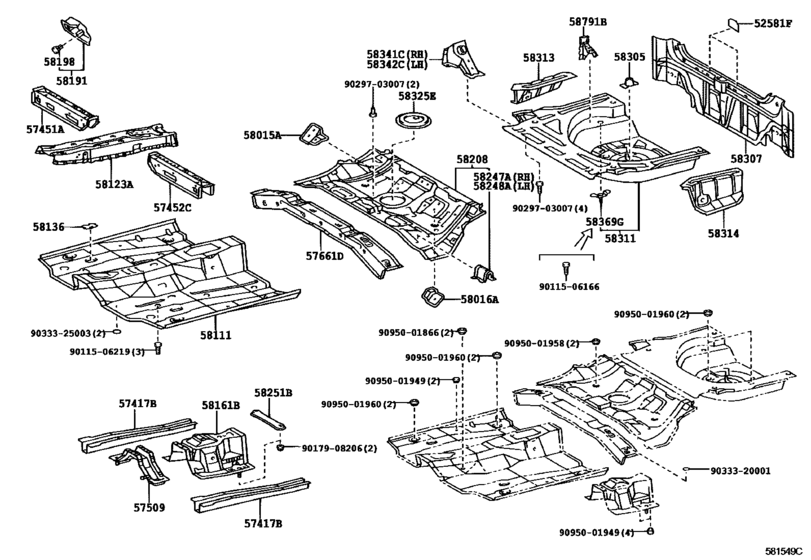

Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN) 47

#	OEM	Part name
52581	52581-02010	Protector, Rear Bumper
57417	57505-12070	Reinforcement, Front Floor Under
57451	57451-12220	Member, Front Floor Cross, Rh
57451	57451-12240	Member, Front Floor Cross, Rh
57452	57452-12040	Member, Front Floor Cross, Lh
57452	57452-12120	Member, Front Floor Cross, Lh
57452	57452-12060	Member, Front Floor Cross, Lh
57509	57509-12040	Reinforcement Sub-Assy, Front Floor, Center
57661	57661-12010	Member, Rear Floor Cross, Front
58015	58015-12060	Reinforce Sub-Assy, Belt Anchor, No.3 Rh
58016	58016-32050	Reinforce Sub-Assy, Belt Anchor, No.3 Lh
58111	58111-12350	Pan, Front Floor
58123	58013-12040	Support, Shift & Select Lever
58136	58136-02050	Cover, Front Floor Hole
58136	58136-33010	Cover, Front Floor Hole
58161	57805-12070	Reinforcement, Belt Anchor To Floor Pan
58191	58191-02060	Footrest, Front Floor
58191	58191-12120	Footrest, Front Floor
58198	58198-20210	Clip, Footrest
58208	58211-12590	Pan, Center Floor
58208	58211-12918	Pan, Center Floor
58208	58211-12932	Pan, Center Floor
58247	58247-02070	Reinforcement, Rear Seat Cushion Hinge, Rh
58247	58247-12070	Reinforcement, Rear Seat Cushion Hinge, Rh
58251	58251-12030	Brace, Floor Panel, Front
58305	58351-33010	Bracket Sub-Assy, Spare Wheel Clamp
58307	58307-1A560	Panel Sub-Assy, Body Lower Back
58311	58311-12250	Pan, Rear Floor
58311	58311-12270	Pan, Rear Floor
58311	90333-40001	Plate, Noise Control, No.1
58313	58313-12300	Panel, Rear Floor Side, Rh
58314	58314-12300	Panel, Rear Floor Side, Lh
58325	58325-12110	Cover, Rear Floor Service Hole
58341	58341-12020	Bracket, Rear Absorber Mounting, No.1 Rh
58342	58342-12020	Bracket, Rear Absorber Mounting, No.1 Lh
58369	58369-12020	Bracket, Fuel Tube, No.3
58791	58791-12200	Carrier, Jack
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)
9011506219	90115-06219	Bolt, Weld(For Front Floor Pan, Lh)
9017908206	90179-08206	Nut(For Front Suspension Support)
9029703007	90297-03007	Retainer, Rear Heater Mounting
9033320001	90333-20001	PLUG
9033325003	90333-25003	Plug, Hole(For Hood)
9095001866	90950-01866	Plug, Hole(For Front Door Panel)
9095001949	90950-01949	PLUG HOLE
9095001958	90950-01958	Plug, Hole(For Back Door Panel)
9095001960	90950-01960	Plug, Hole(For Floor Panel)

OEM	Part name	Category
52581-02010	Protector, Rear Bumper	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
57451-12220	Member, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
57451-12240	Member, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
57452-12040	Member, Front Floor Cross, Lh	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
57452-12060	Member, Front Floor Cross, Lh	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
57452-12120	Member, Front Floor Cross, Lh	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
57505-12070	Reinforcement, Front Floor Under	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
57509-12040	Reinforcement Sub-Assy, Front Floor, Center	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
57661-12010	Member, Rear Floor Cross, Front	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
57805-12070	Reinforcement, Belt Anchor To Floor Pan	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58013-12040	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58015-12060	Reinforce Sub-Assy, Belt Anchor, No.3 Rh	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58016-32050	Reinforce Sub-Assy, Belt Anchor, No.3 Lh	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58111-12350	Pan, Front Floor	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58136-02050	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58136-33010	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58191-02060	Footrest, Front Floor	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58191-12120	Footrest, Front Floor	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58198-20210	Clip, Footrest	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58211-12590	Pan, Center Floor	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58211-12918	Pan, Center Floor	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58211-12932	Pan, Center Floor	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58247-02070	Reinforcement, Rear Seat Cushion Hinge, Rh	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58247-12070	Reinforcement, Rear Seat Cushion Hinge, Rh	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58251-12030	Brace, Floor Panel, Front	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58307-1A560	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58311-12250	Pan, Rear Floor	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58311-12270	Pan, Rear Floor	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58313-12300	Panel, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58314-12300	Panel, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58325-12110	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58341-12020	Bracket, Rear Absorber Mounting, No.1 Rh	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58342-12020	Bracket, Rear Absorber Mounting, No.1 Lh	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58351-33010	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58369-12020	Bracket, Fuel Tube, No.3	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
58791-12200	Carrier, Jack	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
90115-06166	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
90115-06219	Bolt, Weld(For Front Floor Pan, Lh)	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
90179-08206	Nut(For Front Suspension Support)	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
90297-03007	Retainer, Rear Heater Mounting	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
90333-20001	PLUG	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
90333-25003	Plug, Hole(For Hood)	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
90333-40001	Plate, Noise Control, No.1	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
90950-01866	Plug, Hole(For Front Door Panel)	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
90950-01949	PLUG HOLE	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
90950-01958	Plug, Hole(For Back Door Panel)	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
90950-01960	Plug, Hole(For Floor Panel)	Floor Pan & Lower Back Panel ([02.2002 - ] (0202- )PKN)
