CE120

Toyota COROLLA-ALTIS · 2001 · 3,205 parts · 194 categories

← Back to categories

3,205 items

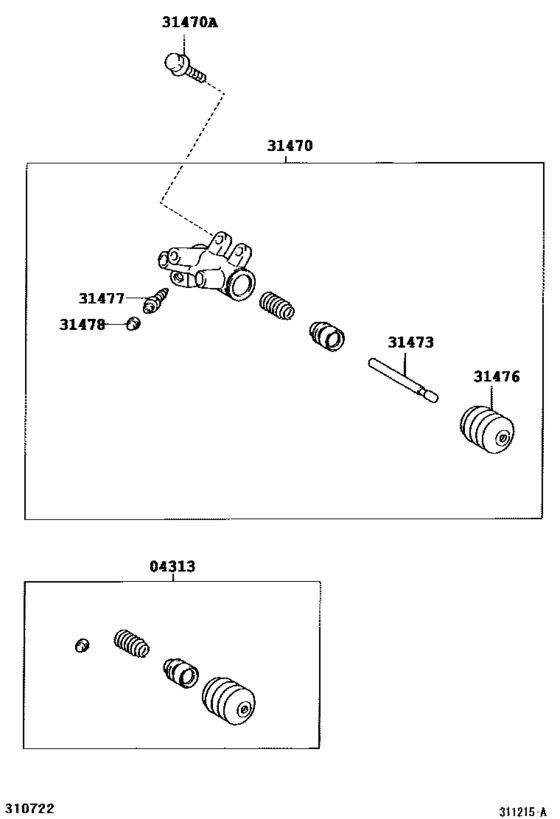

Clutch Release Cylinder ([08.2000 - ] (0008- )CE120,ZZE12#..MTM) 9

#	OEM	Part name
4313	04313-52020	Cylinder Kit, Clutch Release
31470	31470-32022	Cylinder Assy, Clutch Release
31470	31470-32023	Cylinder Assy, Clutch Release
31470	91611-60822	Bolt
31473	31473-20031	Rod, Clutch Release Cylinder Push, No.1
31473	31473-22010	Rod, Clutch Release Cylinder Push, No.1
31476	31476-22010	Boot, Clutch Release Cylinder
31477	47547-20010	Plug, Bleeder(For Release Cylinder)
31478	31478-30010	Bleeder Plug Cap

OEM	Part name	Category
04313-52020	Cylinder Kit, Clutch Release	Clutch Release Cylinder ([08.2000 - ] (0008- )CE120,ZZE12#..MTM)
31470-32022	Cylinder Assy, Clutch Release	Clutch Release Cylinder ([08.2000 - ] (0008- )CE120,ZZE12#..MTM)
31470-32023	Cylinder Assy, Clutch Release	Clutch Release Cylinder ([08.2000 - ] (0008- )CE120,ZZE12#..MTM)
31473-20031	Rod, Clutch Release Cylinder Push, No.1	Clutch Release Cylinder ([08.2000 - ] (0008- )CE120,ZZE12#..MTM)
31473-22010	Rod, Clutch Release Cylinder Push, No.1	Clutch Release Cylinder ([08.2000 - ] (0008- )CE120,ZZE12#..MTM)
31476-22010	Boot, Clutch Release Cylinder	Clutch Release Cylinder ([08.2000 - ] (0008- )CE120,ZZE12#..MTM)
31478-30010	Bleeder Plug Cap	Clutch Release Cylinder ([08.2000 - ] (0008- )CE120,ZZE12#..MTM)
47547-20010	Plug, Bleeder(For Release Cylinder)	Clutch Release Cylinder ([08.2000 - ] (0008- )CE120,ZZE12#..MTM)
91611-60822	Bolt	Clutch Release Cylinder ([08.2000 - ] (0008- )CE120,ZZE12#..MTM)
