Search › Model › CE114

CE114

Toyota COROLLA · 1995 · 5,792 parts · 220 categories

5,792 items

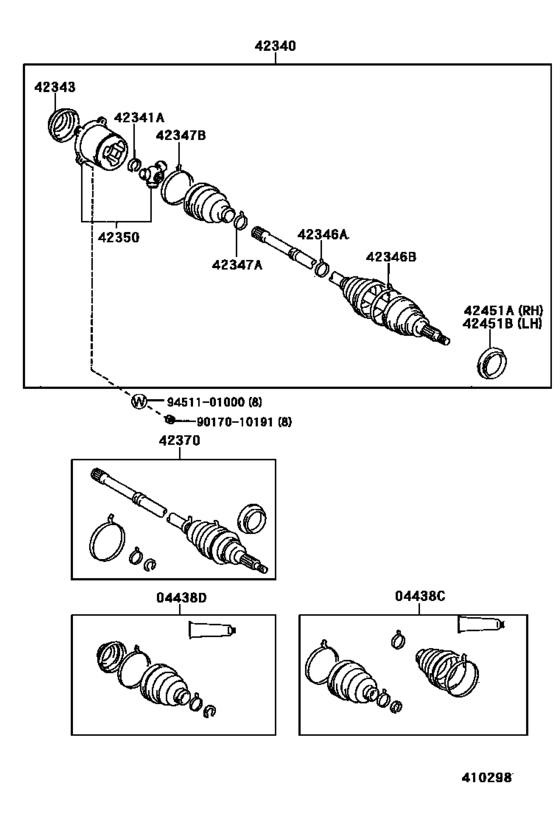

Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116) 40

#	OEM	Part name
4438	04438-20290	Boot Kit, Rear Drive Shaft
4438	04438-20240	Boot Kit, Rear Drive Shaft Inboard Joint
4438	04437-22090	Boot Kit, Rear Drive Shaft
42311	42301-12230	Shaft, Rear Axle, Rh
42311	90369-38018	Bearing (For Rear Axle Shaft Rh)
42311	90179-22020	Nut (For Rear Axle Shaft)
42311	90521-69004	Ring, Snap (For Rear Axle Shaft Rh)
42311	90942-02047	Bolt, Hub
42311	90311-52010	Seal, Oil (For Rear Axle Shaft Rh)
42311	90311-56007	Seal, Oil (For Rear Axle Shaft)
42340	42340-12030	Shaft Assy, Rear Drive
42340	42340-12052	Shaft Assy, Rear Drive, Lh
42340	90178-22001	Nut (For Axle Shaft)
42340	42340-12040	Shaft Assy, Rear Drive
42340	42340-12062	Shaft Assy, Rear Drive
42340	42340-12050	Shaft Assy, Rear Drive
42340	42340-12060	Shaft Assy, Rear Drive
42340	42340-12061	Shaft Assy, Rear Drive
42341	90520-23024	Ring, Snap (For Rear Drive Shaft)
42343	42343-14010	Cover, Outboard Joint End
42346	90949-01078	Clamp (For Rear Drive Shaft Outboard Joint Boot)
42346	42345-16020	Clamp (For Rear Drive Shaft Outboard Joint Boot)
42347	42345-14010	Clamp, Rear Drive Shaft Boot
42347	42345-14020	Clamp (For Rear Drive Shaft Outboard Joint Boot)
42350	42350-14010	Joint Assy, Rear Drive Shaft Outboard
42350	42360-22040	Joint Assy, Rear Drive Shaft Inboard
42370	42370-19125	Shaft Assy, Rear Drive Outboard Joint
42370	42370-19235	Shaft Assy, Rear Drive Outboard Joint
42370	42370-19126	Shaft Assy, Rear Drive Outboard Joint
42370	42370-19135	Shaft Assy, Rear Drive Outboard Joint
42370	42370-19245	Shaft Assy, Rear Drive Outboard Joint
42370	42370-19136	Shaft Assy, Rear Drive Outboard Joint
42370	42370-19137	Shaft Assy, Rear Drive Outboard Joint
42403	42431-12140	Drum Sub-Assy, Rear Brake
42451	42451-32010	Deflector, Rear Wheel Bearing Dust, No.1
42451	43247-12010	Deflector, Rear Wheel Bearing Dust, No.1
43525	43525-20040	Cap, Rear Wheel Adjusting Lock
9017010191	90170-10191	Nut(For Rear Drive Shaft)
9025203014	90252-03014	PIN COTTER
9451101000	94511-01000	Washer(For Rear Drive Shaft)

OEM	Part name	Category
04437-22090	Boot Kit, Rear Drive Shaft	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
04438-20240	Boot Kit, Rear Drive Shaft Inboard Joint	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
04438-20290	Boot Kit, Rear Drive Shaft	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42301-12230	Shaft, Rear Axle, Rh	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42340-12030	Shaft Assy, Rear Drive	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42340-12040	Shaft Assy, Rear Drive	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42340-12050	Shaft Assy, Rear Drive	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42340-12052	Shaft Assy, Rear Drive, Lh	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42340-12060	Shaft Assy, Rear Drive	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42340-12061	Shaft Assy, Rear Drive	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42340-12062	Shaft Assy, Rear Drive	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42343-14010	Cover, Outboard Joint End	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42345-14010	Clamp, Rear Drive Shaft Boot	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42345-14020	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42345-16020	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42350-14010	Joint Assy, Rear Drive Shaft Outboard	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42360-22040	Joint Assy, Rear Drive Shaft Inboard	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42370-19125	Shaft Assy, Rear Drive Outboard Joint	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42370-19126	Shaft Assy, Rear Drive Outboard Joint	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42370-19135	Shaft Assy, Rear Drive Outboard Joint	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42370-19136	Shaft Assy, Rear Drive Outboard Joint	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42370-19137	Shaft Assy, Rear Drive Outboard Joint	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42370-19235	Shaft Assy, Rear Drive Outboard Joint	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42370-19245	Shaft Assy, Rear Drive Outboard Joint	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42431-12140	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
42451-32010	Deflector, Rear Wheel Bearing Dust, No.1	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
43247-12010	Deflector, Rear Wheel Bearing Dust, No.1	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
43525-20040	Cap, Rear Wheel Adjusting Lock	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
90170-10191	Nut(For Rear Drive Shaft)	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
90178-22001	Nut (For Axle Shaft)	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
90179-22020	Nut (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
90252-03014	PIN COTTER	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
90311-52010	Seal, Oil (For Rear Axle Shaft Rh)	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
90311-56007	Seal, Oil (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
90369-38018	Bearing (For Rear Axle Shaft Rh)	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
90520-23024	Ring, Snap (For Rear Drive Shaft)	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
90521-69004	Ring, Snap (For Rear Axle Shaft Rh)	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
90942-02047	Bolt, Hub	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
90949-01078	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
94511-01000	Washer(For Rear Drive Shaft)	Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116)
