Search › Model › CE114

CE114

Toyota COROLLA · 1995 · 5,792 parts · 220 categories
CE114 ×

← Back to categories

5,792 items

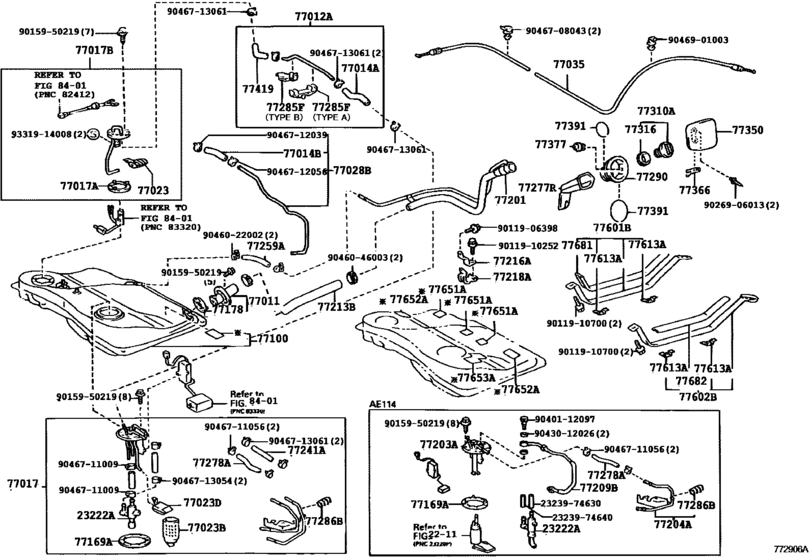

Fuel Tank & Tube ([05.1996 - ] (9605- )AE114,CE114,116) 78
#OEMPart name
23222 23222-64010 Tube, Fuel Return Jet
77011 77011-12130 Pipe Sub-Assy, Fuel Tank Filler, Lower
77012 77012-12120 Tube Sub-Assy, Fuel Tank Breather, No.1
77012 77012-12100 Tube Sub-Assy, Fuel Tank Breather, No.1
77012 77012-12160 Tube Sub-Assy, Fuel Tank Breather, No.1
77014 77279-12100 Tube Sub-Assy, Fuel Tank Breather, No.3
77014 95333-06010 Hose, Fuel
77017 77017-12480 Tube Sub-Assy, Fuel And Evaporation Vent
77017 77017-12650 Tube Sub-Assy, Fuel And Evaporation Vent
77017 77169-14010 Gasket, Fuel Pump Bracket
77017 77017-12500 Tube Sub-Assy, Fuel Tank Vent
77023 77023-32030 Filter Sub-Assy, Fuel Suction Tube
77023 77023-12040 Filter Sub-Assy, Fuel Suction Tube, No.2
77023 77023-32040 Filter Sub-Assy, Fuel Suction Tube
77028 77028-12070 Tube Sub-Assy, Fuel Evaporation, No.3
77035 77035-12220 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-12933 Tank Assy, Fuel
77100 77001-12936 Tank Assy, Fuel
77169 77169-12030 Gasket, Fuel Pump Bracket
77178 77178-20030 Gasket, Fuel Tank Filler Pipe, Lower
77201 77201-12540 Pipe Sub-Assy, Fuel Tank Inlet
77204 77204-12070 Tube, Fuel Tank Return
77213 77213-12150 Hose, Fuel Tank To Filler Pipe
77216 77216-12080 Support, Fuel Tank Filler Pipe, No.1
77218 77218-12040 Support, Fuel Tank Filler Pipe, No.3
77241 95333-08020 Hose, Lpg Injector
77241 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77259 95311-13022 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77277 77277-12160 Protector, Fuel Tank Filler Pipe
77278 77259-12210 Hose, Fuel, No.1 (For Return Tube, No.2)
77285 77285-12060 Clamp, Fuel Tube, No.1
77285 77286-12050 Clamp, Fuel Tube, No.1
77286 77285-12040 Clamp, Fuel Tube, No.1
77290 77291-12110 Shield Assy, Fuel Tank Filler Pipe
77310 77310-12150 Cap Assy, Fuel Tank
77310 77310-32011 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-12360 Lid Assy, Fuel Filler Opening
77350 77350-12410 Lid Assy, Fuel Filler Opening
77366 77360-12080 Spring, Fuel Filler Opening Lid Hinge
77377 77377-12050 Bracket, Fuel Lid Lock Control
77391 77391-12010 Ring, Fuel Inlet Box
77391 77391-12020 Ring, Fuel Inlet Box
77419 77419-12020 Hose, Fuel, No.3
77601 77601-12190 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-12140 Band Sub-Assy, Fuel Tank, No.1 Lh
77613 77613-16030 Bracket, Fuel Tank Band, No.1
77651 77651-20090 Cushion, Fuel Tank, No.1
77652 77652-12100 Cushion, Fuel Tank, No.1
77653 77653-12100 Cushion, Fuel Tank, No.3
77681 77681-32060 Seat, Fuel Tank Band, Rh
2323974630 23239-74630 Hose, Fuel Pump
2323974640 23239-74640 Hose, Fuel Pump
9011906398 90119-06398 BOLT WWASHER
9011910252 90119-10252 BOLT
9011910700 90119-10700 New Genuine Part
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9026906013 90269-06013 RIVET
9040112097 90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)
9043012026 90430-12026 Gasket
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046708043 90467-08043 Clamp, Hood Lock Control Cable
9046711009 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9046711056 90467-11056 Clamp Or Clip(For Water By-Pass Hose)
9046712039 90467-12039 Clip, No.1(For Idle-Up Hose)
9046712039 96132-51100 Clip (For Hose)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9046713054 90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713054 96135-51300 Clamp, Hose
9046713061 90467-13061 Crip (For Fuel Tank Filler Pipe)
9046901003 90469-01003 Clamp(For Hood Lock Control Cable)
9331914008 93319-14008 SCREW
