| 30250-32051 |
Converter Assy, Torque, Rebuilt |

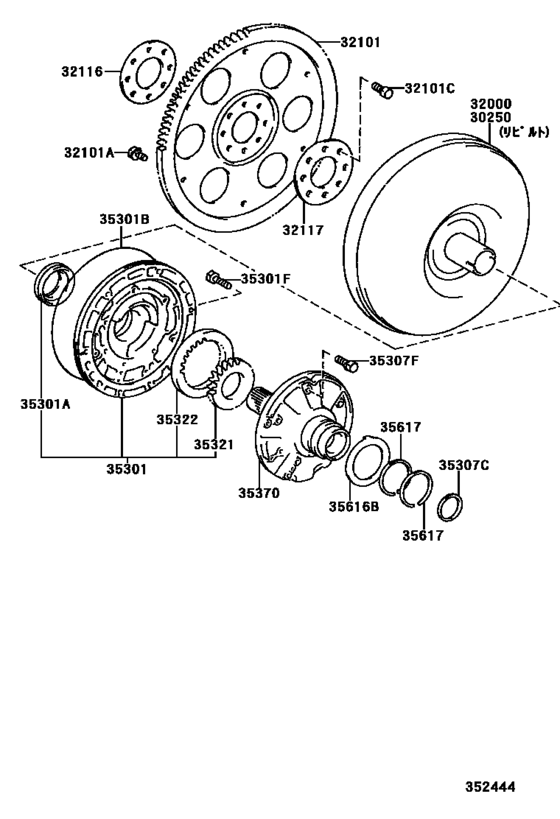

Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 32000-32051 |
Converter Assy, Torque |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 32101-12070 |
Gear Sub-Assy, Drive Plate & Ring |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 32116-20030 |
Spacer, Drive Plate, Front |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 32117-20040 |
Spacer, Drive Plate, Rear |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 35035-20010 |
Body Sub-Assy, Front Oil Pump |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 35321-12070 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 35321-12080 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 35321-12090 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 35321-12100 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 35321-12110 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 35322-12060 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 35322-12070 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 35322-12080 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 35322-12090 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 35322-12100 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 35370-12040 |
Shaft Assy, Stator |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 35616-32010 |
Washer, Clutch Drum Thrust (For Stator Shaft) |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 35617-32011 |
Ring, Clutch Drum Oil Seal |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 35789-12080 |
Race, Thrust Bearing (For Stator Shaft) |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 35789-32020 |
Race, Thrust Bearing (For Stator Shaft) |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 35789-32030 |
Race, Thrust Bearing (For Stator Shaft) |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 90105-08198 |
Bolt (For Front Oil Pump Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 90109-08113 |
Bolt(For Drive Plate & Torque Converter Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 90109-10037 |
Bolt(For Drive Plate & Torque Converter Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 90119-06559 |
Bolt (For Stator Shaft) |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 90119-06808 |
Bolt (For Stator Shaft) |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 90119-08498 |
Bolt(For Drive Plate & Torque Converter Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 90301-99024 |
Ring, O (For Front Oil Pump Body) |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
| 90311-38020 |
Seal, Oil (For Front Oil Pump) |
Torque Converter, Front Oil Pump & Chain (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L,A245E (9505- )ATM) |
