Search › Model › CE113

CE113

Toyota COROLLA · 1998 · 3,901 parts · 192 categories

3,901 items

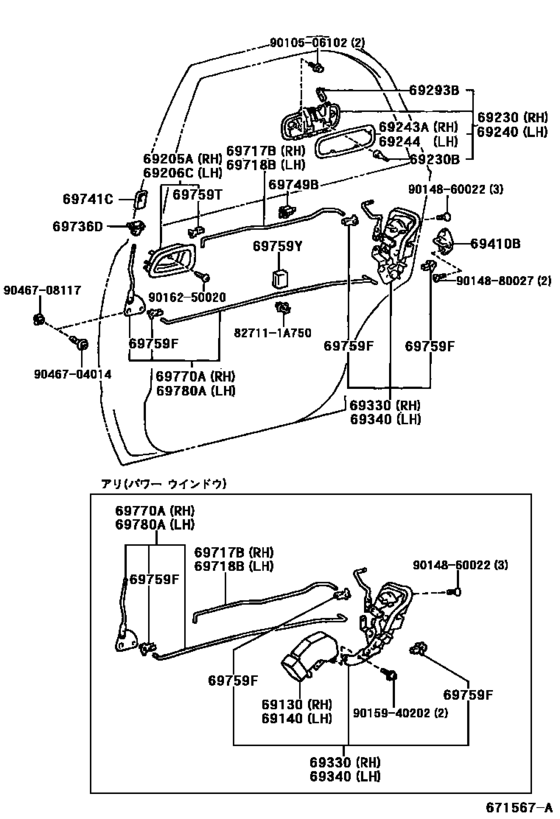

Rear Door Lock & Handle ([04.1997 - ] (9704- )) 58

#	OEM	Part name
69130	69130-12010	Actuator Assy, Rear Door Lock, Rh
69140	69140-12010	Actuator Assy, Rear Door Lock, Lh
69205	69207-12030-B1	Handle Sub-Assy, Rear Door Inside, Rh
69205	69205-12180-B1	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-12180-B0	Handle Sub-Assy, Front Door Inside, Rh
69206	69208-12030-B1	Handle Sub-Assy, Rear Door Inside, Lh
69206	69206-12180-B1	Handle Sub-Assy, Front Door Inside, Lh
69230	69230-12230-A0	Handle Assy, Rear Door Outside, Rh
69230	69230-12230-B0	Handle Assy, Rear Door Outside, Rh
69230	69230-12230-B1	Handle Assy, Rear Door Outside, Rh
69230	69230-12230-B3	Handle Assy, Rear Door Outside, Rh
69230	69230-12230-B5	Handle Assy, Rear Door Outside, Rh
69230	69230-12230-G0	Handle Assy, Rear Door Outside, Rh
69230	69230-12230-J1	Handle Assy, Rear Door Outside, Rh
69230	69230-44010	Handle Assy, Rear Door Outside, Rh (Chrome)
69230	90541-04018	Cushion(For Front Door Inside Handle)
69240	69240-12230-A0	Handle Assy, Rear Door Outside, Lh
69240	69240-12230-B0	Handle Assy, Rear Door Outside, Lh
69240	69240-12230-B1	Handle Assy, Rear Door Outside, Lh
69240	69240-12230-B3	Handle Assy, Rear Door Outside, Lh
69240	69240-12230-B5	Handle Assy, Rear Door Outside, Lh
69240	69240-12230-G0	Handle Assy, Rear Door Outside, Lh
69240	69240-12230-J1	Handle Assy, Rear Door Outside, Lh
69240	69240-44010	Handle Assy, Rear Door Outside, Lh (Chrome)
69243	69243-12020	Pad, Rear Door Outside Handle, Rh
69244	69244-12020	Pad, Rear Door Outside Handle, Lh
69293	69293-12030	Snap, Front Door Outside Handle
69293	69293-12040	Snap, Front Door Outside Handle
69330	69305-12190	Lock Assy, Rear Door, Rh
69330	69305-12200	Lock Assy, Rear Door, Rh
69340	69306-12170	Lock Assy, Rear Door, Lh
69340	69306-12180	Lock Assy, Rear Door, Lh
69410	69410-87001	Plate Assy, Front Door Lock Striker
69410	69410-AA020	Plate Assy, Front Door Lock Striker
69717	69713-12090	Link, Rear Door Lock Remote Control, Rh
69718	69714-12100	Link, Rear Door Lock Remote Control, Lh
69736	69736-12130	Guide, Front Door Locking Link
69741	69741-12040-B3	Knob, Front Door Lock Control
69749	69749-12070	Clamp, Front Door Lock Link
69759	69759-20020	Snap, Door Inside Handle Rod
69759	69759-20030	Snap, Door Inside Handle Rod
69759	69759-20040	Snap, Auxiliary Catch Release Lever Control Link
69759	69759-20050	Snap(For Rear Door Lock)
69759	69759-22040	Snap, Door Inside Handle Rod(For Front Door)
69759	69759-22050	Snap, Door Inside Handle Rod(For Front Door)
69759	69759-20390	Silencer, Front Door Lock Link
69770	69770-12110	Link Assy, Rear Door Inside Locking, Rh
69780	69780-12110	Link Assy, Rear Door Inside Locking, Lh
827111	82711-1A750	Clamp, No.1(For Back Door Lock Control Cable)
9010506102	90105-06102	Bolt, Flange
9010506102	90105-06260	BOLT, WASHER BASED
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9014880027	90148-80027	Screw Hex Lobular
9015940202	90159-40202	SCREW WWASHER
9016250020	90162-50020	SCREW, OVAL COUNTERS
9046704014	90467-04014	Clamp, Rear Door Lock Link
9046708117	90467-08117	Clamp, Rear Door Lock

OEM	Part name	Category
69130-12010	Actuator Assy, Rear Door Lock, Rh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69140-12010	Actuator Assy, Rear Door Lock, Lh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69205-12180-B0	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69205-12180-B1	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69206-12180-B1	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69207-12030-B1	Handle Sub-Assy, Rear Door Inside, Rh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69208-12030-B1	Handle Sub-Assy, Rear Door Inside, Lh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69230-12230-A0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69230-12230-B0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69230-12230-B1	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69230-12230-B3	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69230-12230-B5	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69230-12230-G0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69230-12230-J1	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69230-44010	Handle Assy, Rear Door Outside, Rh (Chrome)	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69240-12230-A0	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69240-12230-B0	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69240-12230-B1	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69240-12230-B3	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69240-12230-B5	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69240-12230-G0	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69240-12230-J1	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69240-44010	Handle Assy, Rear Door Outside, Lh (Chrome)	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69243-12020	Pad, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69244-12020	Pad, Rear Door Outside Handle, Lh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69293-12030	Snap, Front Door Outside Handle	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69293-12040	Snap, Front Door Outside Handle	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69305-12190	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69305-12200	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69306-12170	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69306-12180	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69410-87001	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69410-AA020	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69713-12090	Link, Rear Door Lock Remote Control, Rh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69714-12100	Link, Rear Door Lock Remote Control, Lh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69736-12130	Guide, Front Door Locking Link	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69741-12040-B3	Knob, Front Door Lock Control	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69749-12070	Clamp, Front Door Lock Link	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69759-20020	Snap, Door Inside Handle Rod	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69759-20030	Snap, Door Inside Handle Rod	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69759-20040	Snap, Auxiliary Catch Release Lever Control Link	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69759-20050	Snap(For Rear Door Lock)	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69759-20390	Silencer, Front Door Lock Link	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69759-22040	Snap, Door Inside Handle Rod(For Front Door)	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69759-22050	Snap, Door Inside Handle Rod(For Front Door)	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69770-12110	Link Assy, Rear Door Inside Locking, Rh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
69780-12110	Link Assy, Rear Door Inside Locking, Lh	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
82711-1A750	Clamp, No.1(For Back Door Lock Control Cable)	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
90105-06102	Bolt, Flange	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
90105-06260	BOLT, WASHER BASED	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
90148-60022	BOLT	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
90148-80027	Screw Hex Lobular	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
90148-A0005	Hexalobular Screw	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
90159-40202	SCREW WWASHER	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
90162-50020	SCREW, OVAL COUNTERS	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
90467-04014	Clamp, Rear Door Lock Link	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
90467-08117	Clamp, Rear Door Lock	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
90541-04018	Cushion(For Front Door Inside Handle)	Rear Door Lock & Handle ([04.1997 - ] (9704- ))
