Search › Model › CE113
CE113

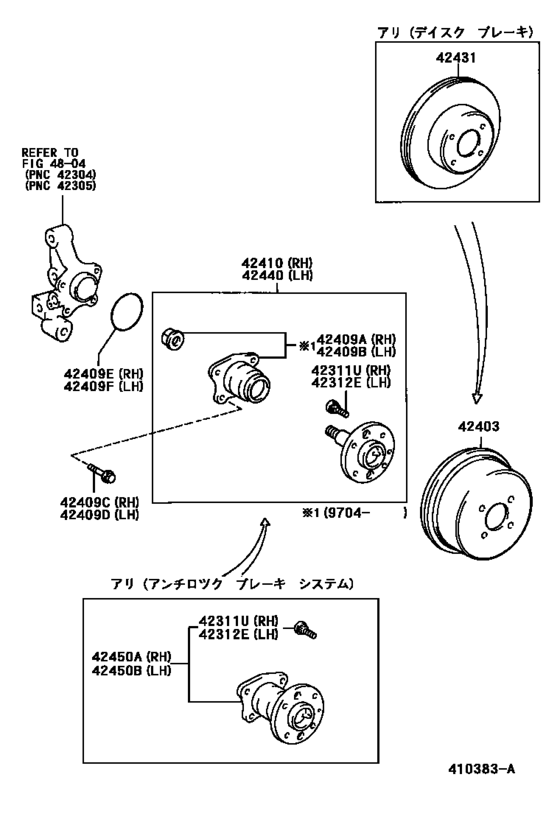

Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE110,111,CE110,113,EE111) 6
| # | OEM | Part name |
|---|---|---|
| 42311 | 90942-02047 | Bolt, Hub |
| 42403 | 42431-20250 | Drum Sub-Assy, Rear Brake |
| 42409 | 42409-19015 | Bearing Sub-Assy, Rear Axle |
| 42409 | 90105-10404 | Bolt (For Rear Axle Carrier Rh) |
| 42409 | 90301-61002 | Ring, O (For Axle Bearing) |
| 42450 | 42450-12030 | Hub & Bearing Assy, Rear Axle, Rh |
| OEM | Part name | Category |
|---|---|---|
| 42409-19015 | Bearing Sub-Assy, Rear Axle | Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE110,111,CE110,113,EE111) |
| 42431-20250 | Drum Sub-Assy, Rear Brake | Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE110,111,CE110,113,EE111) |
| 42450-12030 | Hub & Bearing Assy, Rear Axle, Rh | Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE110,111,CE110,113,EE111) |
| 90105-10404 | Bolt (For Rear Axle Carrier Rh) | Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE110,111,CE110,113,EE111) |
| 90301-61002 | Ring, O (For Axle Bearing) | Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE110,111,CE110,113,EE111) |
| 90942-02047 | Bolt, Hub | Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE110,111,CE110,113,EE111) |
