CE113

Toyota COROLLA · 1998 · 3,901 parts · 192 categories

← Back to categories

3,901 items

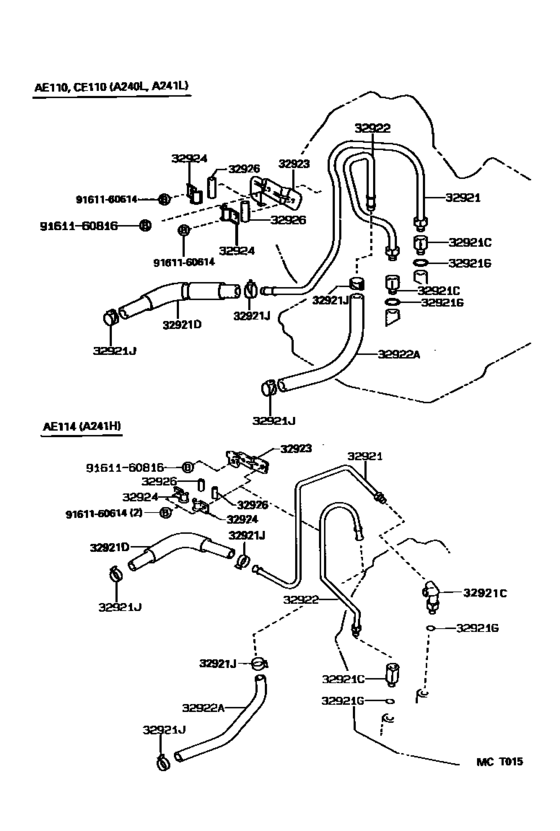

Oil Cooler & Tube (Atm) ([05.1995 - ] A240L,A241H,A241L (9505- )AE110,114,CE110,113..4FC) 17

#	OEM	Part name
32921	32921-12301	Tube, Oil Cooler Inlet, No.1
32921	32901-12030	Union(For Oil Cooler Tube)
32921	90404-14007	Union(For Oil Cooler Tube)
32921	32941-12210	Hose(For Oil Cooler Inlet)
32921	90301-10189	Ring, O(For Oil Cooler Tube Union)
32921	90467-13039	Clamp, Hose
32921	96135-51300	Clamp, Hose
32922	32922-12320	Tube, Oil Cooler Outlet, No.1
32922	90445-15042	Hose(For Oil Cooler Inlet)
32923	32923-12210	Clamp, Automatic Transmission Oil Cooler Tube
32924	90462-10082	Clamp, Automatic Transmission Oil Cooler Tube
32926	32926-10010	Cushion, Oil Cooler Tube(Atm)
32926	32926-22010	Cushion, Oil Cooler Tube(Atm)
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt

OEM	Part name	Category
32901-12030	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([05.1995 - ] A240L,A241H,A241L (9505- )AE110,114,CE110,113..4FC)
32921-12301	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([05.1995 - ] A240L,A241H,A241L (9505- )AE110,114,CE110,113..4FC)
32922-12320	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([05.1995 - ] A240L,A241H,A241L (9505- )AE110,114,CE110,113..4FC)
32923-12210	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([05.1995 - ] A240L,A241H,A241L (9505- )AE110,114,CE110,113..4FC)
32926-10010	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([05.1995 - ] A240L,A241H,A241L (9505- )AE110,114,CE110,113..4FC)
32926-22010	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([05.1995 - ] A240L,A241H,A241L (9505- )AE110,114,CE110,113..4FC)
32941-12210	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([05.1995 - ] A240L,A241H,A241L (9505- )AE110,114,CE110,113..4FC)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([05.1995 - ] A240L,A241H,A241L (9505- )AE110,114,CE110,113..4FC)
90404-14007	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([05.1995 - ] A240L,A241H,A241L (9505- )AE110,114,CE110,113..4FC)
90445-15042	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([05.1995 - ] A240L,A241H,A241L (9505- )AE110,114,CE110,113..4FC)
90462-10082	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([05.1995 - ] A240L,A241H,A241L (9505- )AE110,114,CE110,113..4FC)
90467-13039	Clamp, Hose	Oil Cooler & Tube (Atm) ([05.1995 - ] A240L,A241H,A241L (9505- )AE110,114,CE110,113..4FC)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Oil Cooler & Tube (Atm) ([05.1995 - ] A240L,A241H,A241L (9505- )AE110,114,CE110,113..4FC)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Oil Cooler & Tube (Atm) ([05.1995 - ] A240L,A241H,A241L (9505- )AE110,114,CE110,113..4FC)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Oil Cooler & Tube (Atm) ([05.1995 - ] A240L,A241H,A241L (9505- )AE110,114,CE110,113..4FC)
91611-B0816	Bolt	Oil Cooler & Tube (Atm) ([05.1995 - ] A240L,A241H,A241L (9505- )AE110,114,CE110,113..4FC)
96135-51300	Clamp, Hose	Oil Cooler & Tube (Atm) ([05.1995 - ] A240L,A241H,A241L (9505- )AE110,114,CE110,113..4FC)
