CE113

Toyota COROLLA · 1998 · 3,901 parts · 192 categories

3,901 items

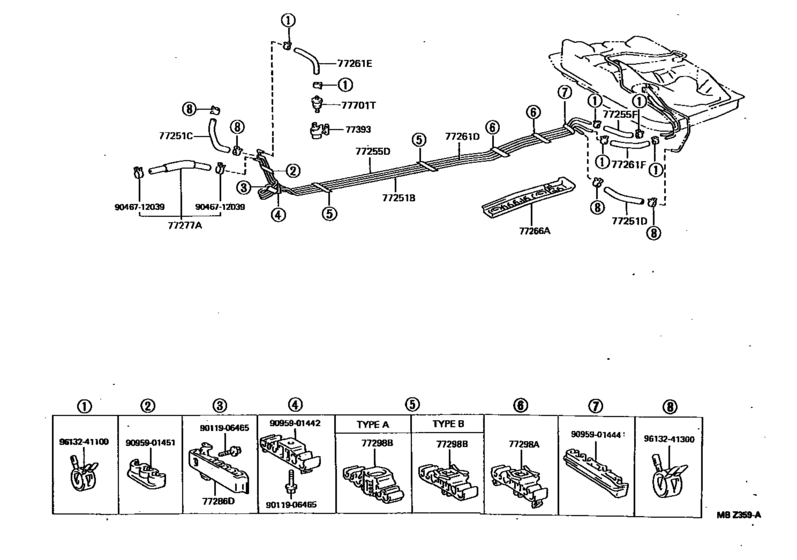

Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113) 24

#	OEM	Part name
77251	77251-12530	Tube, Fuel Main
77251	77251-12630	Tube, Fuel Main
77251	95333-08020	Hose, Lpg Injector
77251	95337-08020	Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77255	77255-12470	Tube, Fuel Return
77255	95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)
77255	95337-06020	Hose, Differential Pressure Control
77261	77261-12240	Tube, Fuel Tank To Canister
77266	77267-12130	Protector, Fuel Tube, No.1
77286	77286-12040	Clamp, Fuel Tube W/grommet, No.2
77298	77298-12030	Clamp, Fuel Tube, No.1
77298	77298-12040	Clamp, Fuel Tube, No.4
77298	77298-12050	Clamp, Fuel Tube, No.4
77393	77393-12010	Protector, Check Valve
77701	90917-10082	Hose, Fuel, No.1 (For Breather Valve)
9011906465	90119-06465	BOLT
9046712039	90467-12039	Clip, No.1(For Idle-Up Hose)
9046712039	96132-51100	Clip (For Hose)
9095901442	90959-01442	CLAMP
9095901444	90959-01444	New Genuine Part
9095901451	90959-01451	New Genuine Part
9613241100	96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241300	96132-41300	Clip, No.4(For Idle-Up Hose)
9613241300	96132-51300	Clip(For Ventilation Hose No.2)

OEM	Part name	Category
77251-12530	Tube, Fuel Main	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
77251-12630	Tube, Fuel Main	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
77255-12470	Tube, Fuel Return	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
77261-12240	Tube, Fuel Tank To Canister	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
77267-12130	Protector, Fuel Tube, No.1	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
77286-12040	Clamp, Fuel Tube W/grommet, No.2	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
77298-12030	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
77298-12040	Clamp, Fuel Tube, No.4	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
77298-12050	Clamp, Fuel Tube, No.4	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
77393-12010	Protector, Check Valve	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
90119-06465	BOLT	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
90467-12039	Clip, No.1(For Idle-Up Hose)	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
90917-10082	Hose, Fuel, No.1 (For Breather Valve)	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
90959-01442	CLAMP	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
90959-01444	New Genuine Part	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
90959-01451	New Genuine Part	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
95333-08020	Hose, Lpg Injector	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
95337-06020	Hose, Differential Pressure Control	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
95337-08020	Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
96132-41300	Clip, No.4(For Idle-Up Hose)	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
96132-51300	Clip(For Ventilation Hose No.2)	Fuel Tank & Tube ([05.1995 - ] (9505- )CE110,113)
