CE113

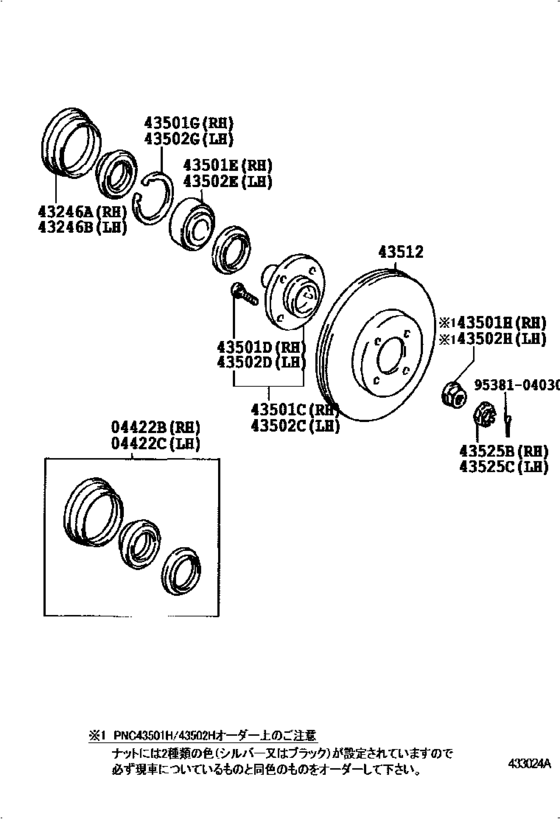

Front Axle Hub ([05.1995 - ] (9505- )) 12
| # | OEM | Part name |
|---|---|---|
| 4422 | 04422-12100 | Seal Kit, Front Axle Oil, Rh |
| 43246 | 43246-12020 | Deflector, Front Wheel Bearing Dust, No.1 |
| 43501 | 43502-12090 | Hub Sub-Assy, Front Axle, Rh |
| 43501 | 90942-02049 | Bolt, Hub |
| 43501 | 90942-02082 | Bolt, Hub |
| 43501 | 90363-38006 | Bearing (For Front Axle Hub) |
| 43501 | 90521-77001 | Ring, Hole Snap (For Front Axle Hub) |
| 43501 | 90178-22001 | Nut (For Axle Shaft) |
| 43501 | 90179-22020 | Nut (For Rear Axle Shaft) |
| 43512 | 43512-12580 | Disc, Front |
| 43525 | 43525-20030 | Cap, Front Wheel Adjusting Lock |
| 9538104030 | 95381-04030 | PIN |
| OEM | Part name | Category |
|---|---|---|
| 04422-12100 | Seal Kit, Front Axle Oil, Rh | Front Axle Hub ([05.1995 - ] (9505- )) |
| 43246-12020 | Deflector, Front Wheel Bearing Dust, No.1 | Front Axle Hub ([05.1995 - ] (9505- )) |
| 43502-12090 | Hub Sub-Assy, Front Axle, Rh | Front Axle Hub ([05.1995 - ] (9505- )) |
| 43512-12580 | Disc, Front | Front Axle Hub ([05.1995 - ] (9505- )) |
| 43525-20030 | Cap, Front Wheel Adjusting Lock | Front Axle Hub ([05.1995 - ] (9505- )) |
| 90178-22001 | Nut (For Axle Shaft) | Front Axle Hub ([05.1995 - ] (9505- )) |
| 90179-22020 | Nut (For Rear Axle Shaft) | Front Axle Hub ([05.1995 - ] (9505- )) |
| 90363-38006 | Bearing (For Front Axle Hub) | Front Axle Hub ([05.1995 - ] (9505- )) |
| 90521-77001 | Ring, Hole Snap (For Front Axle Hub) | Front Axle Hub ([05.1995 - ] (9505- )) |
| 90942-02049 | Bolt, Hub | Front Axle Hub ([05.1995 - ] (9505- )) |
| 90942-02082 | Bolt, Hub | Front Axle Hub ([05.1995 - ] (9505- )) |
| 95381-04030 | PIN | Front Axle Hub ([05.1995 - ] (9505- )) |
