CE110

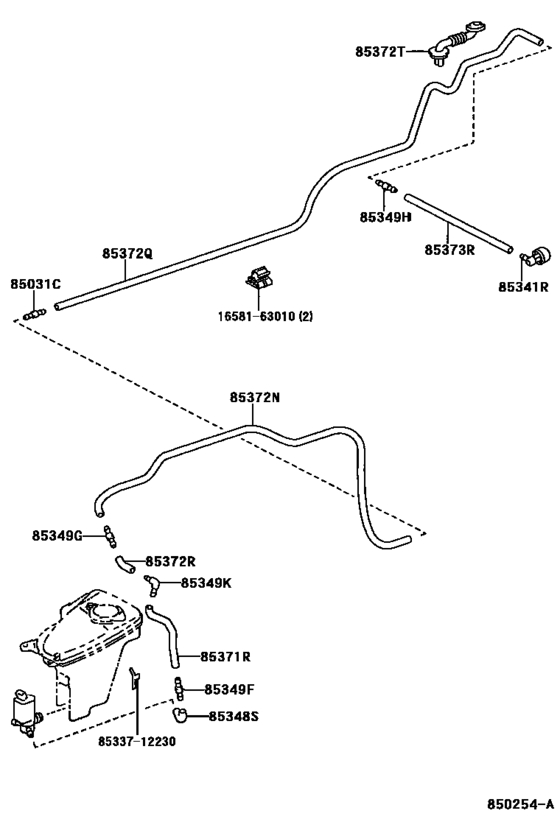

Rear Washer ([04.1997 - ] (9704- )WG) 13
| # | OEM | Part name |
|---|---|---|
| 85031 | 85375-12520 | Valve Sub-Assy, Washer |
| 85341 | 85395-13020 | Nozzle Assy, Washer |
| 85348 | 85336-12230 | Joint, Windshield Washer Elbow, No.1 |
| 85349 | 85375-10260 | Joint, Windshield Washer Hose, No.1 |
| 85349 | 85349-89122 | Valve Sub-Assy, Washer |
| 85349 | 85317-12230 | Joint, Windshield Washer Elbow, No.2 |
| 85371 | 90446-07001 | Hose, Windshield Washer (From Motor To Joint) |
| 85372 | 90099-33595 | Hose, Rear Washer (From Joint To Joint), No.1 |
| 85372 | 90099-33080 | Hose, Windshield Washer (From Motor To Joint) |
| 85372 | 85372-12020 | Grommet, Washer |
| 85373 | 90099-33299 | Joint, Windshield Washer Elbow, No.2 |
| 1658163010 | 16581-63010 | Clamp, Hose(for Water Hose) |
| 8533712230 | 85337-12230 | Case, Level Warning Switch |
| OEM | Part name | Category |
|---|---|---|
| 16581-63010 | Clamp, Hose(for Water Hose) | Rear Washer ([04.1997 - ] (9704- )WG) |
| 85317-12230 | Joint, Windshield Washer Elbow, No.2 | Rear Washer ([04.1997 - ] (9704- )WG) |
| 85336-12230 | Joint, Windshield Washer Elbow, No.1 | Rear Washer ([04.1997 - ] (9704- )WG) |
| 85337-12230 | Case, Level Warning Switch | Rear Washer ([04.1997 - ] (9704- )WG) |
| 85349-89122 | Valve Sub-Assy, Washer | Rear Washer ([04.1997 - ] (9704- )WG) |
| 85372-12020 | Grommet, Washer | Rear Washer ([04.1997 - ] (9704- )WG) |
| 85375-10260 | Joint, Windshield Washer Hose, No.1 | Rear Washer ([04.1997 - ] (9704- )WG) |
| 85375-12520 | Valve Sub-Assy, Washer | Rear Washer ([04.1997 - ] (9704- )WG) |
| 85395-13020 | Nozzle Assy, Washer | Rear Washer ([04.1997 - ] (9704- )WG) |
| 90099-33080 | Hose, Windshield Washer (From Motor To Joint) | Rear Washer ([04.1997 - ] (9704- )WG) |
| 90099-33299 | Joint, Windshield Washer Elbow, No.2 | Rear Washer ([04.1997 - ] (9704- )WG) |
| 90099-33595 | Hose, Rear Washer (From Joint To Joint), No.1 | Rear Washer ([04.1997 - ] (9704- )WG) |
| 90446-07001 | Hose, Windshield Washer (From Motor To Joint) | Rear Washer ([04.1997 - ] (9704- )WG) |
