CE110

Toyota COROLLA · 1995 · 5,083 parts · 368 categories

5,083 items

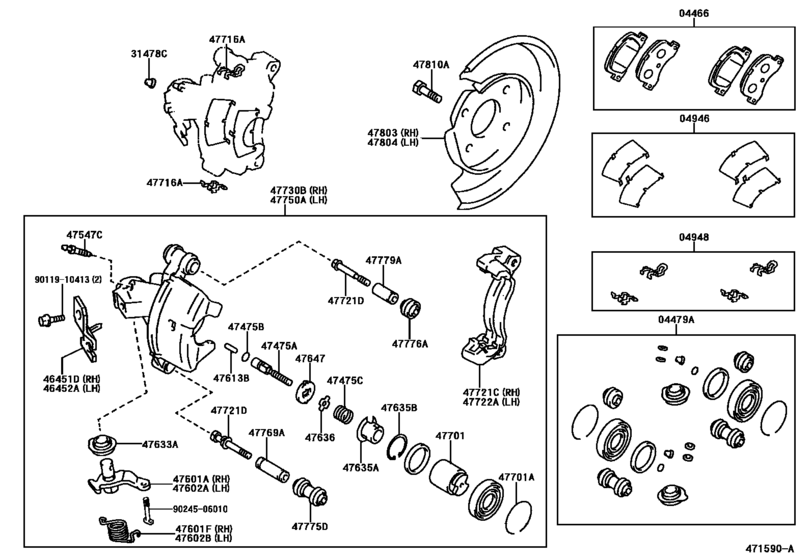

Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #) 38

#	OEM	Part name
4466	04466-12040	Pad Kit, Disc Brake, Rear
4479	04479-12190	Cylinder Kit, Disc Brake, Rear
4946	04946-12010	Shim Kit, Anti Squeal(For Rear Disc Brake)
4948	04948-12020	Fitting Kit, Disc Brake, Rear
31478	31478-30010	Bleeder Plug Cap
46451	46451-12030	Bracket, Parking Brake Cable Support, Rh
46452	46452-12020	Bracket, Parking Brake Cable Support, Lh
47475	47475-12030	Bolt, Pad Adjusting(For Rear Disc Brake)
47475	90301-09007	Ring, O(For Rear Disc Brake Pad Adjusting Bolt)
47475	90501-23051	Spring, Compression(For Pad Adjusting Bolt)
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47601	47601-12030	Crank Sub-Assy, Parking Brake, Rh
47601	90508-32021	Spring, Torsion(For Parking Brake Crank Rh)
47602	47602-12030	Crank Sub-Assy, Parking Brake, Lh
47602	90508-32020	Spring, Torsion(For Parking Brake Crank Rh)
47613	47613-12020	Strut, Parking Brake(For Rear Brake)
47633	47633-12010	Boot, Parking Brake Crank
47635	47635-12020	Retainer, Adjusting Bolt Spring(For Rear Disc Brake)
47635	90521-32002	Ring(For Rear Brake Adjusting Bolt Spring Retainer)
47636	47636-12010	Plate, Adjusting Bolt Spring(For Rear Disc Brake)
47647	47647-12020	Stopper, Automatic Adjust Bolt(For Rear Disc Brake)
47701	47701-12030	Piston Sub-Assy, Rear Disc Brake
47701	90522-43004	Ring, Set(For Disc Brake Piston, Rear)
47716	47716-12020	Plate, Pad Support, No.1(For Rear Disc Brake)
47721	47721-12190	Mounting, Rear Disc Brake Cylinder, Rh
47721	90109-08098	Bolt(For Rear Disc Brake Cylinder Mouting)
47721	90119-08431	Bolt, Hexagon(For Front Disc Brake Torque Plate)
47730	47730-12460	Cylinder Assy, Rear Disc Brake, Rh
47750	47750-12460	Cylinder Assy, Disc Brake, Rear Lh
47769	47769-28010	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47775	47775-14010	Boot, Bush Dust(For Front Disc Brake)
47776	47776-12020	Boot, Main Pin(For Rear Disc Brake)
47779	47779-12010	Bush, Cylinder Slide, No.2(For Rear Disc Brake)
47803	47803-12060	Cover Sub-Assy, Disc Brake Dust, Rear Rh
47804	47804-12060	Cover Sub-Assy, Disc Brake Dust, Rear Lh
47810	90105-10167	Bolt, Hexagon(For Rear Caliper)
9011910413	90119-10413	New Genuine Part
9024506010	90245-06010	New Genuine Part

OEM	Part name	Category
04466-12040	Pad Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
04479-12190	Cylinder Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
04946-12010	Shim Kit, Anti Squeal(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
04948-12020	Fitting Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
31478-30010	Bleeder Plug Cap	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
46451-12030	Bracket, Parking Brake Cable Support, Rh	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
46452-12020	Bracket, Parking Brake Cable Support, Lh	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
47475-12030	Bolt, Pad Adjusting(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
47547-20010	Plug, Bleeder(For Release Cylinder)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
47601-12030	Crank Sub-Assy, Parking Brake, Rh	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
47602-12030	Crank Sub-Assy, Parking Brake, Lh	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
47613-12020	Strut, Parking Brake(For Rear Brake)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
47633-12010	Boot, Parking Brake Crank	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
47635-12020	Retainer, Adjusting Bolt Spring(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
47636-12010	Plate, Adjusting Bolt Spring(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
47647-12020	Stopper, Automatic Adjust Bolt(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
47701-12030	Piston Sub-Assy, Rear Disc Brake	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
47716-12020	Plate, Pad Support, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
47721-12190	Mounting, Rear Disc Brake Cylinder, Rh	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
47730-12460	Cylinder Assy, Rear Disc Brake, Rh	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
47750-12460	Cylinder Assy, Disc Brake, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
47769-28010	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
47775-14010	Boot, Bush Dust(For Front Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
47776-12020	Boot, Main Pin(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
47779-12010	Bush, Cylinder Slide, No.2(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
47803-12060	Cover Sub-Assy, Disc Brake Dust, Rear Rh	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
47804-12060	Cover Sub-Assy, Disc Brake Dust, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
90105-10167	Bolt, Hexagon(For Rear Caliper)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
90109-08098	Bolt(For Rear Disc Brake Cylinder Mouting)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
90119-08431	Bolt, Hexagon(For Front Disc Brake Torque Plate)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
90119-10413	New Genuine Part	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
90245-06010	New Genuine Part	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
90301-09007	Ring, O(For Rear Disc Brake Pad Adjusting Bolt)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
90501-23051	Spring, Compression(For Pad Adjusting Bolt)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
90508-32020	Spring, Torsion(For Parking Brake Crank Rh)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
90508-32021	Spring, Torsion(For Parking Brake Crank Rh)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
90521-32002	Ring(For Rear Brake Adjusting Bolt Spring Retainer)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
90522-43004	Ring, Set(For Disc Brake Piston, Rear)	Rear Disc Brake Caliper & Dust Cover ([08.1998 - ] (9808- )AE111,CDE110,CE110,EE111,WZE110,ZZE11 #)
