CE110

Toyota COROLLA · 1995 · 5,083 parts · 368 categories

← Back to categories

5,083 items

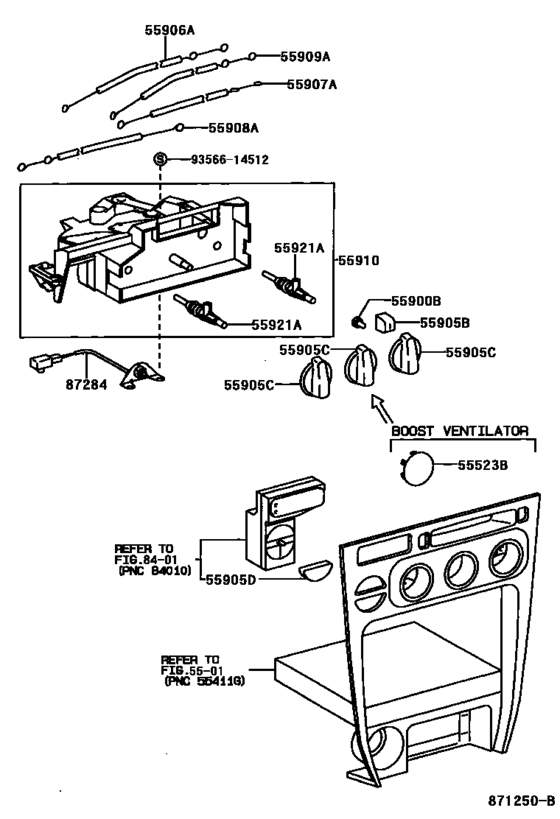

Heating & Air Conditioning - Control & Air Duct ([04.1997 - ] LEVER TYPE (9704- )) 16

#	OEM	Part name
55523	55523-12100-B0	Cover, Heater Control Opening
55900	90981-11014	Bulb, Position Indicator Lamp
55905	55905-12450-B1	Knob, Heater Control, No.2
55905	55905-12440-B1	Knob, Heater Control, No.3
55905	55905-12490-B1	Knob Sub-Assy, Control
55906	55906-12390	Cable Sub-Assy, Defroster Damper Control
55907	55907-12470	Cable Sub-Assy, Water Valve Control
55908	55908-12290	Cable Sub-Assy, Air Inlet Damper Control
55909	55909-12280	Cable Sub-Assy, Airmix Damper Control
55910	55910-12660	Control Assy, Heater Or Boost Ventilator
55910	55910-12670	Control Assy, Heater Or Boost Ventilator
55910	55910-12680	Control Assy, Heater Or Boost Ventilator
55921	55921-12090	Retainer, Heater Control
87284	88032-12170	Resistor Sub-Assy, Variable
9356614512	93566-14512	SCREW
9356614512	93568-54512	SCREW

OEM	Part name	Category
55523-12100-B0	Cover, Heater Control Opening	Heating & Air Conditioning - Control & Air Duct ([04.1997 - ] LEVER TYPE (9704- ))
55905-12440-B1	Knob, Heater Control, No.3	Heating & Air Conditioning - Control & Air Duct ([04.1997 - ] LEVER TYPE (9704- ))
55905-12450-B1	Knob, Heater Control, No.2	Heating & Air Conditioning - Control & Air Duct ([04.1997 - ] LEVER TYPE (9704- ))
55905-12490-B1	Knob Sub-Assy, Control	Heating & Air Conditioning - Control & Air Duct ([04.1997 - ] LEVER TYPE (9704- ))
55906-12390	Cable Sub-Assy, Defroster Damper Control	Heating & Air Conditioning - Control & Air Duct ([04.1997 - ] LEVER TYPE (9704- ))
55907-12470	Cable Sub-Assy, Water Valve Control	Heating & Air Conditioning - Control & Air Duct ([04.1997 - ] LEVER TYPE (9704- ))
55908-12290	Cable Sub-Assy, Air Inlet Damper Control	Heating & Air Conditioning - Control & Air Duct ([04.1997 - ] LEVER TYPE (9704- ))
55909-12280	Cable Sub-Assy, Airmix Damper Control	Heating & Air Conditioning - Control & Air Duct ([04.1997 - ] LEVER TYPE (9704- ))
55910-12660	Control Assy, Heater Or Boost Ventilator	Heating & Air Conditioning - Control & Air Duct ([04.1997 - ] LEVER TYPE (9704- ))
55910-12670	Control Assy, Heater Or Boost Ventilator	Heating & Air Conditioning - Control & Air Duct ([04.1997 - ] LEVER TYPE (9704- ))
55910-12680	Control Assy, Heater Or Boost Ventilator	Heating & Air Conditioning - Control & Air Duct ([04.1997 - ] LEVER TYPE (9704- ))
55921-12090	Retainer, Heater Control	Heating & Air Conditioning - Control & Air Duct ([04.1997 - ] LEVER TYPE (9704- ))
88032-12170	Resistor Sub-Assy, Variable	Heating & Air Conditioning - Control & Air Duct ([04.1997 - ] LEVER TYPE (9704- ))
90981-11014	Bulb, Position Indicator Lamp	Heating & Air Conditioning - Control & Air Duct ([04.1997 - ] LEVER TYPE (9704- ))
93566-14512	SCREW	Heating & Air Conditioning - Control & Air Duct ([04.1997 - ] LEVER TYPE (9704- ))
93568-54512	SCREW	Heating & Air Conditioning - Control & Air Duct ([04.1997 - ] LEVER TYPE (9704- ))
