Search › Model › CE110

CE110

Toyota COROLLA · 1995 · 5,083 parts · 368 categories

5,083 items

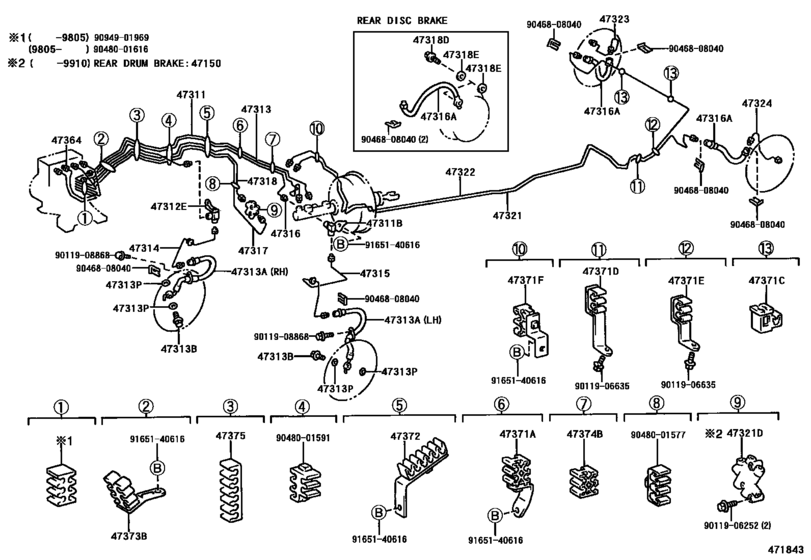

Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD) 59

#	OEM	Part name
47150	47150-12220	Valve Assy, Proportioning
47150	47150-52070	Valve Assy, Proportioning
47311	47311-12610	Tube, Front Brake, No.1
47311	47311-12630	Tube, Front Brake, No.1
47311	90412-10208	Way, No.2(For Front Brake Tube) - NO.1(FOR FRONT BRAKE TUBE)
47311	90413-10159	Way, No.1(For Front Brake Tube)
47312	90412-10207	Way, No.1(For Front Brake Tube) - NO.2(FOR FRONT BRAKE TUBE)
47313	47313-12410	Tube, Front Brake, No.3
47313	47313-12440	Tube, Front Brake, No.3
47313	90947-02910	Hose, Flexible, No.1(For Front)
47313	90947-02911	Hose, Flexible, No.1(For Front)
47313	90947-02913	Hose, Flexible, No.1(For Front)
47313	90947-02912	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-50020	Gasket(For Front Flexible Hose)
47313	90430-10074	Gasket(For Oil Pressure Regulator)
47314	47314-12350	Tube, Front Brake, No.4
47314	47314-12371	Tube, Front Brake, No.4
47315	47315-12420	Tube, Front Brake, No.5
47316	47316-12330	Tube, Front Brake, No.6
47316	90947-02921	Hose, Flexible(For Rear Brake Tube)
47316	90947-02922	Hose, Flexible(For Rear Brake Tube)
47317	47317-12180	Tube, Front Brake, No.7
47318	47318-12320	Tube, Front Brake, No.8
47321	47321-12190	Tube, Rear Brake, No.1
47321	47321-12210	Tube, Rear Brake, No.1
47321	90412-10140	Valve Assy, Proportioning
47321	90413-10205	Valve Assy, Proportioning
47322	47322-12340	Tube, Rear Brake, No.2
47322	47322-12360	Tube, Rear Brake, No.2
47323	47323-12250	Tube, Rear Brake, No.3
47324	47324-12210	Tube, Rear Brake, No.4
47364	47364-12170	Tube, Front Brake, No.13
47371	47371-12190	Clamp, Brake Tube, No.1
47371	47371-12200	Clamp, Brake Tube, No.1
47371	47371-12150	Clamp(For Clutch Master Cylinder Tube)
47371	90949-01B45	Clamp(For Clutch Master Cylinder Tube)
47371	47375-12040	Clamp, Brake Tube, No.6
47371	47375-12060	Clamp, Brake Tube, No.7
47371	47371-12160	Clamp, Brake Tube, No.9 - BRAKE TUBE, NO.10
47371	47375-12030	Clamp, Brake Tube, No.4
47372	47372-12070	Clamp, Brake Tube, No.2
47372	90461-06119	Clamp, Brake Tube, No.2
47373	47374-12030	Clamp, Brake Tube, No.4
47374	47375-35120	Clamp, Brake Tube, No.8 - BRAKE TUBE, NO.5
47375	90949-01856	Clamp, Brake Tube, No.3
9011906252	90119-06252	New Genuine Part
9011906635	90119-06635	New Genuine Part
9011908868	90119-08868	BOLT WWASHER
9046808040	90468-08040	CLIP
9048001577	90480-01577	GROMMET
9048001591	90480-01591	New Genuine Part
9048001616	90480-01616	New Genuine Part
9094901969	90949-01969	Clamp, Brake Tube, No.6
9094901969	90080-46365	Clamp, Brake Tube, No.5
9165140616	91651-40616	BOLT
9165140616	91621-60614	Bolt(For Transaxle & Engine Setting)
9165140616	90080-11395	New Genuine Part

OEM	Part name	Category
47150-12220	Valve Assy, Proportioning	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47150-52070	Valve Assy, Proportioning	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47311-12610	Tube, Front Brake, No.1	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47311-12630	Tube, Front Brake, No.1	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47313-12410	Tube, Front Brake, No.3	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47313-12440	Tube, Front Brake, No.3	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47314-12350	Tube, Front Brake, No.4	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47314-12371	Tube, Front Brake, No.4	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47315-12420	Tube, Front Brake, No.5	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47316-12330	Tube, Front Brake, No.6	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47317-12180	Tube, Front Brake, No.7	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47318-12320	Tube, Front Brake, No.8	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47321-12190	Tube, Rear Brake, No.1	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47321-12210	Tube, Rear Brake, No.1	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47322-12340	Tube, Rear Brake, No.2	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47322-12360	Tube, Rear Brake, No.2	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47323-12250	Tube, Rear Brake, No.3	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47324-12210	Tube, Rear Brake, No.4	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47364-12170	Tube, Front Brake, No.13	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47371-12150	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47371-12160	Clamp, Brake Tube, No.9 - BRAKE TUBE, NO.10	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47371-12190	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47371-12200	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47372-12070	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47374-12030	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47375-12030	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47375-12040	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47375-12060	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47375-35120	Clamp, Brake Tube, No.8 - BRAKE TUBE, NO.5	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90080-11395	New Genuine Part	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90080-46365	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90119-06252	New Genuine Part	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90119-06635	New Genuine Part	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90412-10140	Valve Assy, Proportioning	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90412-10207	Way, No.1(For Front Brake Tube) - NO.2(FOR FRONT BRAKE TUBE)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90412-10208	Way, No.2(For Front Brake Tube) - NO.1(FOR FRONT BRAKE TUBE)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90413-10159	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90413-10205	Valve Assy, Proportioning	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90461-06119	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90468-08040	CLIP	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90480-01577	GROMMET	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90480-01591	New Genuine Part	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90480-01616	New Genuine Part	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90947-02910	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90947-02911	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90947-02912	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90947-02913	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90947-02921	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90947-02922	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90949-01856	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90949-01969	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
90949-01B45	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
91621-60614	Bolt(For Transaxle & Engine Setting)	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
91651-40616	BOLT	Brake Tube & Clamp ([04.1997 - ] W(ABS) (9704- )LHD)
