Search › Model › CE104

CE104

Toyota COROLLA · 1991 · 5,838 parts · 217 categories

← Back to categories

5,838 items

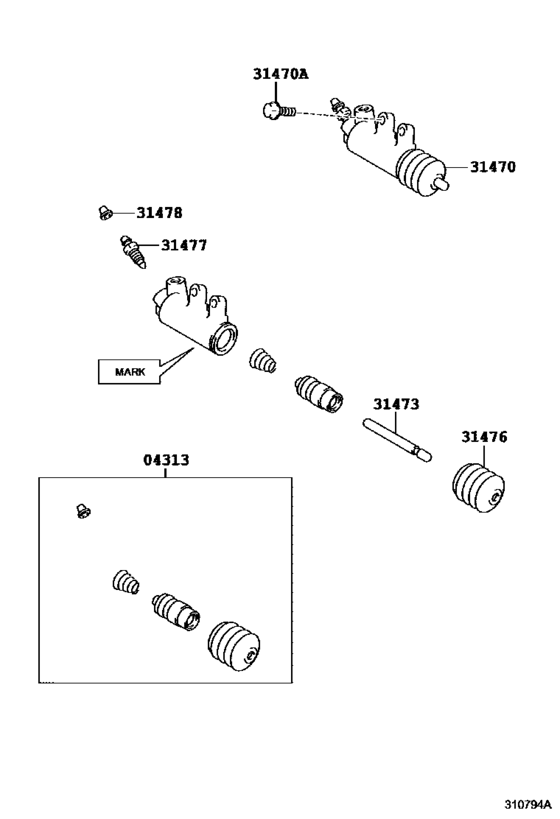

Clutch Release Cylinder ([06.1991 - ] E59F,S50,S51 (9106- )CE10#..5F) 10

#	OEM	Part name
4313	04313-12030	Cylinder Kit, Clutch Release
4313	04313-17010	Cylinder Kit, Clutch Release
31470	31470-32022	Cylinder Assy, Clutch Release
31470	31470-32023	Cylinder Assy, Clutch Release
31470	91611-60822	Bolt
31473	31473-22010	Rod, Clutch Release Cylinder Push, No.1
31473	31473-32010	Rod, Clutch Release Cylinder Push, No.1
31476	31476-22010	Boot, Clutch Release Cylinder
31477	47547-20010	Plug, Bleeder(For Release Cylinder)
31478	31478-30010	Bleeder Plug Cap

OEM	Part name	Category
04313-12030	Cylinder Kit, Clutch Release	Clutch Release Cylinder ([06.1991 - ] E59F,S50,S51 (9106- )CE10#..5F)
04313-17010	Cylinder Kit, Clutch Release	Clutch Release Cylinder ([06.1991 - ] E59F,S50,S51 (9106- )CE10#..5F)
31470-32022	Cylinder Assy, Clutch Release	Clutch Release Cylinder ([06.1991 - ] E59F,S50,S51 (9106- )CE10#..5F)
31470-32023	Cylinder Assy, Clutch Release	Clutch Release Cylinder ([06.1991 - ] E59F,S50,S51 (9106- )CE10#..5F)
31473-22010	Rod, Clutch Release Cylinder Push, No.1	Clutch Release Cylinder ([06.1991 - ] E59F,S50,S51 (9106- )CE10#..5F)
31473-32010	Rod, Clutch Release Cylinder Push, No.1	Clutch Release Cylinder ([06.1991 - ] E59F,S50,S51 (9106- )CE10#..5F)
31476-22010	Boot, Clutch Release Cylinder	Clutch Release Cylinder ([06.1991 - ] E59F,S50,S51 (9106- )CE10#..5F)
31478-30010	Bleeder Plug Cap	Clutch Release Cylinder ([06.1991 - ] E59F,S50,S51 (9106- )CE10#..5F)
47547-20010	Plug, Bleeder(For Release Cylinder)	Clutch Release Cylinder ([06.1991 - ] E59F,S50,S51 (9106- )CE10#..5F)
91611-60822	Bolt	Clutch Release Cylinder ([06.1991 - ] E59F,S50,S51 (9106- )CE10#..5F)

Source: Public OEM parts-catalog data
Variants: 2 / 3
Category: 217
Collected: 2026-08-02
